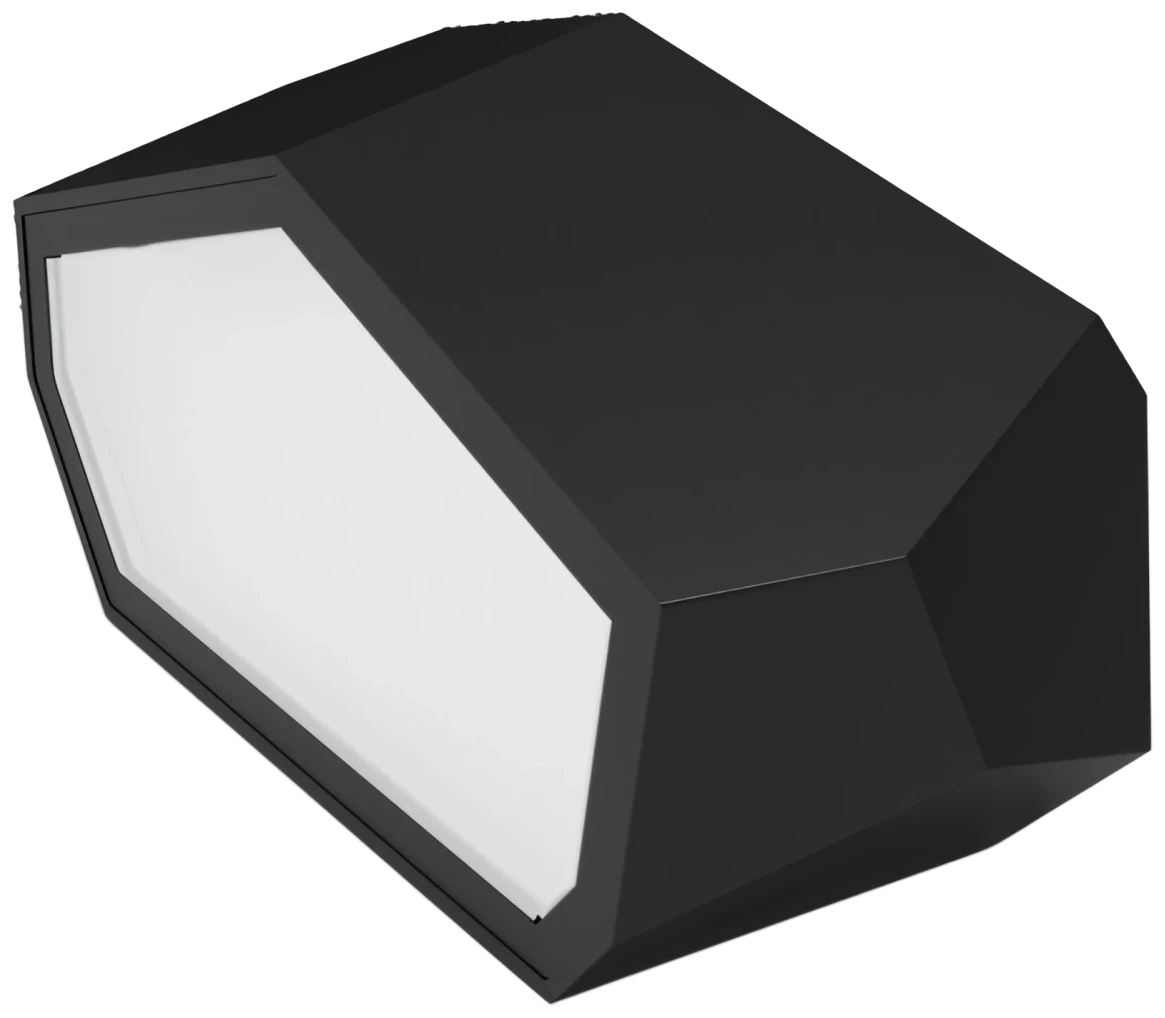

Name: Stone
Brand: DiaNoche
SKU: WA-Stone-0501

Technical specifications

Code	Watt	CRI	Voltage	Size	CCT
WA-Stone-0501	5 W	97 CRI	24 V DC	146.6 × 79.7 × 68 mm	3000, 4000 K
OUT-Stone-P01Driver, ON/OFF	—	97 CRI	100–305 V AC	—	3000, 4000 K
OUT-Stone-P02Driver, DALI	—	97 CRI	90–305 V AC	—	3000, 4000 K
OUT-Stone-P03Driver, 0–10 V/1–10 V	—	97 CRI	200–240 V AC	—	3000, 4000 K
OUT-Stone-P04Driver, triac	—	97 CRI	200–240 V AC	—	3000, 4000 K
OUT-Stone-P05Driver, DALI	—	97 CRI	100–240 V AC	—	3000, 4000 K

LED source: Citizen
Colour temperature: 3000, 4000 K
Control: On/Off, Triac, DALI
Mounting: Wall
IP rating: IP65/66/67

Photometry

WA-Stone-0501. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: estimated from catalogue data, not measured.
