Technical specifications
| Code | Watt | CRI | Voltage | Flux | Size | Beam | CCT | Cut-out | Notes |
|---|---|---|---|---|---|---|---|---|---|

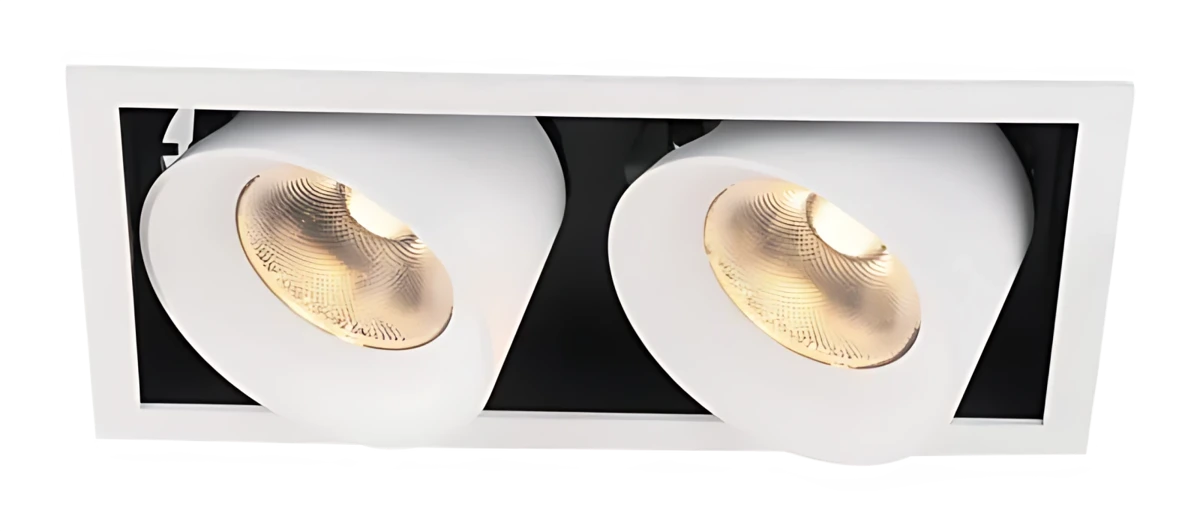

| DL13212 heads | 52 W | 97 CRI | 2 × max 37 V | 2 × 2600 lm | 105 × 193 x H104 mm | 15° 24° 36° 60° | 2700, 3000, 4000 K | Ø185 mm | 700 mA |
- LED source
- Citizen
- Colour temperature
- 2700, 3000, 4000 K
- Beam angles
- 15°, 24°, 36°, 60°
- Mounting
- Recessed
- IP rating
- IP20
- Certifications
- CE
Photometry
DL1321. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.
- Power
- 52 W
- Luminous flux
- 5,200 lm
- Efficacy
- 100 lm/W
- Peak intensity
- 67,234 cd
- Field angle (10%)
- 27.3°
- At 3 m
- 7,470 lx, Ø0.79 m
- Power
- 52 W
- Luminous flux
- 5,200 lm
- Efficacy
- 100 lm/W
- Peak intensity
- 26,432 cd
- Field angle (10%)
- 43.7°
- At 3 m
- 2,937 lx, Ø1.28 m
- Power
- 52 W
- Luminous flux
- 5,200 lm
- Efficacy
- 100 lm/W
- Peak intensity
- 11,903 cd
- Field angle (10%)
- 65.6°
- At 3 m
- 1,323 lx, Ø1.95 m
- Power
- 52 W
- Luminous flux
- 5,200 lm
- Efficacy
- 100 lm/W
- Peak intensity
- 4,474 cd
- Field angle (10%)
- 109.4°
- At 3 m
- 497 lx, Ø3.46 m
