Grill DL0042

Name: Grill DL0042
Brand: DiaNoche
SKU: DL0042

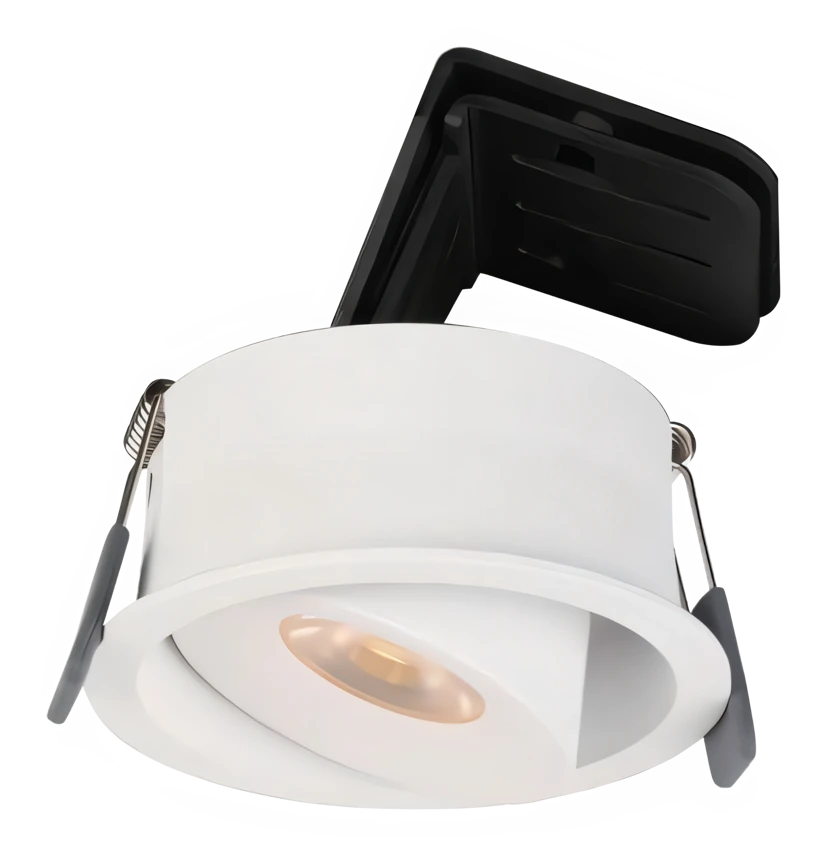

Recessed spotlight

Recessed spotlight. 13, 18, 26, 33 or 39 W. Three beam angles, 15° to 36°. 2700, 3000, 4000 K. 97 CRI.

5 models

DL00421 head, 13 W
DL00431 head, 18 W
DL00441 head, 26 W
DL00451 head, 33 W
DL11821 head, 39 W

Enquire about this product

DatasheetPDF, 443 KB

Photometric filesIES and LDT, 15 versions, calculated

DL004213 W, 15°IES LDT

DL004213 W, 24°IES LDT

DL004213 W, 36°IES LDT

DL004318 W, 15°IES LDT

DL004318 W, 24°IES LDT

DL004318 W, 36°IES LDT

DL004426 W, 15°IES LDT

DL004426 W, 24°IES LDT

DL004426 W, 36°IES LDT

DL004533 W, 15°IES LDT

DL004533 W, 24°IES LDT

DL004533 W, 36°IES LDT

DL118239 W, 15°IES LDT

DL118239 W, 24°IES LDT

DL118239 W, 36°IES LDT

Calculated files are built from the catalogue photometric data, its illuminance table or rated luminous flux, with the beam angle. Spill light is not modelled.

Technical specifications

Code	Watt	CRI	Voltage	Flux	Size	Beam	CCT	Cut-out	Notes
DL00421 head	13 W	97 CRI	max 37 V	1300 lm	125 × 125 x H117 mm	15° 24° 36°	2700, 3000, 4000 K	Ø115 mm	350 mA
DL00431 head	18 W	97 CRI	max 37 V	1800 lm	125 × 125 x H117 mm	15° 24° 36°	2700, 3000, 4000 K	Ø115 mm	500 mA
DL00441 head	26 W	97 CRI	max 37 V	2600 lm	125 × 125 x H129 mm	15° 24° 36°	2700, 3000, 4000 K	Ø115 mm	700 mA
DL00451 head	33 W	97 CRI	max 37 V	3300 lm	125 × 125 x H129 mm	15° 24° 36°	2700, 3000, 4000 K	Ø115 mm	900 mA
DL11821 head	39 W	97 CRI	max 37 V	3900 lm	125 × 125 x H129 mm	15° 24° 36°	2700, 3000, 4000 K	Ø115 mm	1050 mA

LED source: Citizen
Colour temperature: 2700, 3000, 4000 K
Beam angles: 15°, 24°, 36°
Control: DALI, 0–10 V
Mounting: Recessed
IP rating: IP20
Certifications: CE

Photometry

DL1182. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.
