Technical specifications
| Code | Watt | CRI | Voltage | Flux | Size | Beam | CCT | Cut-out | Notes |
|---|---|---|---|---|---|---|---|---|---|

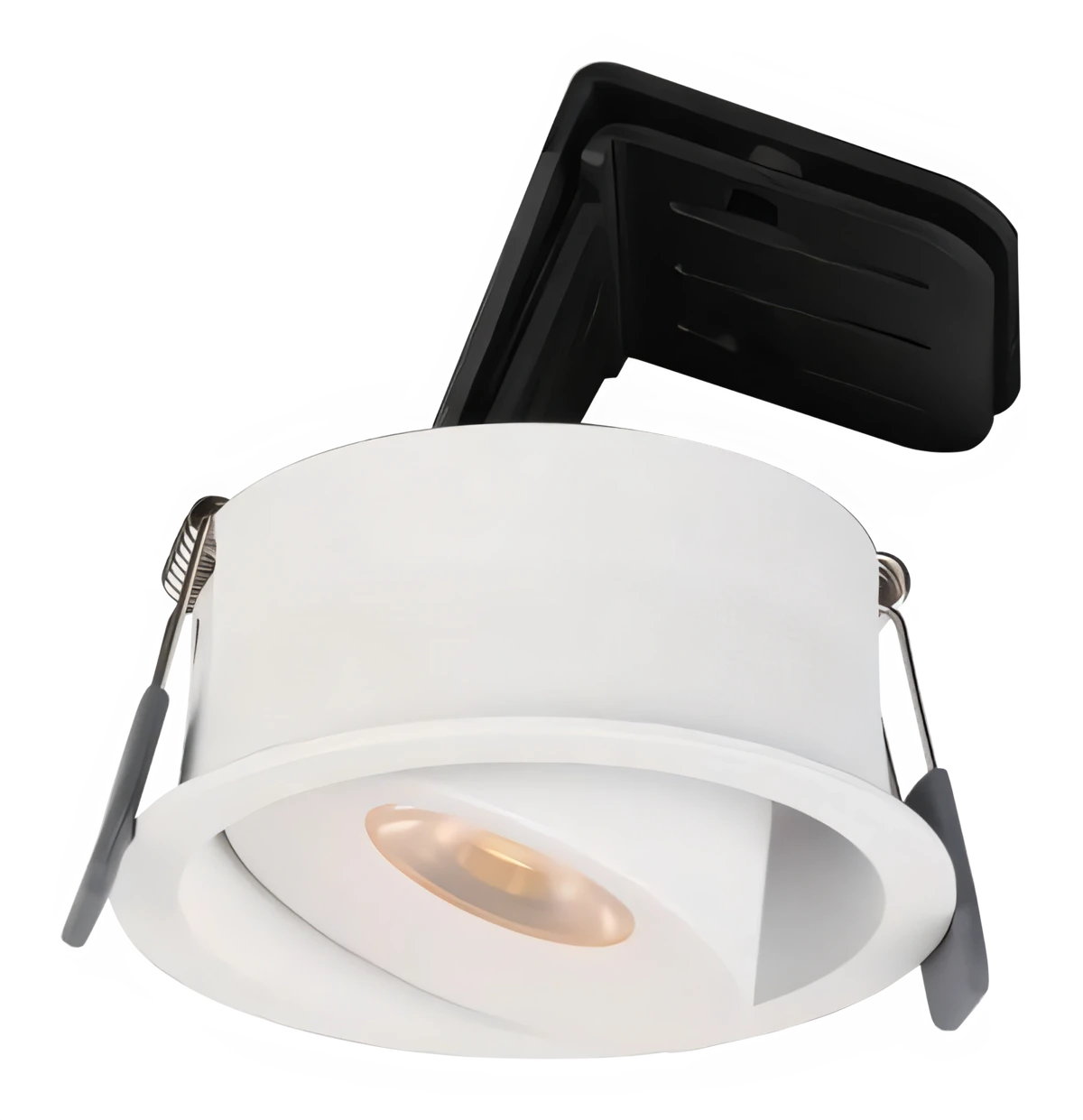

| DL0038 | 13 W | 97 CRI | max 37 V | 1300 lm | Ø125 × 117 mm | 15° 24° 36° | 2700, 3000, 4000 K | Ø116 mm | 350 mA |
| DL0039 | 18 W | 97 CRI | max 37 V | 1800 lm | Ø125 × 117 mm | 15° 24° 36° | 2700, 3000, 4000 K | Ø116 mm | 500 mA |
| DL0040 | 26 W | 97 CRI | max 37 V | 2600 lm | Ø125 × 129 mm | 15° 24° 36° | 2700, 3000, 4000 K | Ø116 mm | 700 mA |
| DL0041 | 33 W | 97 CRI | max 37 V | 3300 lm | Ø125 × 129 mm | 15° 24° 36° | 2700, 3000, 4000 K | Ø116 mm | 900 mA |
- LED source
- Citizen
- Colour temperature
- 2700, 3000, 4000 K
- Beam angles
- 15°, 24°, 36°
- Control
- DALI, 0–10 V
- Mounting
- Recessed
- IP rating
- IP20
- Certifications
- CE
Photometry
DL0041. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.
- Power
- 33 W
- Luminous flux
- 3,300 lm
- Efficacy
- 100 lm/W
- Peak intensity
- 42,668 cd
- Field angle (10%)
- 27.3°
- At 3 m
- 4,741 lx, Ø0.79 m
- Power
- 33 W
- Luminous flux
- 3,300 lm
- Efficacy
- 100 lm/W
- Peak intensity
- 16,774 cd
- Field angle (10%)
- 43.7°
- At 3 m
- 1,864 lx, Ø1.28 m
- Power
- 33 W
- Luminous flux
- 3,300 lm
- Efficacy
- 100 lm/W
- Peak intensity
- 7,554 cd
- Field angle (10%)
- 65.6°
- At 3 m
- 839 lx, Ø1.95 m
