ENIT

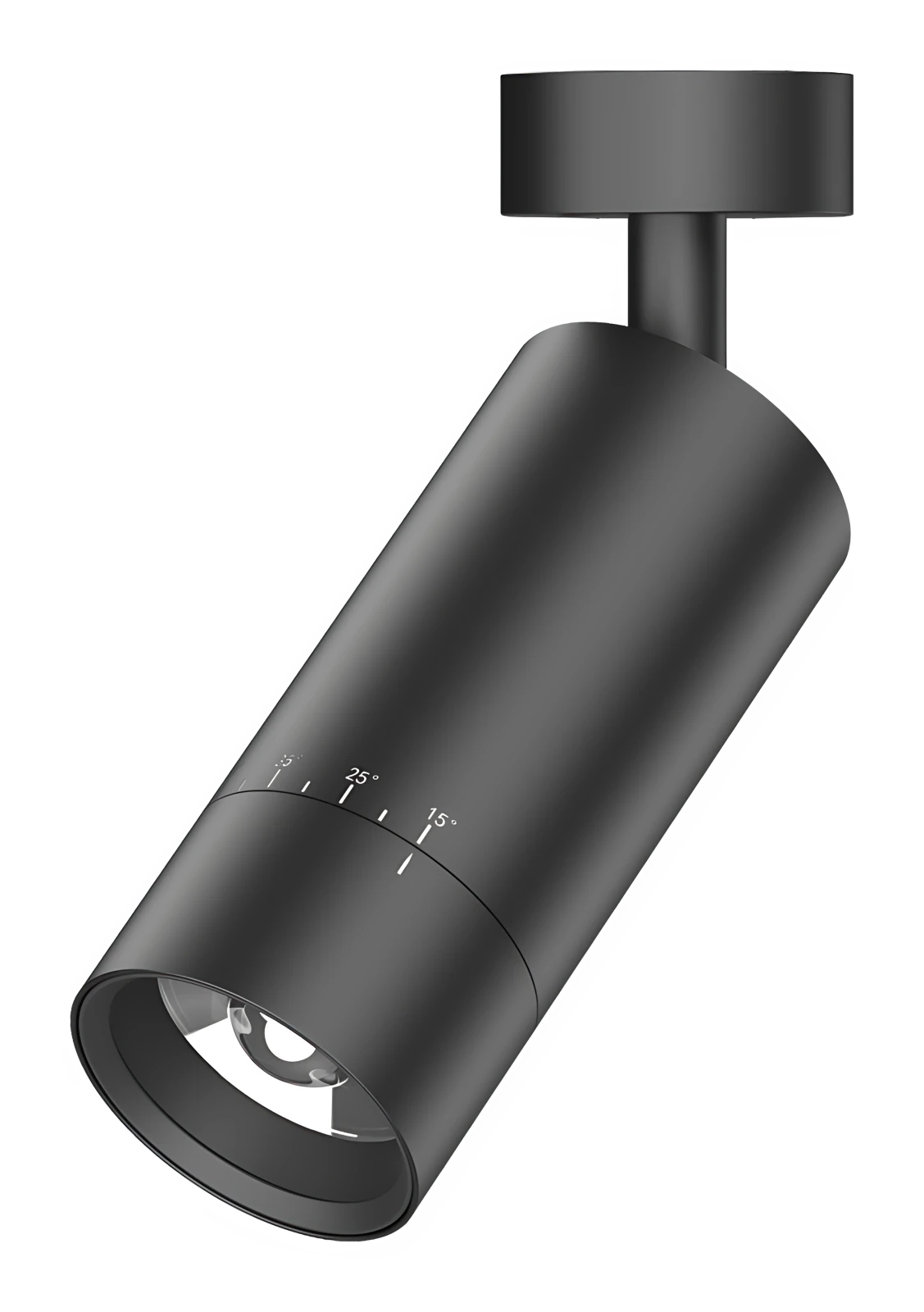

C3-4312

Technical specifications

CodeWattCRIFluxSizeBeamCCT
C3-431210 W97 CRI1000–1100 lm55 × 125 mm15° 60°3000, 4000 K
LED source
Citizen
Colour temperature
3000, 4000 K
Beam angles
15°, 60°
Control
Triac, Casambi, DALI, 0–10 V
Mounting
Surface
IP rating
IP20
Certifications
CE, RoHS, EMC, LVD

Photometry

C3-4312. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.

0°30°60°30°60° 646512930 cd/klm C0–C180 C90–C270
15°
Power
10 W
Luminous flux
386 lm
Efficacy
39 lm/W
Peak intensity
4,988 cd
Field angle (10%)
27.3°
At 3 m
554 lx, Ø0.79 m
0°30°60°30°60° 430860 cd/klm C0–C180 C90–C270
60°
Power
10 W
Luminous flux
1,218 lm
Efficacy
122 lm/W
Peak intensity
1,048 cd
Field angle (10%)
109.4°
At 3 m
116 lx, Ø3.46 m
