ENIT
Surface mounted 403xN C3-4033N

Technical specifications

CodeWattCRIFluxSizeBeamCCT

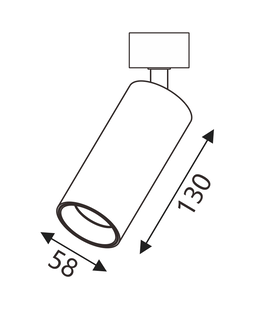

C3-4033N10 W97 CRI900–1000 lm58 × 130 mm10° 15° 24° 36° 50°3000, 4000 K
LED source
Citizen
Colour temperature
3000, 4000 K
Beam angles
10°, 15°, 24°, 36°, 50°
Control
Triac, Casambi, DALI-2, 0–10 V
Mounting
Surface
IP rating
IP20
Certifications
CE, RoHS, EMC, LVD

Photometry

C3-4033N. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.

0°30°60°30°60° 646512930 cd/klm C0–C180 C90–C270
15°
Power
10 W
Luminous flux
861 lm
Efficacy
86 lm/W
Peak intensity
11,133 cd
Field angle (10%)
27.3°
At 3 m
1,237 lx, Ø0.79 m
0°30°60°30°60° 25425083 cd/klm C0–C180 C90–C270
24°
Power
10 W
Luminous flux
964 lm
Efficacy
96 lm/W
Peak intensity
4,900 cd
Field angle (10%)
43.7°
At 3 m
544 lx, Ø1.28 m
0°30°60°30°60° 11452289 cd/klm C0–C180 C90–C270
36°
Power
10 W
Luminous flux
1,083 lm
Efficacy
108 lm/W
Peak intensity
2,480 cd
Field angle (10%)
65.6°
At 3 m
276 lx, Ø1.95 m
0°30°60°30°60° 1451329025 cd/klm C0–C180 C90–C270
10°
Power
10 W
Luminous flux
900 lm
Efficacy
90 lm/W
Peak intensity
26,123 cd
Field angle (10%)
18.2°
At 3 m
2,903 lx, Ø0.53 m
