Surface mounted 403xN C3-4031N

Technical specifications

CodeWattCRIFluxSizeBeamCCT

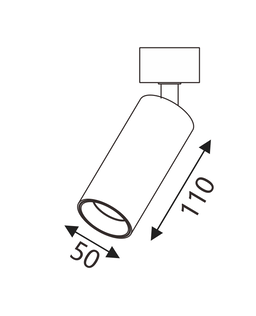

C3-4031N6 W97 CRI500–600 lm50 × 110 mm10° 15° 24° 36° 50°3000, 4000 K
LED source
Citizen
Colour temperature
3000, 4000 K
Beam angles
10°, 15°, 24°, 36°, 50°
Control
Triac, Casambi, DALI-2, 0–10 V
Mounting
Surface
IP rating
IP20
Certifications
CE, RoHS, EMC, LVD

Photometry

C3-4031N. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.

0°30°60°30°60° 646512930 cd/klm C0–C180 C90–C270
15°
Power
6 W
Luminous flux
245 lm
Efficacy
41 lm/W
Peak intensity
3,168 cd
Field angle (10%)
27.3°
At 3 m
352 lx, Ø0.79 m
0°30°60°30°60° 25425083 cd/klm C0–C180 C90–C270
24°
Power
6 W
Luminous flux
457 lm
Efficacy
76 lm/W
Peak intensity
2,322 cd
Field angle (10%)
43.7°
At 3 m
258 lx, Ø1.28 m
0°30°60°30°60° 11452289 cd/klm C0–C180 C90–C270
36°
Power
6 W
Luminous flux
502 lm
Efficacy
84 lm/W
Peak intensity
1,148 cd
Field angle (10%)
65.6°
At 3 m
128 lx, Ø1.95 m
0°30°60°30°60° 1451329025 cd/klm C0–C180 C90–C270
10°
Power
6 W
Luminous flux
500 lm
Efficacy
83 lm/W
Peak intensity
14,513 cd
Field angle (10%)
18.2°
At 3 m
1,613 lx, Ø0.53 m
