Technical specifications

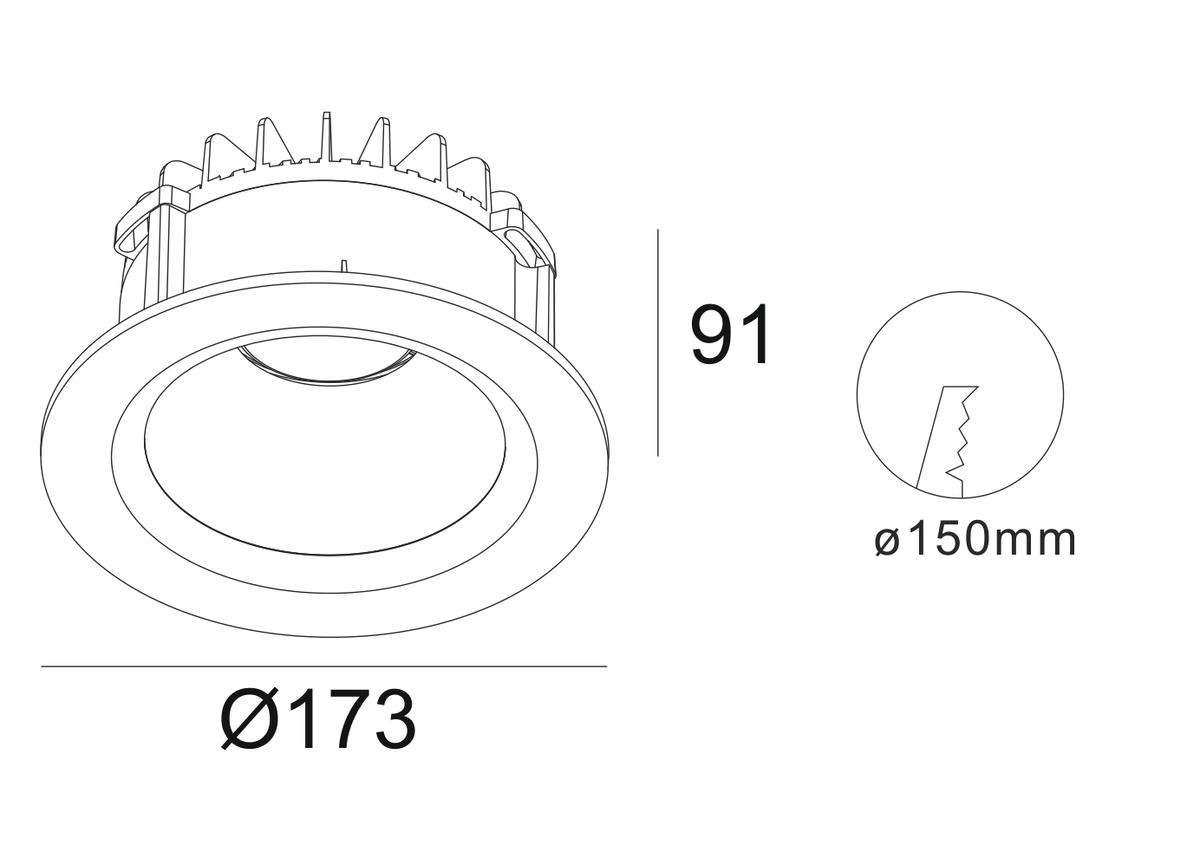

| Code | Watt | CRI | Voltage | Flux | Size | Beam | CCT | Cut-out |
|---|---|---|---|---|---|---|---|---|
| DL1405 | 15 W | 97 CRI | max 19 V | 1300 lm | Ø173 x H91 mm | 70° | 3000, 3500, 4000 K | Ø150 mm |
| DL1406 | 20 W | 97 CRI | max 28 V | 1800 lm | Ø173 x H91 mm | 70° | 3000, 3500, 4000 K | Ø150 mm |
| DL1407 | 25 W | 97 CRI | max 37 V | 2500 lm | Ø173 x H91 mm | 70° | 3000, 3500, 4000 K | Ø150 mm |
| DL1408 | 30 W | 97 CRI | max 45 V | 3200 lm | Ø173 x H91 mm | 70° | 3000, 3500, 4000 K | Ø150 mm |
- LED source
- Citizen
- Colour temperature
- 3000, 3500, 4000 K
- Beam angles
- 70°
- Control
- On/Off, DALI
- Mounting
- Recessed
- IP rating
- IP44
- Certifications
- CE
- Note
- 700 mA
Photometry
DL1408. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.
- Power
- 30 W
- Luminous flux
- 3,200 lm
- Efficacy
- 107 lm/W
- Peak intensity
- 2,081 cd
- Field angle (10%)
- 127.6°
- At 3 m
- 231 lx, Ø4.20 m
