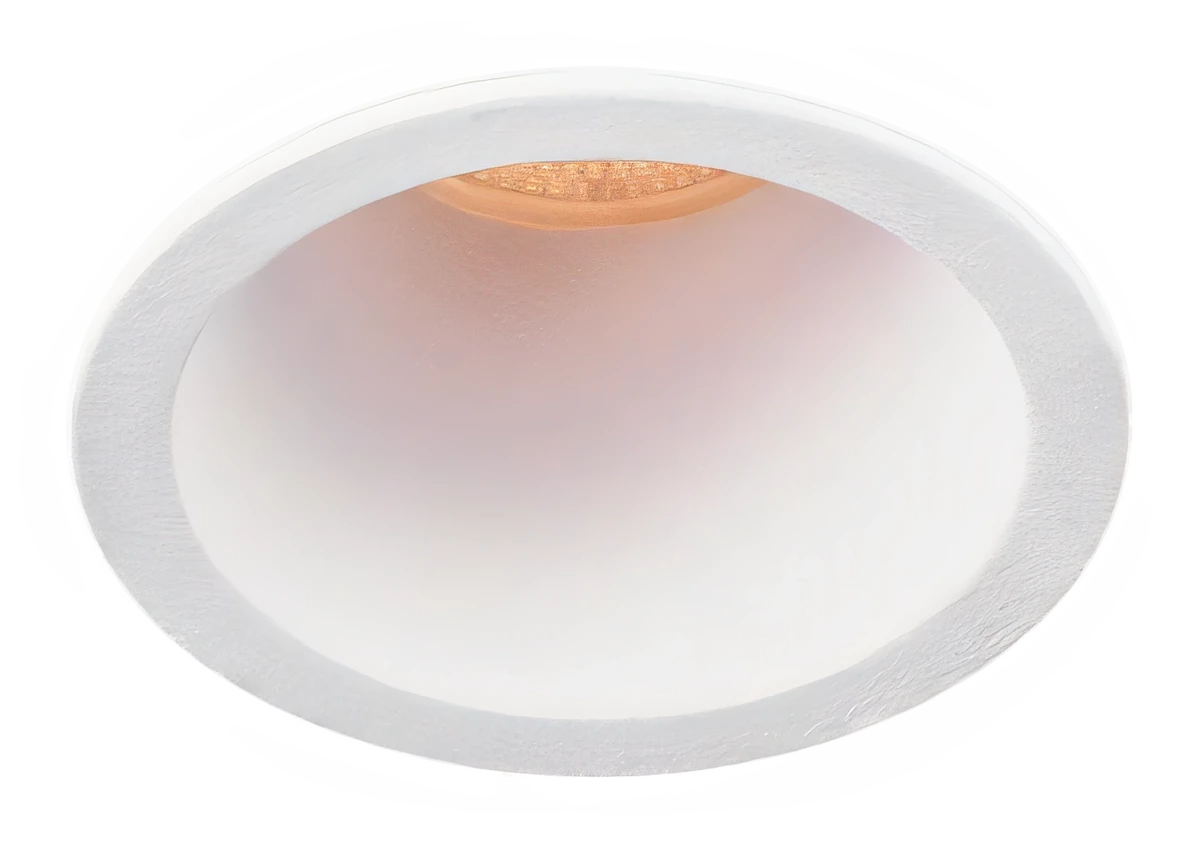

Moon DL1552

Name: Moon DL1552
Brand: DiaNoche
SKU: DL1552

Recessed spotlight

Recessed spotlight. 5 or 7 W. Beam angles 15° to 55°, by model. 2700, 3000, 4000 K. 97 CRI.

Available finishes

Black

5 models

DL15525 W
DL15257 W
DL15535 W
DL15267 W
DL19895 W

Enquire about this product

DatasheetPDF, 332 KB

Photometric filesIES and LDT, 20 versions, measured and calculated

DL15535 W, 2700 K, 24°, measuredIES LDT

DL15525 W, 15°, calculatedIES LDT

DL15525 W, 24°, calculatedIES LDT

DL15525 W, 36°, calculatedIES LDT

DL15525 W, 50°, calculatedIES LDT

DL15257 W, 15°, calculatedIES LDT

DL15257 W, 24°, calculatedIES LDT

DL15257 W, 36°, calculatedIES LDT

DL15257 W, 50°, calculatedIES LDT

DL15535 W, 15°, calculatedIES LDT

DL15535 W, 36°, calculatedIES LDT

DL15535 W, 50°, calculatedIES LDT

DL15267 W, 15°, calculatedIES LDT

DL15267 W, 24°, calculatedIES LDT

DL15267 W, 36°, calculatedIES LDT

DL15267 W, 50°, calculatedIES LDT

DL19895 W, 15°, calculatedIES LDT

DL19895 W, 24°, calculatedIES LDT

DL19895 W, 36°, calculatedIES LDT

DL19895 W, 55°, calculatedIES LDT

Measured files come from goniophotometer tests in the laboratory; each file gives the test date. Calculated files are built from the catalogue photometric data, its illuminance table or rated luminous flux, with the beam angle. Spill light is not modelled.

Technical specifications

Code	Watt	CRI	Flux	Size	Beam	CCT	Cut-out	Notes
DL1552	5 W	97 CRI	450 lm	Ø40 x H69 mm	15° 24° 36° 50°	2700, 3000, 4000 K	Ø35 mm	250 mA
DL1525	7 W	97 CRI	630 lm	Ø40 x H89 mm	15° 24° 36° 50°	2700, 3000, 4000 K	Ø35 mm	350 mA
DL1553	5 W	97 CRI	450 lm	Ø34 x H69 mm (trim plate 80; also marked 37 and 18 mm)	15° 24° 36° 50°	2700, 3000, 4000 K	Ø45 mm	250 mA
DL1526	7 W	97 CRI	630 lm	Ø34 x H89 mm (trim plate 80; also marked 37 and 18 mm)	15° 24° 36° 50°	2700, 3000, 4000 K	Ø45 mm	350 mA
DL1989	5 W	97 CRI	450 lm	Ø30 x H70 mm	15° 24° 36° 55°	2700, 3000, 4000 K	Ø25 mm	250 mA

LED source: Citizen
Colour temperature: 2700, 3000, 4000 K
Beam angles: 15°, 24°, 36°, 50°, 55°
Mounting: Recessed
IP rating: IP20
Certifications: CE

Photometry

DL1553. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: measured with a goniophotometer where marked, otherwise calculated from catalogue data.
