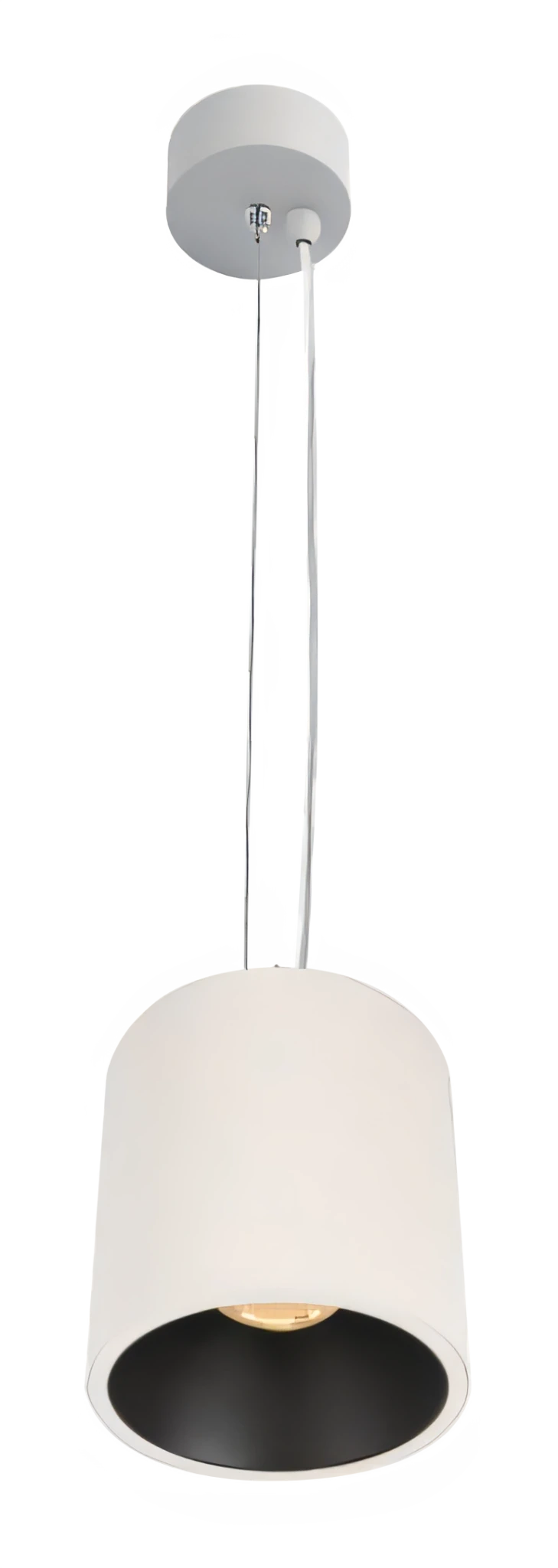

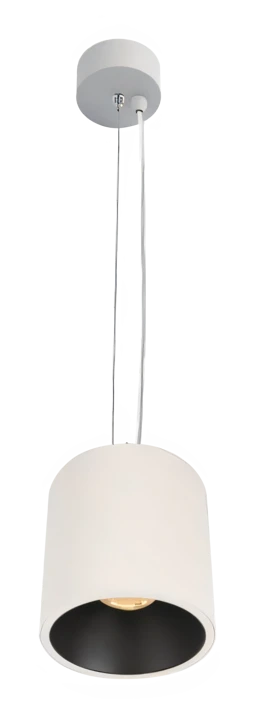

Roll PH0023

Technical specifications

CodeCRIVoltageFluxSizeBeamCCT

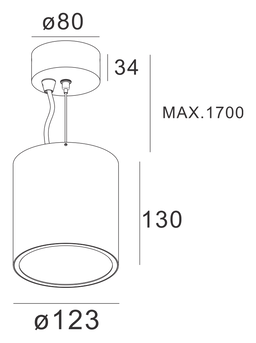

PH002397 CRI230 V AC1300 / 1800 / 2600 lmØ123 × 130 mm (canopy Ø80 × 34, max. suspension 1700)15° 30° 50°2700, 3000, 4000 K
LED source
Citizen
Colour temperature
2700, 3000, 4000 K
Beam angles
15°, 30°, 50°
Mounting
Suspended
IP rating
IP20
Certifications
CE

Photometry

PH0023. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.

0°30°60°30°60° 646512930 cd/klm C0–C180 C90–C270
15°
Luminous flux
1,300 lm
Peak intensity
16,809 cd
Field angle (10%)
27.3°
At 3 m
1,868 lx, Ø0.79 m
0°30°60°30°60° 16373273 cd/klm C0–C180 C90–C270
30°
Luminous flux
1,300 lm
Peak intensity
4,254 cd
Field angle (10%)
54.7°
At 3 m
473 lx, Ø1.61 m
0°30°60°30°60° 6071213 cd/klm C0–C180 C90–C270
50°
Luminous flux
1,300 lm
Peak intensity
1,577 cd
Field angle (10%)
91.1°
At 3 m
175 lx, Ø2.80 m
