ENIT

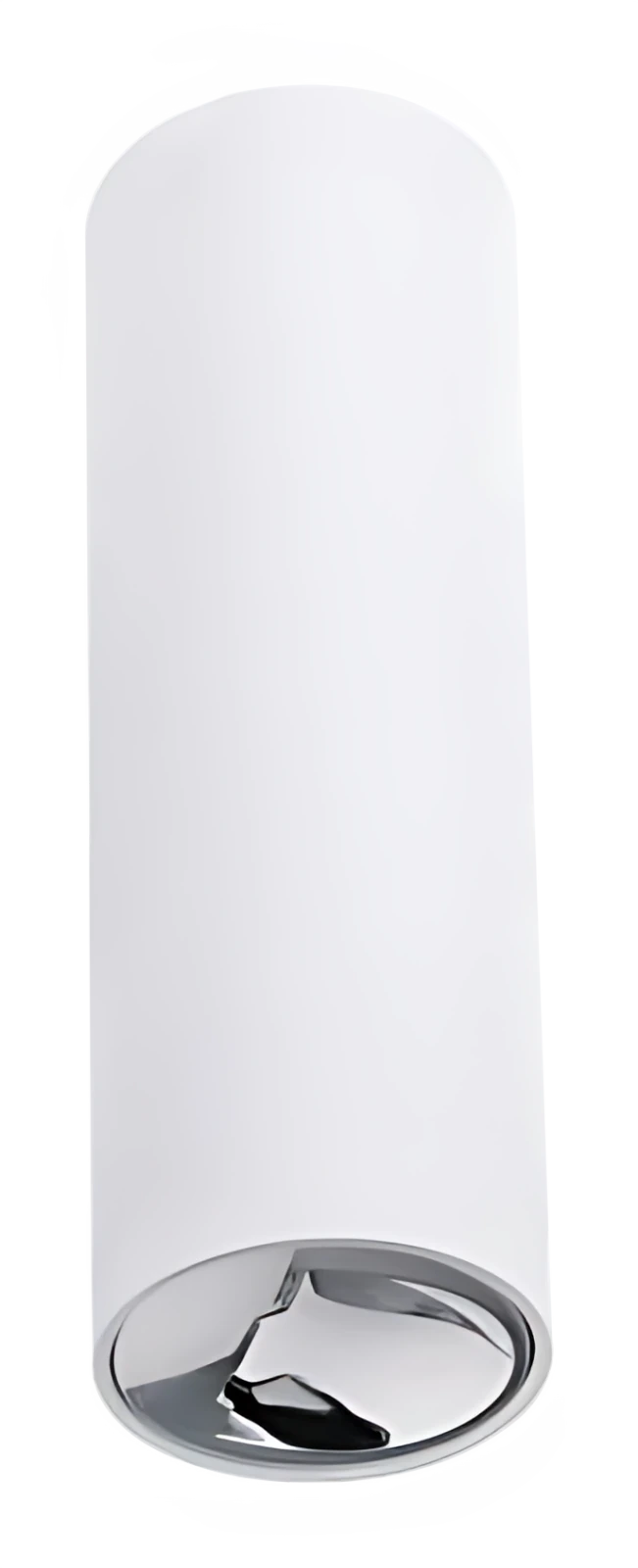

Roll CH0263

Technical specifications

CodeWattCRIVoltageFluxSizeBeamCCT
CH0263Wall washer11 W97 CRI230 V AC1000 lmØ54 × 150 mm15° 24° 36° 50° 55°2700, 3000, 4000 K
LED source
Citizen
Colour temperature
2700, 3000, 4000 K
Beam angles
15°, 24°, 36°, 50°, 55°
Mounting
Surface
IP rating
IP20
Certifications
CE

Photometry

CH0263. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.

0°30°60°30°60° 15783156 cd/klm C0–C180 C90–C270
Wall washer
Power
11 W
Luminous flux
1,000 lm
Efficacy
91 lm/W
Peak intensity
3,156 cd
0°30°60°30°60° 9861972 cd/klm C0–C180 C90–C270
Wall washer
Power
11 W
Luminous flux
1,000 lm
Efficacy
91 lm/W
Peak intensity
1,972 cd
0°30°60°30°60° 6581315 cd/klm C0–C180 C90–C270
Wall washer
Power
11 W
Luminous flux
1,000 lm
Efficacy
91 lm/W
Peak intensity
1,315 cd
0°30°60°30°60° 475949 cd/klm C0–C180 C90–C270
Wall washer
Power
11 W
Luminous flux
1,000 lm
Efficacy
91 lm/W
Peak intensity
949 cd
