Technical specifications
| Code | Watt | CRI | Voltage | Flux | Size | Beam | CCT |
|---|---|---|---|---|---|---|---|

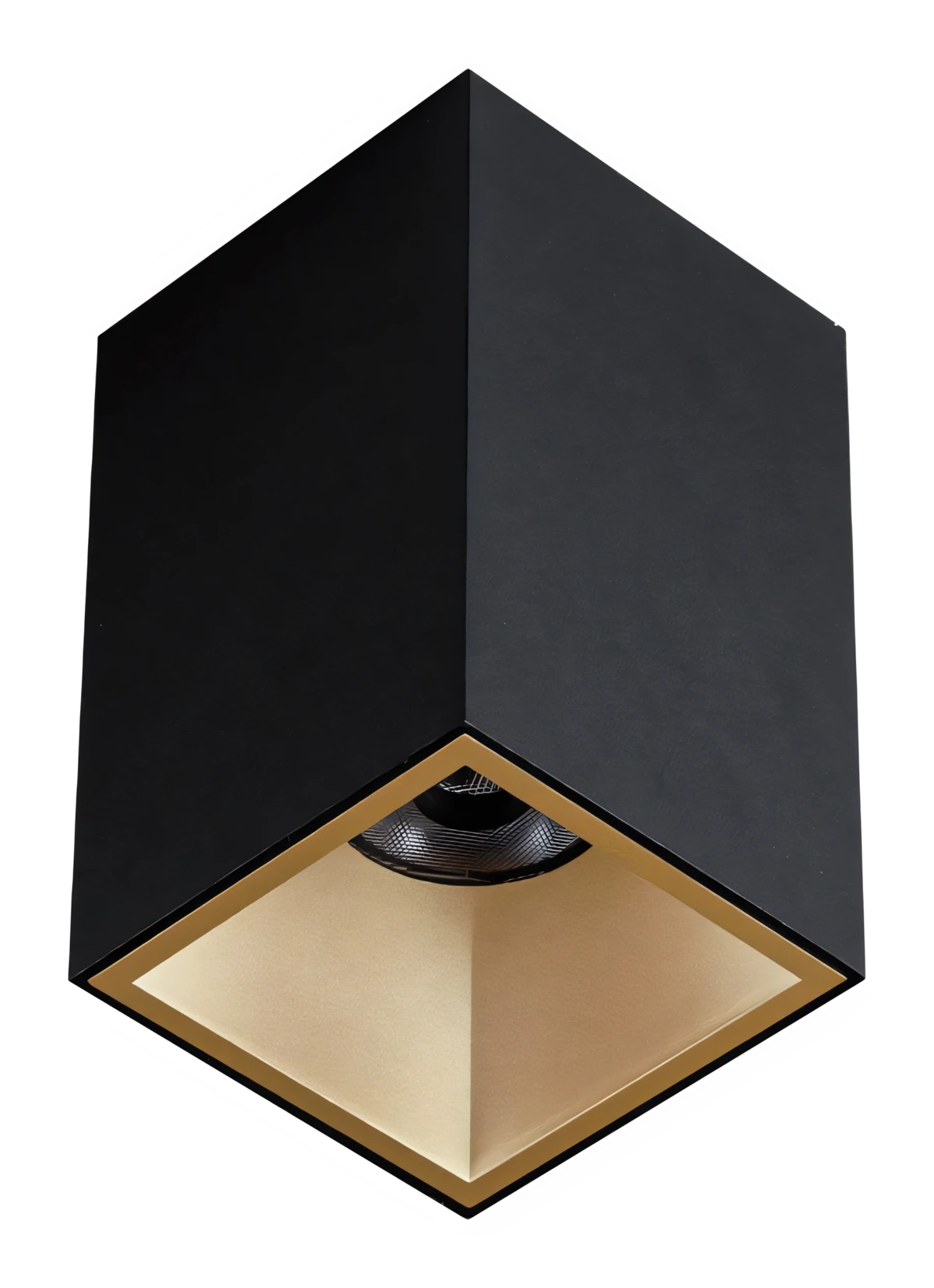

| CH0250 | 5 W | 97 CRI | 230 V AC | 400 lm | 40 × 40 × 70 mm | 15° 24° 36° 55° | 2700, 3000, 4000 K |
| CH0286 | 8 W | 97 CRI | 230 V AC | 630 lm | 40 × 40 × 100 mm | 15° 24° 36° 55° | 2700, 3000, 4000 K |
- LED source
- Citizen
- Colour temperature
- 2700, 3000, 4000 K
- Beam angles
- 15°, 24°, 36°, 55°
- Mounting
- Surface
- IP rating
- IP20
- Certifications
- CE
Photometry
CH0286. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.
- Power
- 8 W
- Luminous flux
- 630 lm
- Efficacy
- 79 lm/W
- Peak intensity
- 8,146 cd
- Field angle (10%)
- 27.3°
- At 3 m
- 905 lx, Ø0.79 m
- Power
- 8 W
- Luminous flux
- 630 lm
- Efficacy
- 79 lm/W
- Peak intensity
- 3,202 cd
- Field angle (10%)
- 43.7°
- At 3 m
- 356 lx, Ø1.28 m
- Power
- 8 W
- Luminous flux
- 630 lm
- Efficacy
- 79 lm/W
- Peak intensity
- 1,442 cd
- Field angle (10%)
- 65.6°
- At 3 m
- 160 lx, Ø1.95 m
- Power
- 8 W
- Luminous flux
- 630 lm
- Efficacy
- 79 lm/W
- Peak intensity
- 638 cd
- Field angle (10%)
- 100.2°
- At 3 m
- 71 lx, Ø3.12 m
