Technical specifications
| Code | Watt | CRI | Voltage | Flux | Size | Beam | CCT |
|---|---|---|---|---|---|---|---|
| C3-41232 heads | 28 W | 97 CRI | 220–240 V AC | 2 × 1300–1500 lm | Canopy 280 × 65 mm; heads Ø58 × 130 mm each | 10° 15° 24° 36° 50° | 3000, 4000 K |
- LED source
- Citizen
- Colour temperature
- 3000, 4000 K
- Beam angles
- 10°, 15°, 24°, 36°, 50°
- Control
- On/Off, Triac, Casambi, DALI, 0–10 V
- Mounting
- Surface
- IP rating
- IP20
- Certifications
- CE, RoHS, EMC, LVD
Photometry

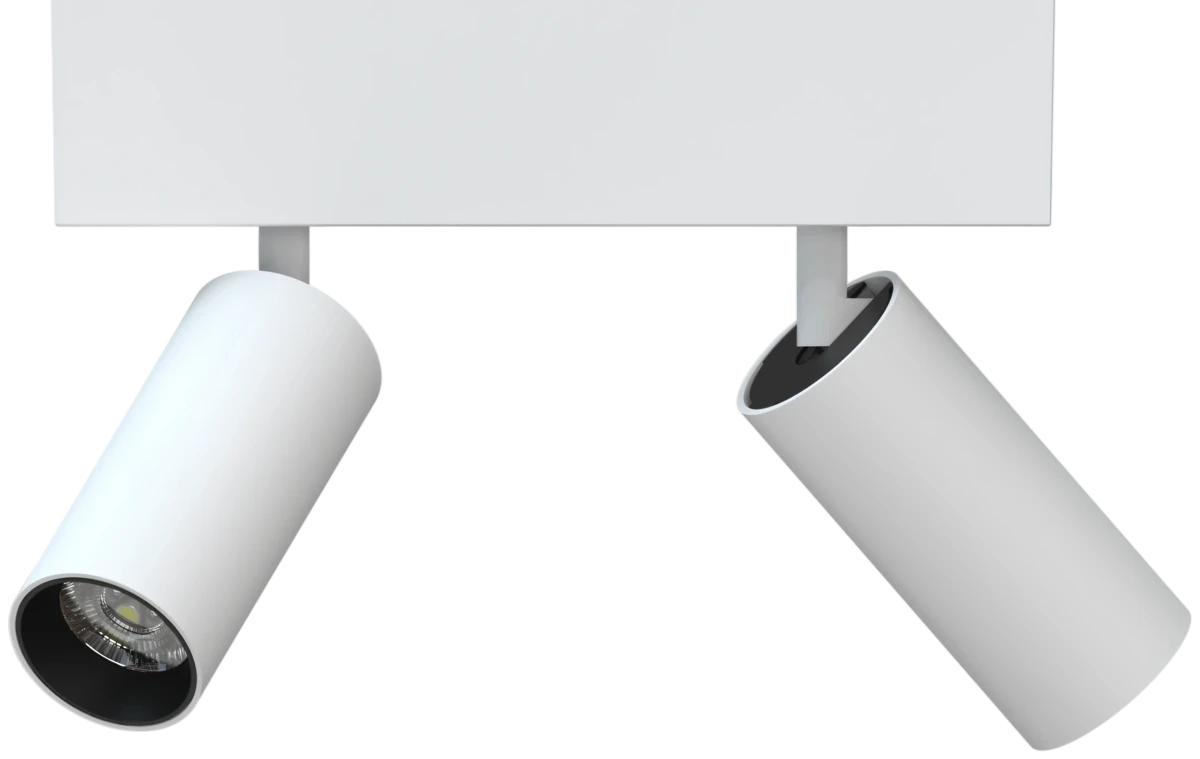

C3-4123. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.
- Power
- 28 W
- Luminous flux
- 626 lm
- Efficacy
- 22 lm/W
- Peak intensity
- 8,088 cd
- Field angle (10%)
- 27.3°
- At 3 m
- 899 lx, Ø0.79 m
- Power
- 28 W
- Luminous flux
- 1,300 lm
- Efficacy
- 46 lm/W
- Peak intensity
- 6,608 cd
- Field angle (10%)
- 43.7°
- At 3 m
- 734 lx, Ø1.28 m
- Power
- 28 W
- Luminous flux
- 1,297 lm
- Efficacy
- 46 lm/W
- Peak intensity
- 2,970 cd
- Field angle (10%)
- 65.6°
- At 3 m
- 330 lx, Ø1.95 m
- Power
- 28 W
- Luminous flux
- 2,600 lm
- Efficacy
- 93 lm/W
- Peak intensity
- 75,466 cd
- Field angle (10%)
- 18.2°
- At 3 m
- 8,385 lx, Ø0.53 m
