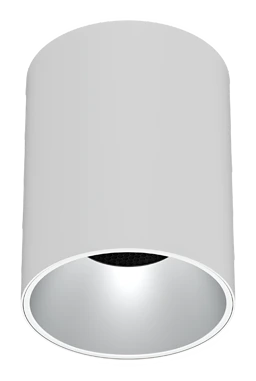

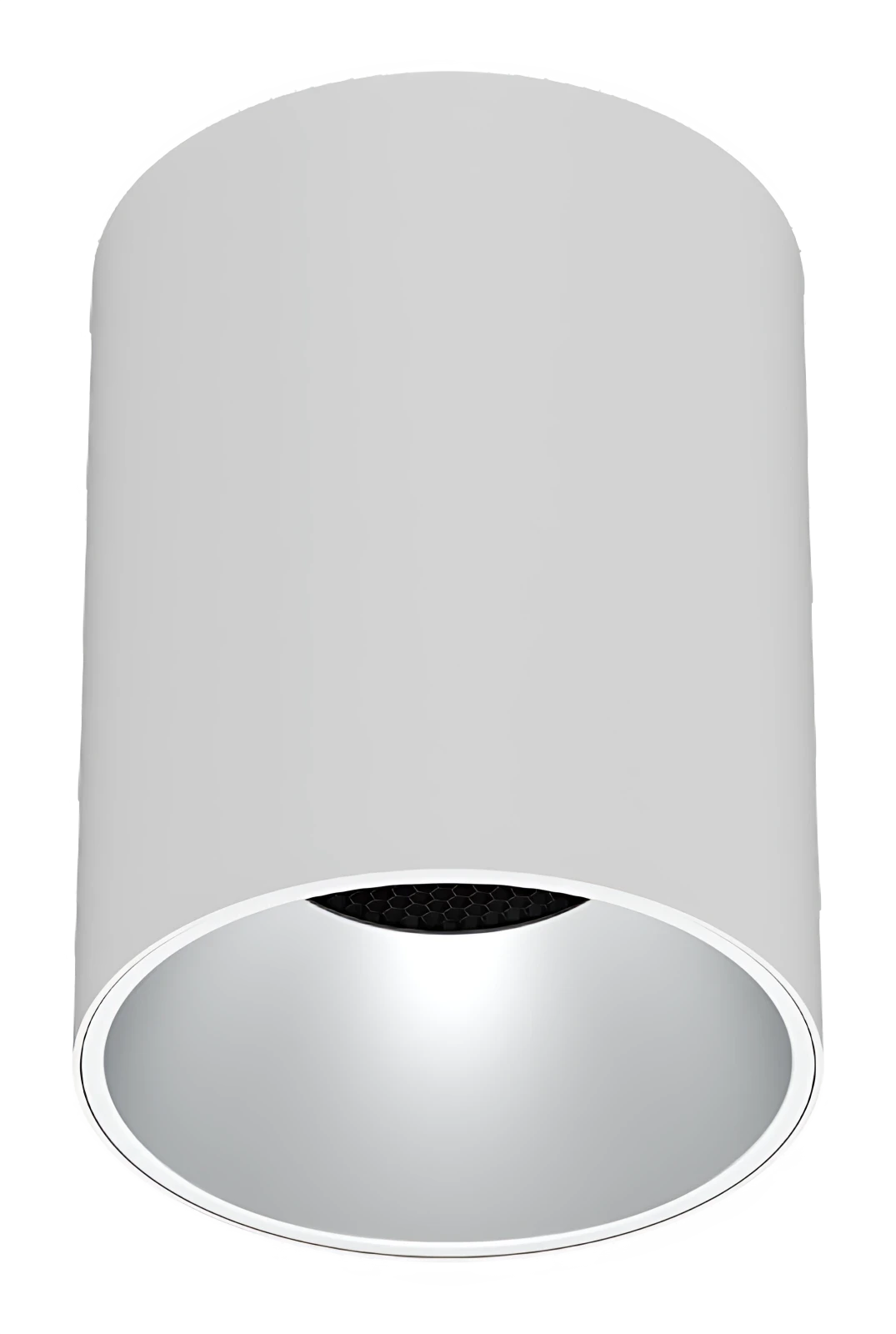

C3-3024

Technical specifications

CodeWattCRIFluxSizeBeamCCT

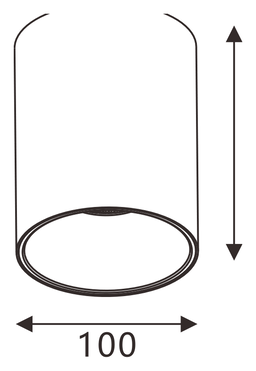

C3-302430 W97 CRI2100–2300 lmØ100 x H130 mm15° 24° 38° 55°3000, 4000 K
LED source
Citizen
Colour temperature
3000, 4000 K
Beam angles
15°, 24°, 38°, 55°
Control
Triac, Casambi, DALI, 0–10 V
Mounting
Surface
IP rating
IP65
Certifications
CE, RoHS, EMC, LVD

Photometry

C3-3024. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.

0°30°60°30°60° 25425083 cd/klm C0–C180 C90–C270
24°
Power
30 W
Luminous flux
1,260 lm
Efficacy
42 lm/W
Peak intensity
6,404 cd
Field angle (10%)
43.7°
At 3 m
712 lx, Ø1.28 m
0°30°60°30°60° 10302060 cd/klm C0–C180 C90–C270
38°
Power
30 W
Luminous flux
2,394 lm
Efficacy
80 lm/W
Peak intensity
4,932 cd
Field angle (10%)
69.3°
At 3 m
548 lx, Ø2.07 m
0°30°60°30°60° 646512930 cd/klm C0–C180 C90–C270
15°
Power
30 W
Luminous flux
2,100 lm
Efficacy
70 lm/W
Peak intensity
27,152 cd
Field angle (10%)
27.3°
At 3 m
3,017 lx, Ø0.79 m
0°30°60°30°60° 5061012 cd/klm C0–C180 C90–C270
55°
Power
30 W
Luminous flux
2,100 lm
Efficacy
70 lm/W
Peak intensity
2,126 cd
Field angle (10%)
100.2°
At 3 m
236 lx, Ø3.12 m
