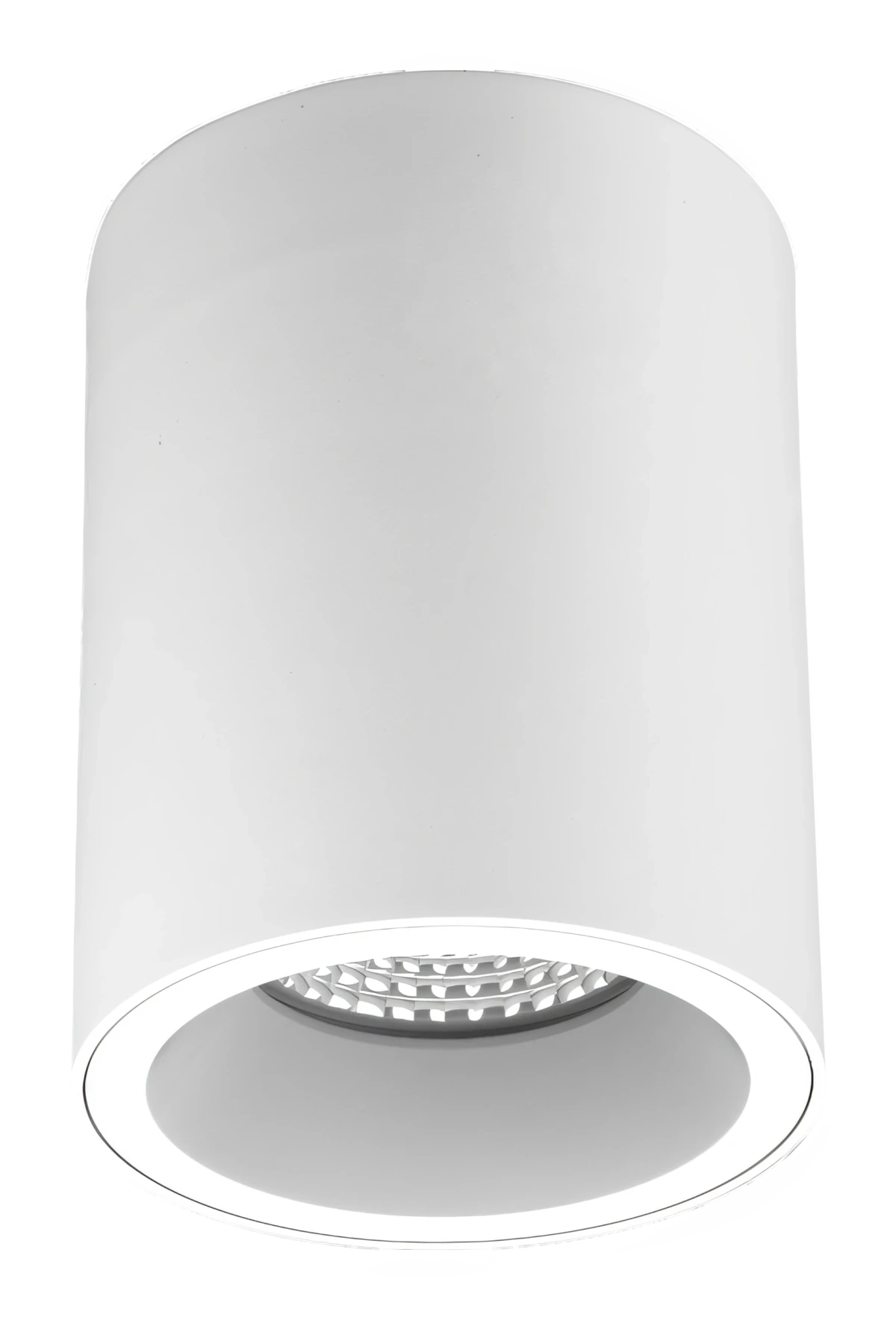

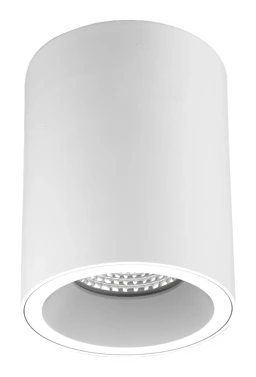

C3-1030

Technical specifications

CodeWattCRIFluxSizeBeamCCT
C3-103010 W97 CRI1000–1100 lm100 x H132 mm25° 45°3000, 4000 K
LED source
Citizen
Colour temperature
3000, 4000 K
Beam angles
25°, 45°
Control
Triac, Casambi, DALI, 0–10 V
Mounting
Surface
IP rating
IP20
Certifications
CE, RoHS, EMC, LVD

Photometry

C3-1030. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.

0°30°60°30°60° 23454689 cd/klm C0–C180 C90–C270
25°
Power
10 W
Luminous flux
369 lm
Efficacy
37 lm/W
Peak intensity
1,728 cd
Field angle (10%)
45.6°
At 3 m
192 lx, Ø1.33 m
0°30°60°30°60° 7431485 cd/klm C0–C180 C90–C270
45°
Power
10 W
Luminous flux
582 lm
Efficacy
58 lm/W
Peak intensity
864 cd
Field angle (10%)
82°
At 3 m
96 lx, Ø2.49 m
