ENIT

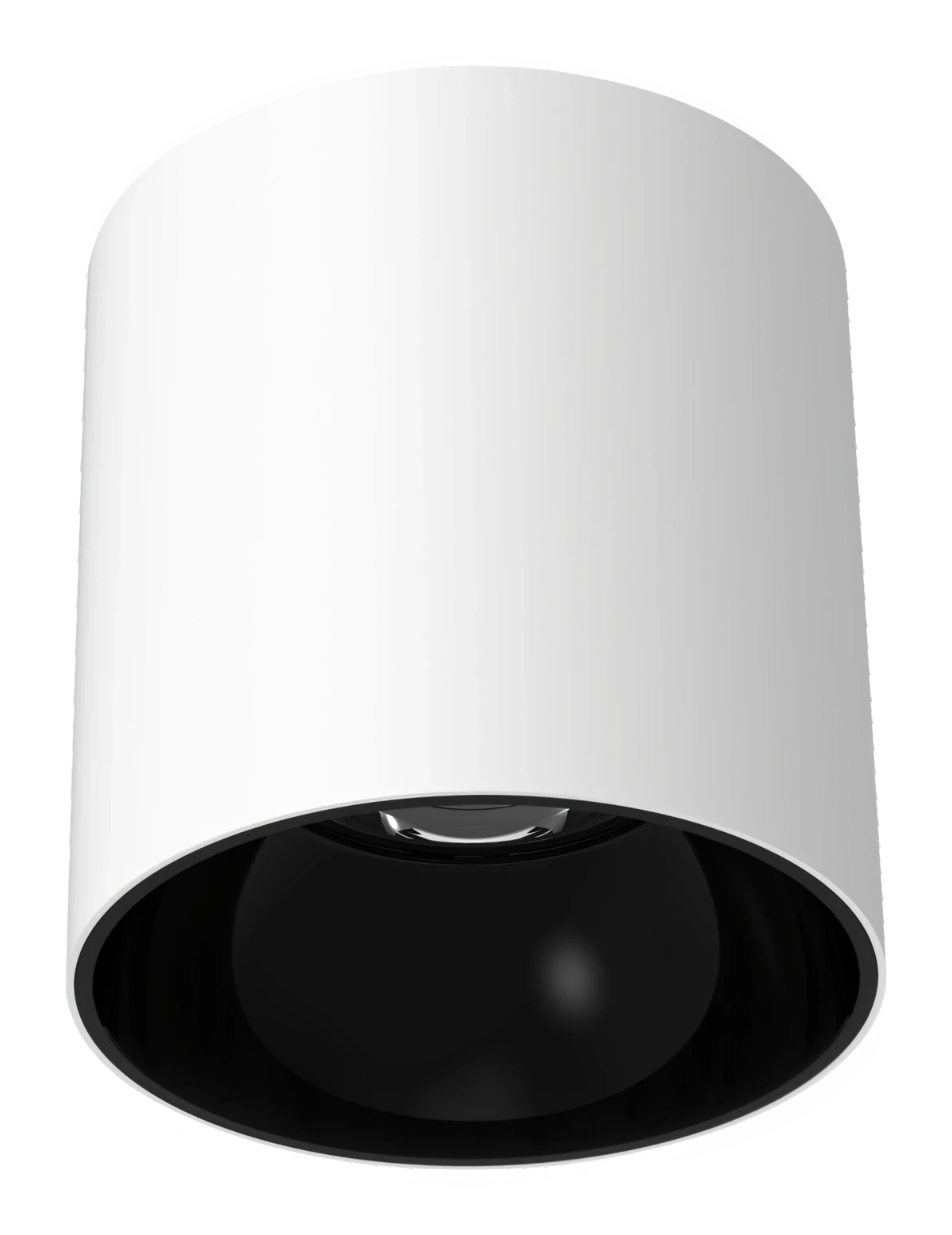

C3-1028

Technical specifications

CodeWattCRIVoltageFluxSizeBeamCCT

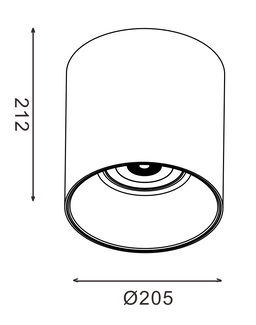

C3-102860 W97 CRI220–240 V AC4600–4800 lmØ205 x H212 mm30° 40° 60°3000, 4000 K
LED source
Citizen
Colour temperature
3000, 4000 K
Beam angles
30°, 40°, 60°
Control
On/Off, Triac, Casambi, DALI, 0–10 V
Mounting
Surface
IP rating
IP65
Certifications
CE, RoHS, EMC, LVD

Photometry

C3-1028. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.

0°30°60°30°60° 430860 cd/klm C0–C180 C90–C270
60°
Power
60 W
Luminous flux
7,009 lm
Efficacy
117 lm/W
Peak intensity
6,030 cd
Field angle (10%)
109.4°
At 3 m
670 lx, Ø3.46 m
0°30°60°30°60° 16373273 cd/klm C0–C180 C90–C270
30°
Power
60 W
Luminous flux
4,600 lm
Efficacy
77 lm/W
Peak intensity
15,054 cd
Field angle (10%)
54.7°
At 3 m
1,673 lx, Ø1.61 m
0°30°60°30°60° 9321864 cd/klm C0–C180 C90–C270
40°
Power
60 W
Luminous flux
4,600 lm
Efficacy
77 lm/W
Peak intensity
8,576 cd
Field angle (10%)
72.9°
At 3 m
953 lx, Ø2.18 m
