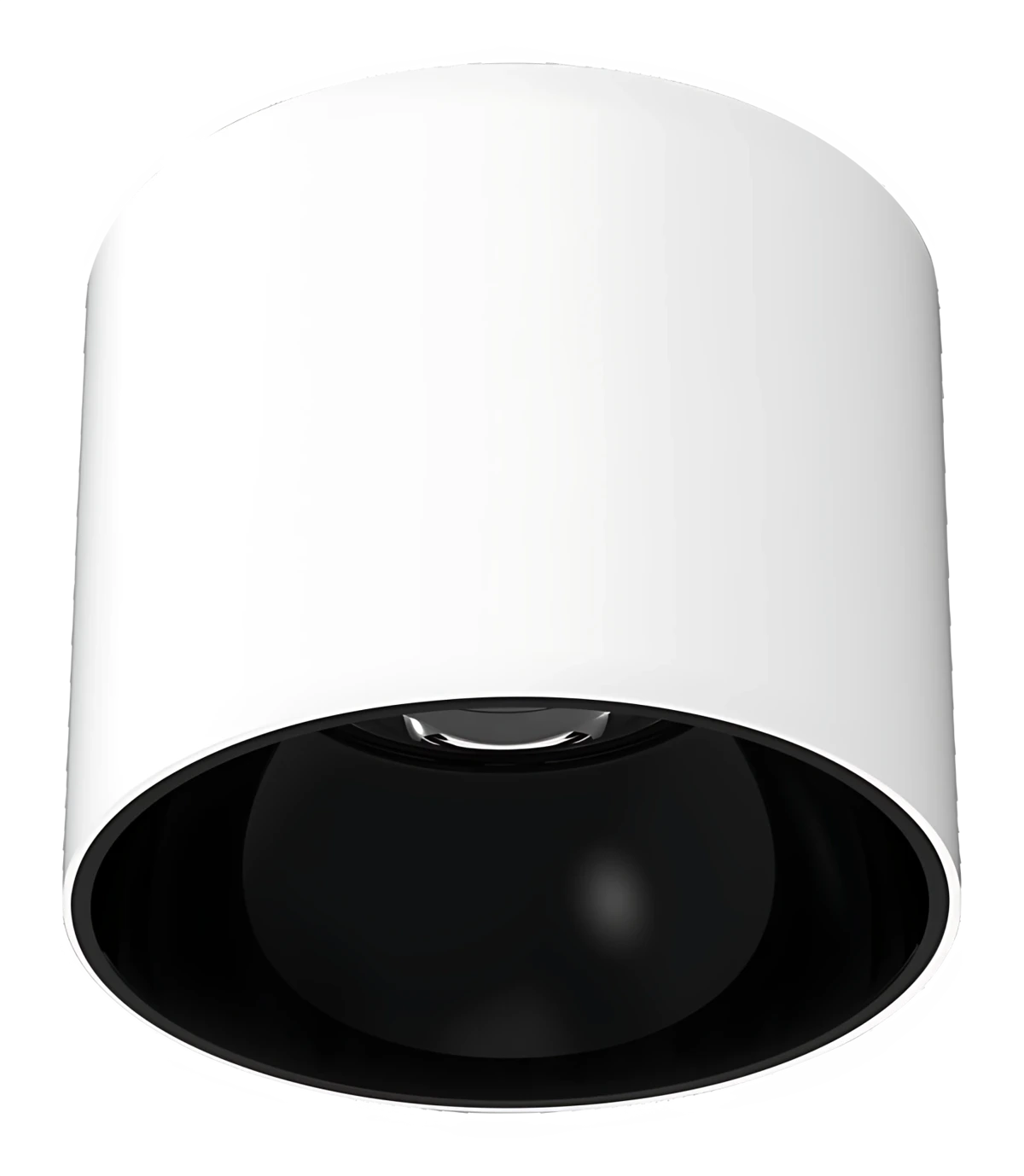

C3-1027

Technical specifications

CodeWattCRIVoltageFluxSizeBeamCCT
C3-102750 W97 CRI220–240 V AC3800–3900 lmØ170 x H182 mm27° 40° 60°3000, 4000 K
LED source
Citizen
Colour temperature
3000, 4000 K
Beam angles
27°, 40°, 60°
Control
On/Off, Triac, Casambi, DALI, 0–10 V
Mounting
Surface
IP rating
IP65
Certifications
CE, RoHS, EMC, LVD

Photometry

C3-1027. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.

0°30°60°30°60° 20144028 cd/klm C0–C180 C90–C270
27°
Power
50 W
Luminous flux
2,559 lm
Efficacy
51 lm/W
Peak intensity
10,308 cd
Field angle (10%)
49.2°
At 3 m
1,145 lx, Ø1.44 m
0°30°60°30°60° 430860 cd/klm C0–C180 C90–C270
60°
Power
50 W
Luminous flux
5,505 lm
Efficacy
110 lm/W
Peak intensity
4,736 cd
Field angle (10%)
109.4°
At 3 m
526 lx, Ø3.46 m
0°30°60°30°60° 9321864 cd/klm C0–C180 C90–C270
40°
Power
50 W
Luminous flux
3,800 lm
Efficacy
76 lm/W
Peak intensity
7,085 cd
Field angle (10%)
72.9°
At 3 m
787 lx, Ø2.18 m
