ENIT

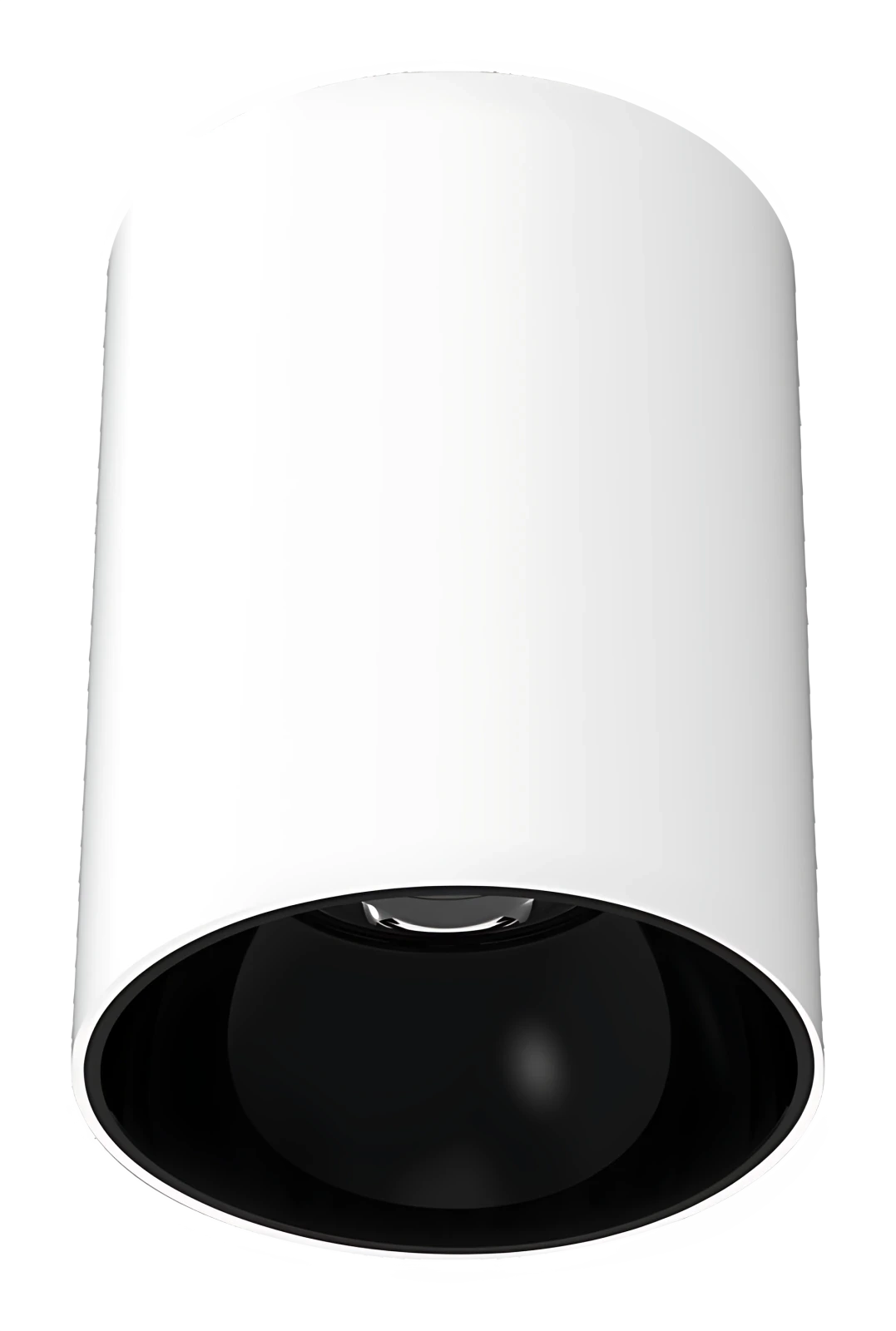

C3-1025

Technical specifications

CodeWattCRIVoltageFluxSizeBeamCCT

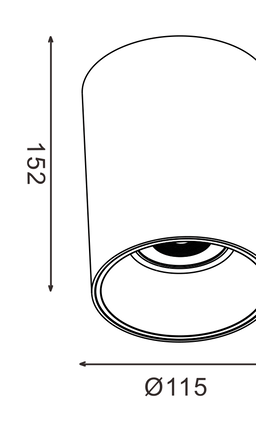

C3-102530 W97 CRI220–240 V AC2400–2500 lmØ115 x H152 mm20° 40° 55°3000, 4000 K
LED source
Citizen
Colour temperature
3000, 4000 K
Beam angles
20°, 40°, 55°
Control
On/Off, Triac, Casambi, DALI, 0–10 V
Mounting
Surface
IP rating
IP65
Certifications
CE, RoHS, EMC, LVD

Photometry

C3-1025. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.

0°30°60°30°60° 36487296 cd/klm C0–C180 C90–C270
20°
Power
30 W
Luminous flux
1,372 lm
Efficacy
46 lm/W
Peak intensity
10,008 cd
Field angle (10%)
36.5°
At 3 m
1,112 lx, Ø1.06 m
0°30°60°30°60° 9321864 cd/klm C0–C180 C90–C270
40°
Power
30 W
Luminous flux
2,317 lm
Efficacy
77 lm/W
Peak intensity
4,320 cd
Field angle (10%)
72.9°
At 3 m
480 lx, Ø2.18 m
0°30°60°30°60° 5061012 cd/klm C0–C180 C90–C270
55°
Power
30 W
Luminous flux
2,400 lm
Efficacy
80 lm/W
Peak intensity
2,430 cd
Field angle (10%)
100.2°
At 3 m
270 lx, Ø3.12 m
