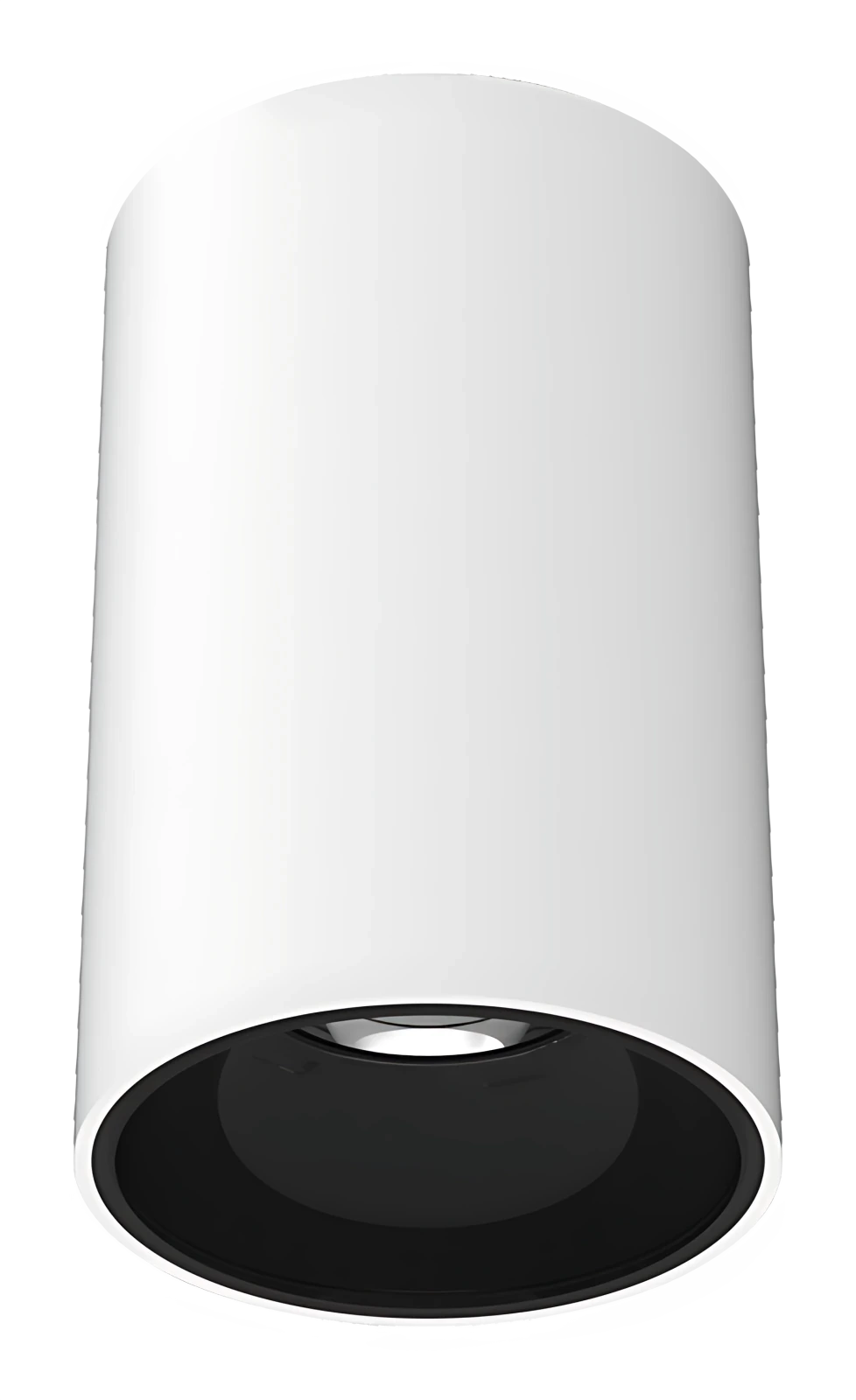

C3-1024

Technical specifications

CodeWattCRIVoltageFluxSizeBeamCCT
C3-102420 W97 CRI220–240 V AC1500–1700 lmØ95 x H152 mm20° 40° 55°3000, 4000 K
LED source
Citizen
Colour temperature
3000, 4000 K
Beam angles
20°, 40°, 55°
Control
On/Off, Triac, Casambi, DALI, 0–10 V
Mounting
Surface
IP rating
IP65
Certifications
CE, RoHS, EMC, LVD

Photometry

C3-1024. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.

0°30°60°30°60° 36487296 cd/klm C0–C180 C90–C270
20°
Power
20 W
Luminous flux
1,150 lm
Efficacy
57 lm/W
Peak intensity
8,388 cd
Field angle (10%)
36.5°
At 3 m
932 lx, Ø1.06 m
0°30°60°30°60° 9321864 cd/klm C0–C180 C90–C270
40°
Power
20 W
Luminous flux
1,804 lm
Efficacy
90 lm/W
Peak intensity
3,364 cd
Field angle (10%)
72.9°
At 3 m
374 lx, Ø2.18 m
0°30°60°30°60° 5061012 cd/klm C0–C180 C90–C270
55°
Power
20 W
Luminous flux
1,500 lm
Efficacy
75 lm/W
Peak intensity
1,519 cd
Field angle (10%)
100.2°
At 3 m
169 lx, Ø3.12 m
