Technical specifications
| Code | Watt | CRI | Voltage | Flux | Size | Beam | CCT | Cut-out | Notes |
|---|---|---|---|---|---|---|---|---|---|

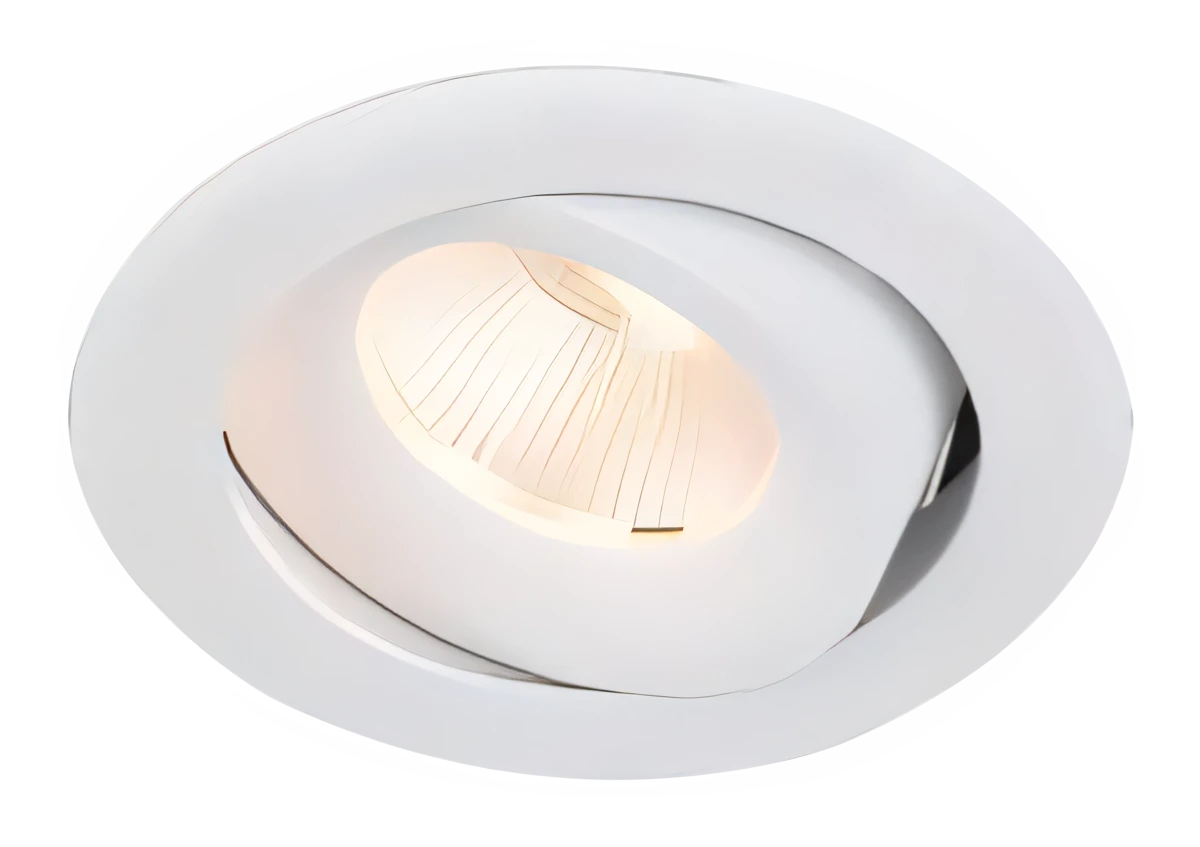

| DL0244 | 7 W | 97 CRI | max 19 V | 580 lm | Ø92 x H40 mm | 15° 24° 38° 50° | 2700, 3000, 4000 K | Ø83 mm | 350 mA |
- LED source
- Citizen
- Colour temperature
- 2700, 3000, 4000 K
- Beam angles
- 15°, 24°, 38°, 50°
- Mounting
- Recessed
- IP rating
- IP20
- Certifications
- CE
Photometry
DL0244. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.
- Power
- 7 W
- Luminous flux
- 580 lm
- Efficacy
- 83 lm/W
- Peak intensity
- 7,499 cd
- Field angle (10%)
- 27.3°
- At 3 m
- 833 lx, Ø0.79 m
- Power
- 7 W
- Luminous flux
- 580 lm
- Efficacy
- 83 lm/W
- Peak intensity
- 2,948 cd
- Field angle (10%)
- 43.7°
- At 3 m
- 328 lx, Ø1.28 m
- Power
- 7 W
- Luminous flux
- 580 lm
- Efficacy
- 83 lm/W
- Peak intensity
- 1,195 cd
- Field angle (10%)
- 69.3°
- At 3 m
- 133 lx, Ø2.07 m
- Power
- 7 W
- Luminous flux
- 580 lm
- Efficacy
- 83 lm/W
- Peak intensity
- 704 cd
- Field angle (10%)
- 91.1°
- At 3 m
- 78 lx, Ø2.80 m
