Technical specifications
| Code | Watt | CRI | Voltage | Flux | Size | Beam | CCT | Cut-out |
|---|---|---|---|---|---|---|---|---|

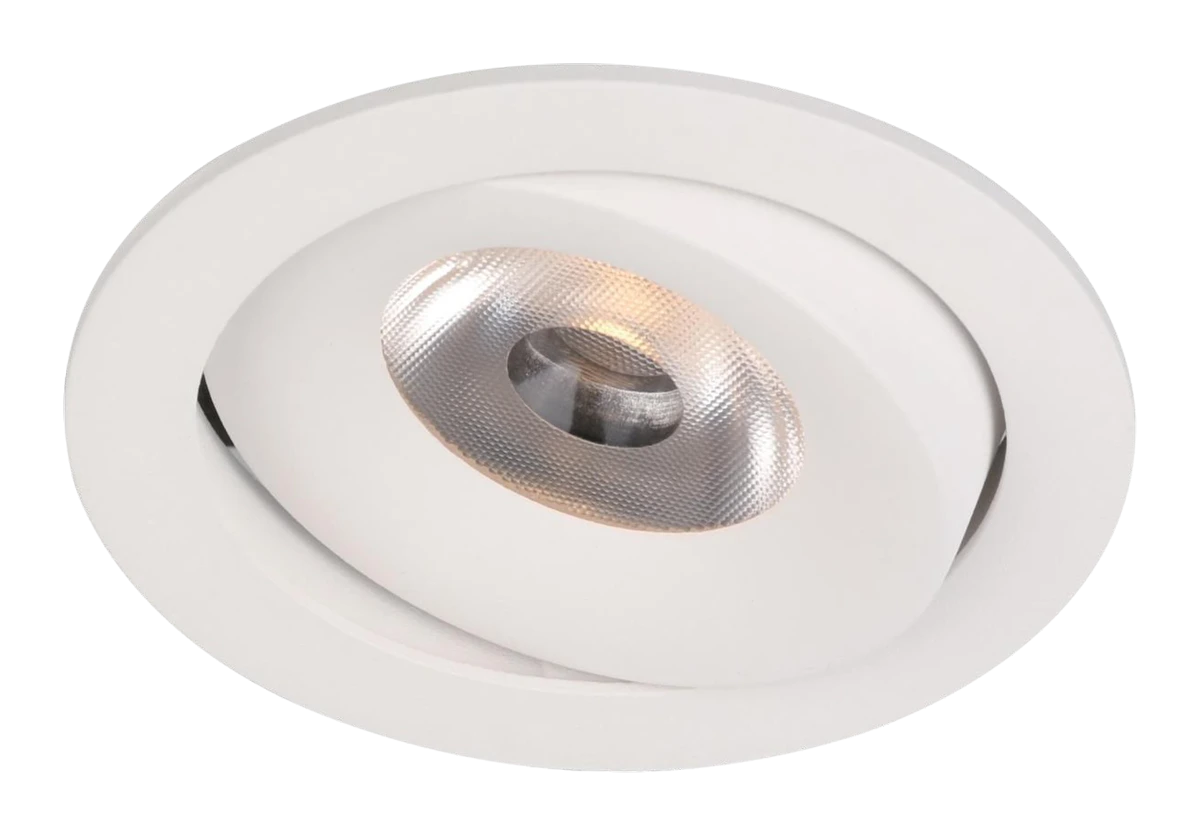

| DL1142 | 13 W | 97 CRI | max 37 V | 1300 lm | Ø104 x H61 mm | 15° 24° 36° 55° | 2700, 3000, 4000 K | Ø92 mm |
| DL0214 | 7 W | 97 CRI | max 19 V | 550 lm | Ø80 x H43 mm | 24° 36° 60° | 2700, 3000, 4000 K | Ø70 mm |
| DL0353 | 7 W | 97 CRI | max 19 V | 550 lm | Ø92 x H38 mm | 15° 24° 36° | 2700, 3000, 4000 K | Ø82 mm |
- LED source
- Citizen
- Colour temperature
- 2700, 3000, 4000 K
- Beam angles
- 15°, 24°, 36°, 55°, 60°
- Mounting
- Recessed
- IP rating
- IP54
- Certifications
- CE
- Note
- 350 mA
Photometry
DL1142. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.
- Power
- 13 W
- Luminous flux
- 1,300 lm
- Efficacy
- 100 lm/W
- Peak intensity
- 16,809 cd
- Field angle (10%)
- 27.3°
- At 3 m
- 1,868 lx, Ø0.79 m
- Power
- 13 W
- Luminous flux
- 1,300 lm
- Efficacy
- 100 lm/W
- Peak intensity
- 6,608 cd
- Field angle (10%)
- 43.7°
- At 3 m
- 734 lx, Ø1.28 m
- Power
- 13 W
- Luminous flux
- 1,300 lm
- Efficacy
- 100 lm/W
- Peak intensity
- 2,976 cd
- Field angle (10%)
- 65.6°
- At 3 m
- 331 lx, Ø1.95 m
- Power
- 13 W
- Luminous flux
- 1,300 lm
- Efficacy
- 100 lm/W
- Peak intensity
- 1,316 cd
- Field angle (10%)
- 100.2°
- At 3 m
- 146 lx, Ø3.12 m
