Technical specifications
| Code | Watt | CRI | Voltage | Flux | Size | Beam | CCT | Cut-out | Notes |
|---|---|---|---|---|---|---|---|---|---|

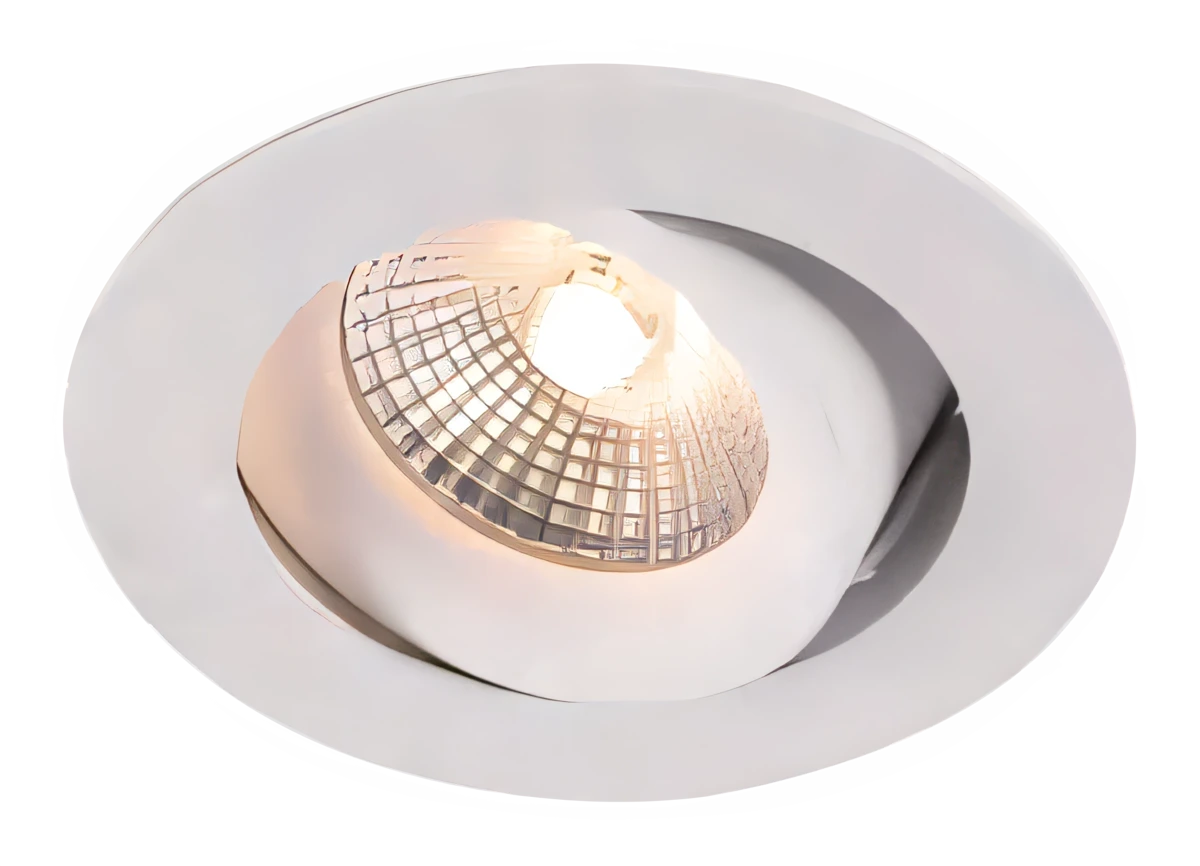

| DL0755 | 7 W | 97 CRI | max 19 V | 580 lm | Ø86 x H40 mm | 24° 36° 60° | 2700, 3000, 4000 K | Ø76 mm | 350 mA |
- LED source
- Citizen
- Colour temperature
- 2700, 3000, 4000 K
- Beam angles
- 24°, 36°, 60°
- Mounting
- Recessed
- IP rating
- IP20
- Certifications
- CE
Photometry
DL0755. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.
- Power
- 7 W
- Luminous flux
- 580 lm
- Efficacy
- 83 lm/W
- Peak intensity
- 2,948 cd
- Field angle (10%)
- 43.7°
- At 3 m
- 328 lx, Ø1.28 m
- Power
- 7 W
- Luminous flux
- 580 lm
- Efficacy
- 83 lm/W
- Peak intensity
- 1,328 cd
- Field angle (10%)
- 65.6°
- At 3 m
- 148 lx, Ø1.95 m
- Power
- 7 W
- Luminous flux
- 580 lm
- Efficacy
- 83 lm/W
- Peak intensity
- 499 cd
- Field angle (10%)
- 109.4°
- At 3 m
- 55 lx, Ø3.46 m
