Technical specifications
| Code | Watt | CRI | Voltage | Flux | Size | Beam | CCT | Cut-out | Notes |
|---|---|---|---|---|---|---|---|---|---|

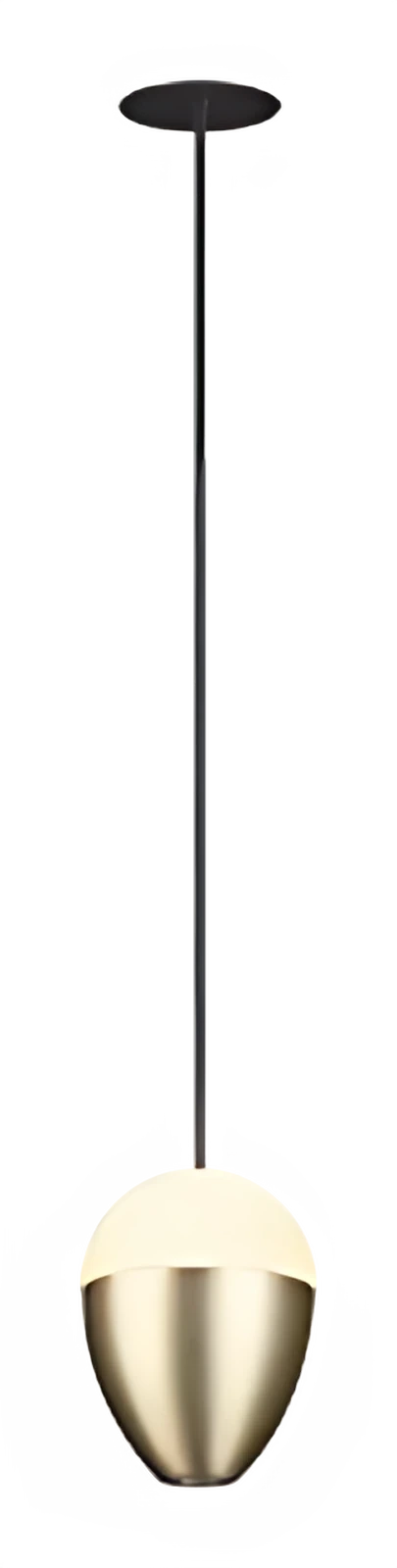

| PH0048 | 7 W | 97 CRI | max 24 V | 630 lm | Egg Ø80 x H105 mm (light aperture Ø27 shown above Ø80 under the egg); recessed canopy 125 flange / Ø67, heights 39 and 65 mm; suspension 0–2000 mm | 15° 24° 36° 50° | 2700, 3000, 4000 K | Ø76 mm | 250 mA |
- LED source
- Citizen
- Colour temperature
- 2700, 3000, 4000 K
- Beam angles
- 15°, 24°, 36°, 50°
- Mounting
- Recessed, Suspended
- IP rating
- IP20
- Certifications
- CE
Photometry
PH0048. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.
- Power
- 7 W
- Luminous flux
- 630 lm
- Efficacy
- 90 lm/W
- Peak intensity
- 8,146 cd
- Field angle (10%)
- 27.3°
- At 3 m
- 905 lx, Ø0.79 m
- Power
- 7 W
- Luminous flux
- 630 lm
- Efficacy
- 90 lm/W
- Peak intensity
- 3,202 cd
- Field angle (10%)
- 43.7°
- At 3 m
- 356 lx, Ø1.28 m
- Power
- 7 W
- Luminous flux
- 630 lm
- Efficacy
- 90 lm/W
- Peak intensity
- 1,442 cd
- Field angle (10%)
- 65.6°
- At 3 m
- 160 lx, Ø1.95 m
- Power
- 7 W
- Luminous flux
- 630 lm
- Efficacy
- 90 lm/W
- Peak intensity
- 764 cd
- Field angle (10%)
- 91.1°
- At 3 m
- 85 lx, Ø2.80 m
