Technical specifications
| Code | Watt | CRI | Flux | Size | CCT |
|---|---|---|---|---|---|

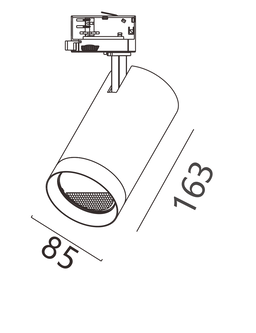

| S3-6185Track, wall washer | 24 W | 97 CRI | 1800–1900 lm | 85 × 163 mm | 3000, 4000 K |
- LED source
- Citizen
- Colour temperature
- 3000, 4000 K
- Control
- Triac, DALI-2, 0–10 V
- Mounting
- Magnetic track, Recessed, Surface
- IP rating
- IP20
- Certifications
- CE, RoHS, EMC, LVD
Photometry
S3-6185. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.
- Power
- 24 W
- Luminous flux
- 1,800 lm
- Efficacy
- 75 lm/W
- Peak intensity
- 2,130 cd
