Technical specifications
| Code | Watt | CRI | Voltage | Flux | Size | Beam | CCT | Cut-out | Notes |
|---|---|---|---|---|---|---|---|---|---|

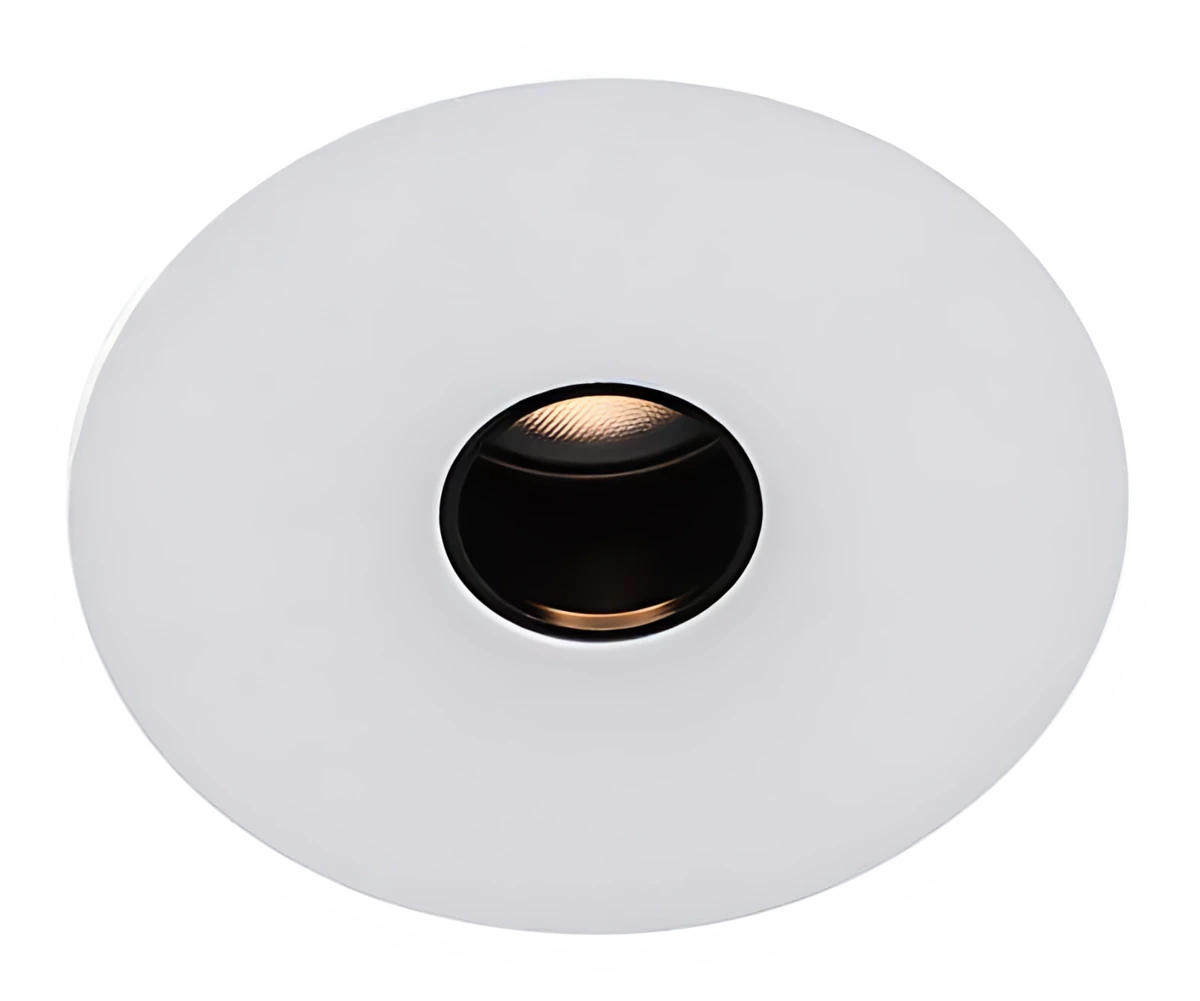

| DL1844 | 10 W | 97 CRI | max 19 V | 550 lm | Ø55 × 85 mm | 24° 36° | 2700, 3000, 4000 K | Ø50 mm | 500 mA |
| DL1845 | 10 W | 97 CRI | max 19 V | 550 lm | Ø55 × 85 mm (plates 113 × 64) | 24° 36° | 2700, 3000, 4000 K | Ø68 mm | 500 mA |
| DL1847 | 13 W | 97 CRI | max 37 V | 780 lm | Ø67 × 84 mm (plates 125 × 75) | 24° 36° | 2700, 3000, 4000 K | Ø76 mm | 350 mA |
| DL1846 | 13 W | 97 CRI | max 37 V | 780 lm | Ø69 × 84 mm | 24° 36° | 2700, 3000, 4000 K | Ø60 mm | 350 mA |
- LED source
- Citizen
- Colour temperature
- 2700, 3000, 4000 K
- Beam angles
- 24°, 36°
- Mounting
- Recessed
- IP rating
- IP20
- Certifications
- CE
Photometry
DL1847. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.
- Power
- 13 W
- Luminous flux
- 780 lm
- Efficacy
- 60 lm/W
- Peak intensity
- 3,965 cd
- Field angle (10%)
- 43.7°
- At 3 m
- 441 lx, Ø1.28 m
- Power
- 13 W
- Luminous flux
- 780 lm
- Efficacy
- 60 lm/W
- Peak intensity
- 1,785 cd
- Field angle (10%)
- 65.6°
- At 3 m
- 198 lx, Ø1.95 m
