Technical specifications
| Code | Watt | CRI | Voltage | Flux | Size | Beam | CCT | Cut-out | Notes |
|---|---|---|---|---|---|---|---|---|---|

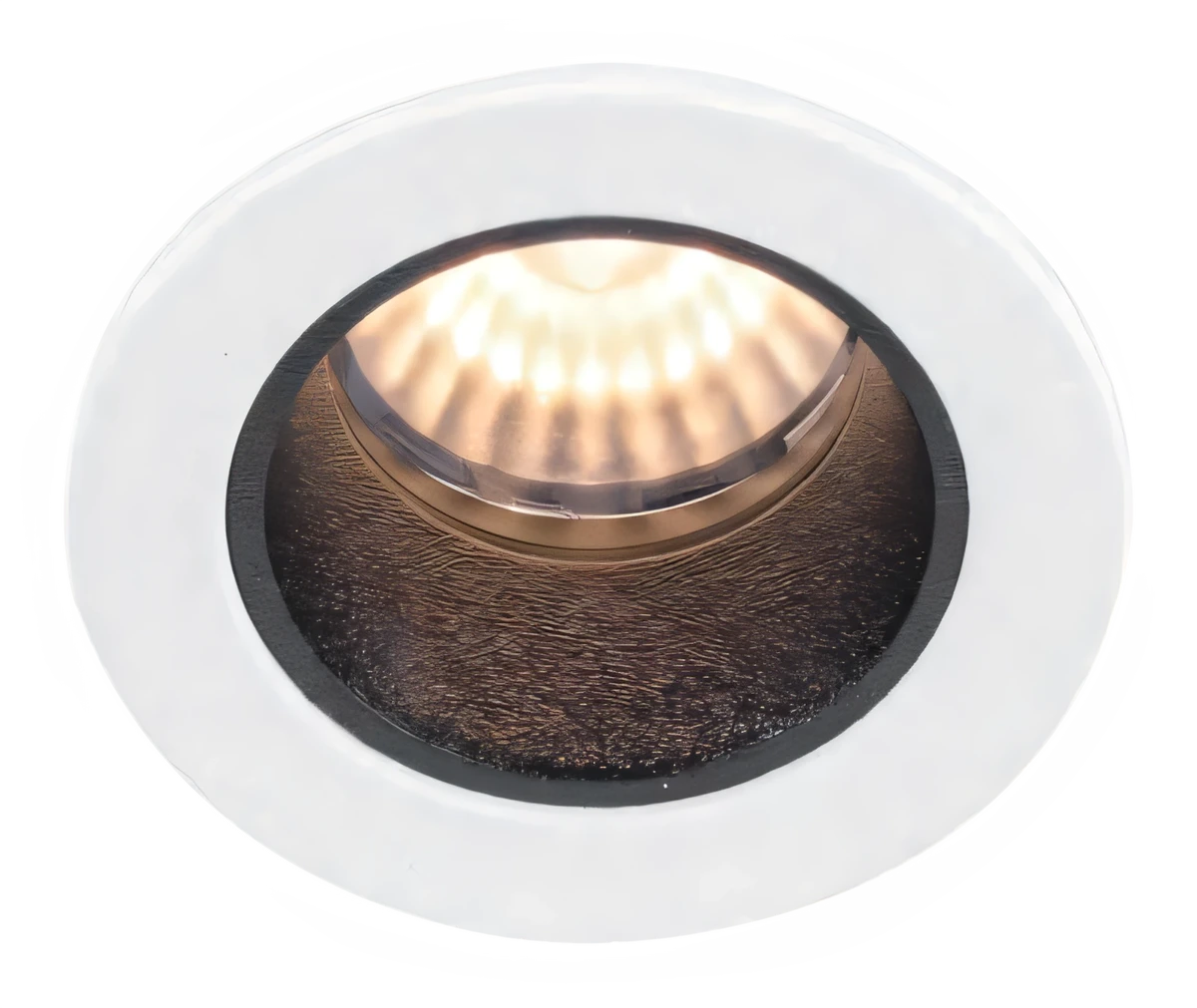

| DL1673 | 3 W | 97 CRI | max 18 V | 270 lm | Ø34 × 56 mm | 15° 24° 36° 50° | 2700, 3000, 4000 K | Ø30 mm | 150 mA |
- LED source
- Citizen
- Colour temperature
- 2700, 3000, 4000 K
- Beam angles
- 15°, 24°, 36°, 50°
- Mounting
- Recessed
- IP rating
- IP20
- Certifications
- CE
Photometry
DL1673. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.
- Power
- 3 W
- Luminous flux
- 270 lm
- Efficacy
- 90 lm/W
- Peak intensity
- 3,491 cd
- Field angle (10%)
- 27.3°
- At 3 m
- 388 lx, Ø0.79 m
- Power
- 3 W
- Luminous flux
- 270 lm
- Efficacy
- 90 lm/W
- Peak intensity
- 1,372 cd
- Field angle (10%)
- 43.7°
- At 3 m
- 152 lx, Ø1.28 m
- Power
- 3 W
- Luminous flux
- 270 lm
- Efficacy
- 90 lm/W
- Peak intensity
- 618 cd
- Field angle (10%)
- 65.6°
- At 3 m
- 69 lx, Ø1.95 m
- Power
- 3 W
- Luminous flux
- 270 lm
- Efficacy
- 90 lm/W
- Peak intensity
- 328 cd
- Field angle (10%)
- 91.1°
- At 3 m
- 36 lx, Ø2.80 m
