Technical specifications
| Code | Watt | CRI | Voltage | Flux | Size | Beam | CCT | Cut-out |
|---|---|---|---|---|---|---|---|---|

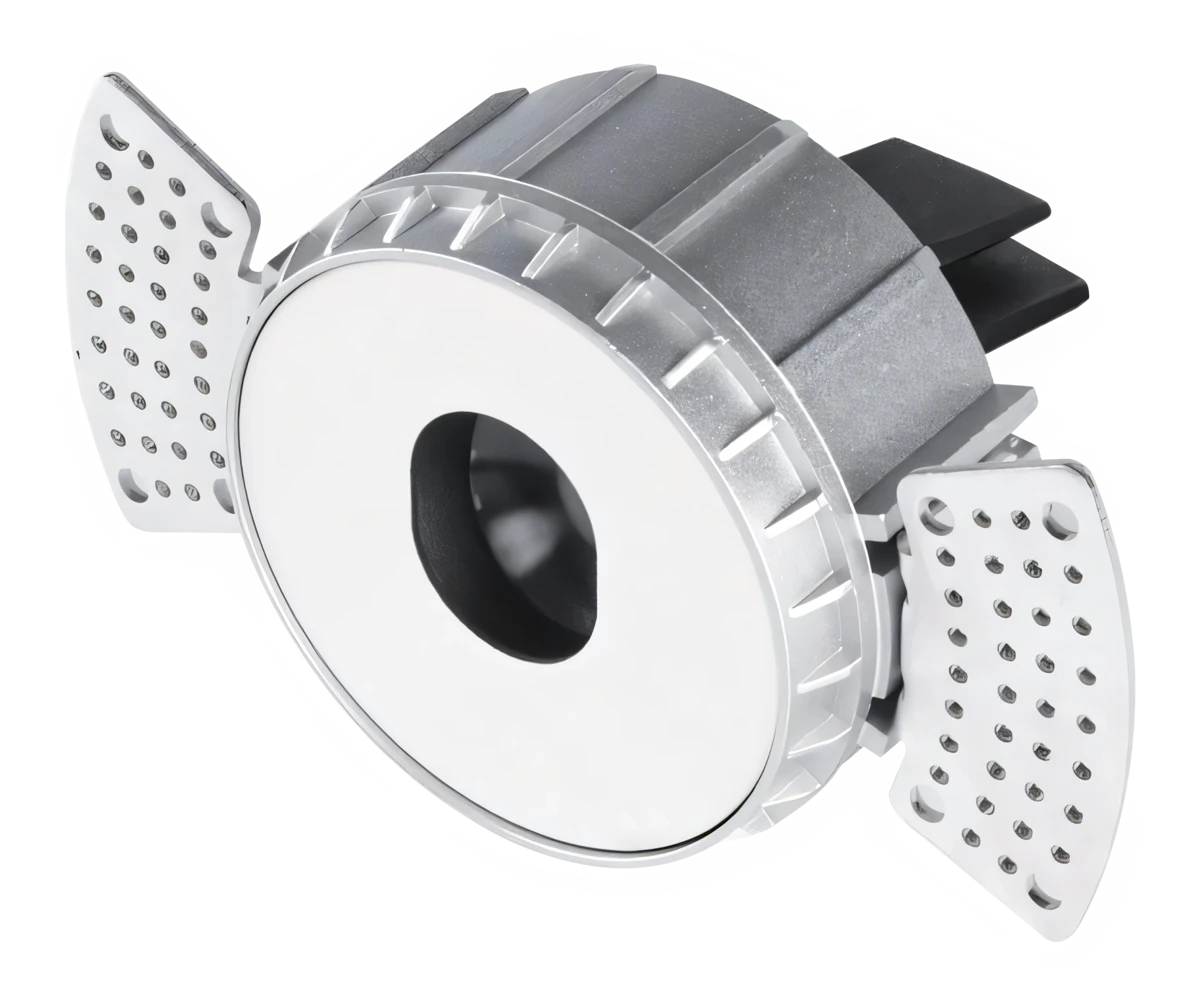

| DL1595 | 10 W | 97 CRI | max 19 V | 800 lm | Ø75, Ø68, 126, H80 mm | 15° 24° 36° 50° | 2700, 3000, 4000 K | Ø76 mm |
| DL1593 | 10 W | 97 CRI | max 19 V | 800 lm | Ø70 x H82 mm | 15° 24° 36° 50° | 2700, 3000, 4000 K | Ø65 mm |
- LED source
- Citizen
- Colour temperature
- 2700, 3000, 4000 K
- Beam angles
- 15°, 24°, 36°, 50°
- Mounting
- Recessed
- IP rating
- IP20
- Certifications
- CE
- Note
- 500 mA
Photometry
DL1595. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.
- Power
- 10 W
- Luminous flux
- 800 lm
- Efficacy
- 80 lm/W
- Peak intensity
- 10,344 cd
- Field angle (10%)
- 27.3°
- At 3 m
- 1,149 lx, Ø0.79 m
- Power
- 10 W
- Luminous flux
- 800 lm
- Efficacy
- 80 lm/W
- Peak intensity
- 4,067 cd
- Field angle (10%)
- 43.7°
- At 3 m
- 452 lx, Ø1.28 m
- Power
- 10 W
- Luminous flux
- 800 lm
- Efficacy
- 80 lm/W
- Peak intensity
- 1,831 cd
- Field angle (10%)
- 65.6°
- At 3 m
- 203 lx, Ø1.95 m
- Power
- 10 W
- Luminous flux
- 800 lm
- Efficacy
- 80 lm/W
- Peak intensity
- 970 cd
- Field angle (10%)
- 91.1°
- At 3 m
- 108 lx, Ø2.80 m
