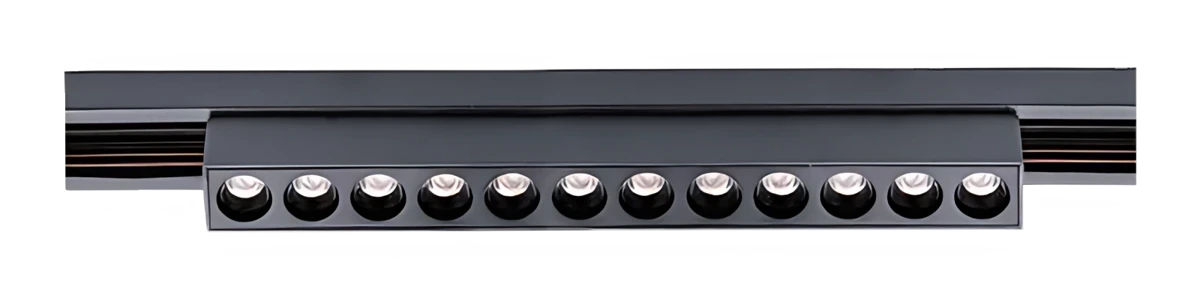

Tour TR0180

Technical specifications

CodeWattCRIVoltageFluxSizeBeamCCT
TR018015 W97 CRI48 V DC1180 lmL220 x W22 x H25 mm24° 36°2700, 3000, 4000 K
LED source
Citizen
Colour temperature
2700, 3000, 4000 K
Beam angles
24°, 36°
Mounting
Magnetic track
IP rating
IP20
Certifications
CE, Class III

Photometry

TR0180. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.

0°30°60°30°60° 25425083 cd/klm C0–C180 C90–C270
24°
Power
15 W
Luminous flux
1,180 lm
Efficacy
79 lm/W
Peak intensity
5,998 cd
Field angle (10%)
43.7°
At 3 m
666 lx, Ø1.28 m
0°30°60°30°60° 11452289 cd/klm C0–C180 C90–C270
36°
Power
15 W
Luminous flux
1,180 lm
Efficacy
79 lm/W
Peak intensity
2,701 cd
Field angle (10%)
65.6°
At 3 m
300 lx, Ø1.95 m
