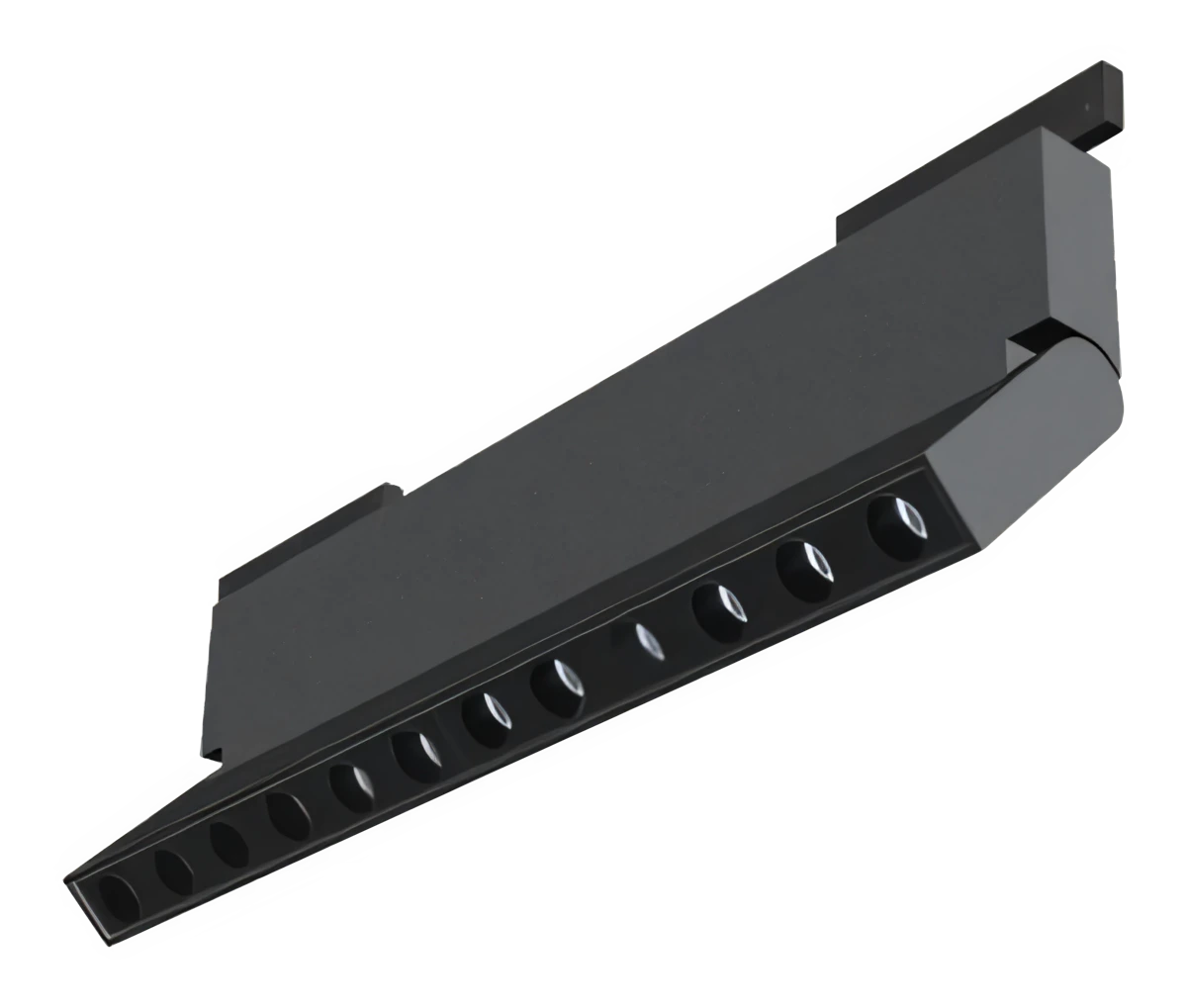

Tour Forty8 TR0295

Technical specifications

CodeWattCRIVoltageFluxSizeBeamCCT
TR029513 W97 CRI48 V DC1040 lm249 × 85 mm24° 36°2700, 3000, 4000 K
LED source
Citizen
Colour temperature
2700, 3000, 4000 K
Beam angles
24°, 36°
Mounting
Magnetic track
IP rating
IP20
Certifications
CE

Photometry

TR0295. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.

0°30°60°30°60° 25425083 cd/klm C0–C180 C90–C270
24°
Power
13 W
Luminous flux
1,040 lm
Efficacy
80 lm/W
Peak intensity
5,286 cd
Field angle (10%)
43.7°
At 3 m
587 lx, Ø1.28 m
0°30°60°30°60° 11452289 cd/klm C0–C180 C90–C270
36°
Power
13 W
Luminous flux
1,040 lm
Efficacy
80 lm/W
Peak intensity
2,381 cd
Field angle (10%)
65.6°
At 3 m
265 lx, Ø1.95 m
