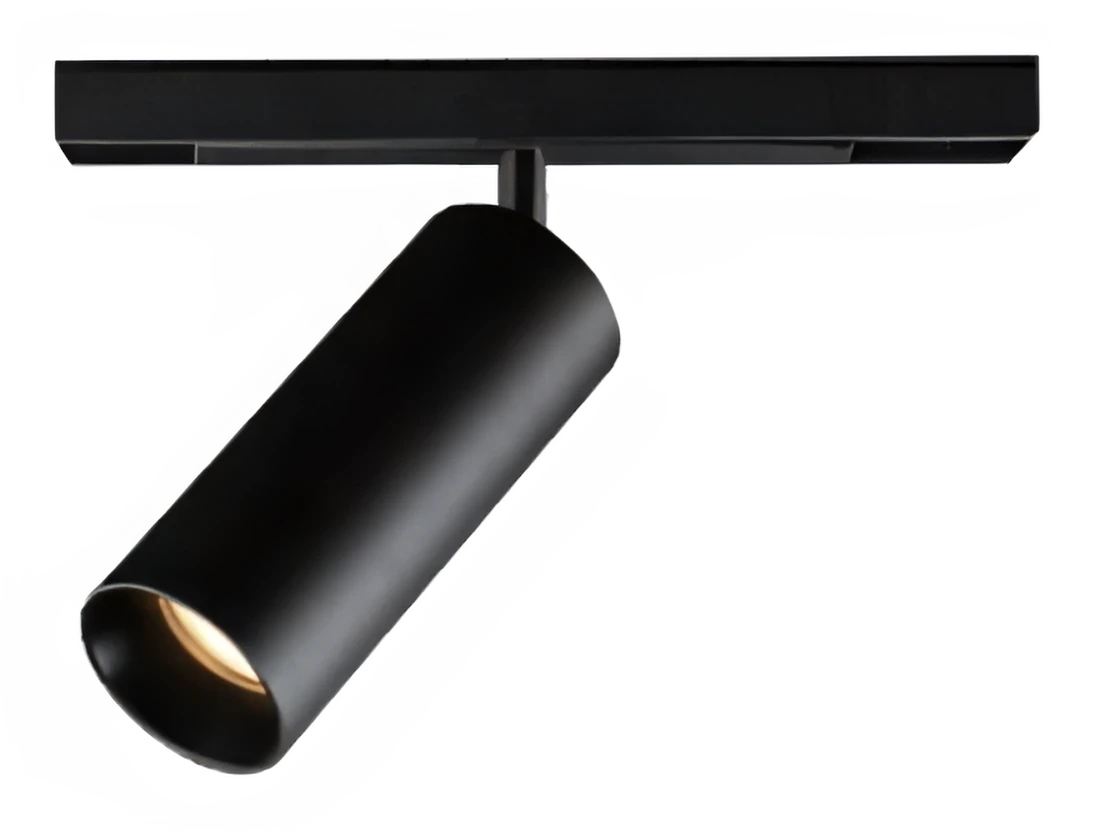

Tour TR0173

Technical specifications

CodeWattCRIVoltageFluxSizeBeamCCT

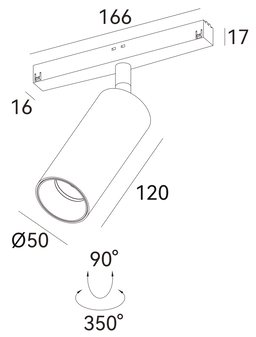

TR017310 W97 CRI48 V DC900 lmØ50 × 120 mm15° 24° 36° 50°2700, 3000, 4000 K
LED source
Citizen
Colour temperature
2700, 3000, 4000 K
Beam angles
15°, 24°, 36°, 50°
Mounting
Magnetic track
IP rating
IP20
Certifications
CE, Class III

Photometry

TR0173. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.

0°30°60°30°60° 646512930 cd/klm C0–C180 C90–C270
15°
Power
10 W
Luminous flux
900 lm
Efficacy
90 lm/W
Peak intensity
11,637 cd
Field angle (10%)
27.3°
At 3 m
1,293 lx, Ø0.79 m
0°30°60°30°60° 25425083 cd/klm C0–C180 C90–C270
24°
Power
10 W
Luminous flux
900 lm
Efficacy
90 lm/W
Peak intensity
4,575 cd
Field angle (10%)
43.7°
At 3 m
508 lx, Ø1.28 m
0°30°60°30°60° 11452289 cd/klm C0–C180 C90–C270
36°
Power
10 W
Luminous flux
900 lm
Efficacy
90 lm/W
Peak intensity
2,060 cd
Field angle (10%)
65.6°
At 3 m
229 lx, Ø1.95 m
0°30°60°30°60° 6071213 cd/klm C0–C180 C90–C270
50°
Power
10 W
Luminous flux
900 lm
Efficacy
90 lm/W
Peak intensity
1,092 cd
Field angle (10%)
91.1°
At 3 m
121 lx, Ø2.80 m
