Technical specifications
| Code | Watt | CRI | Voltage | Flux | Size | Beam | CCT |
|---|---|---|---|---|---|---|---|

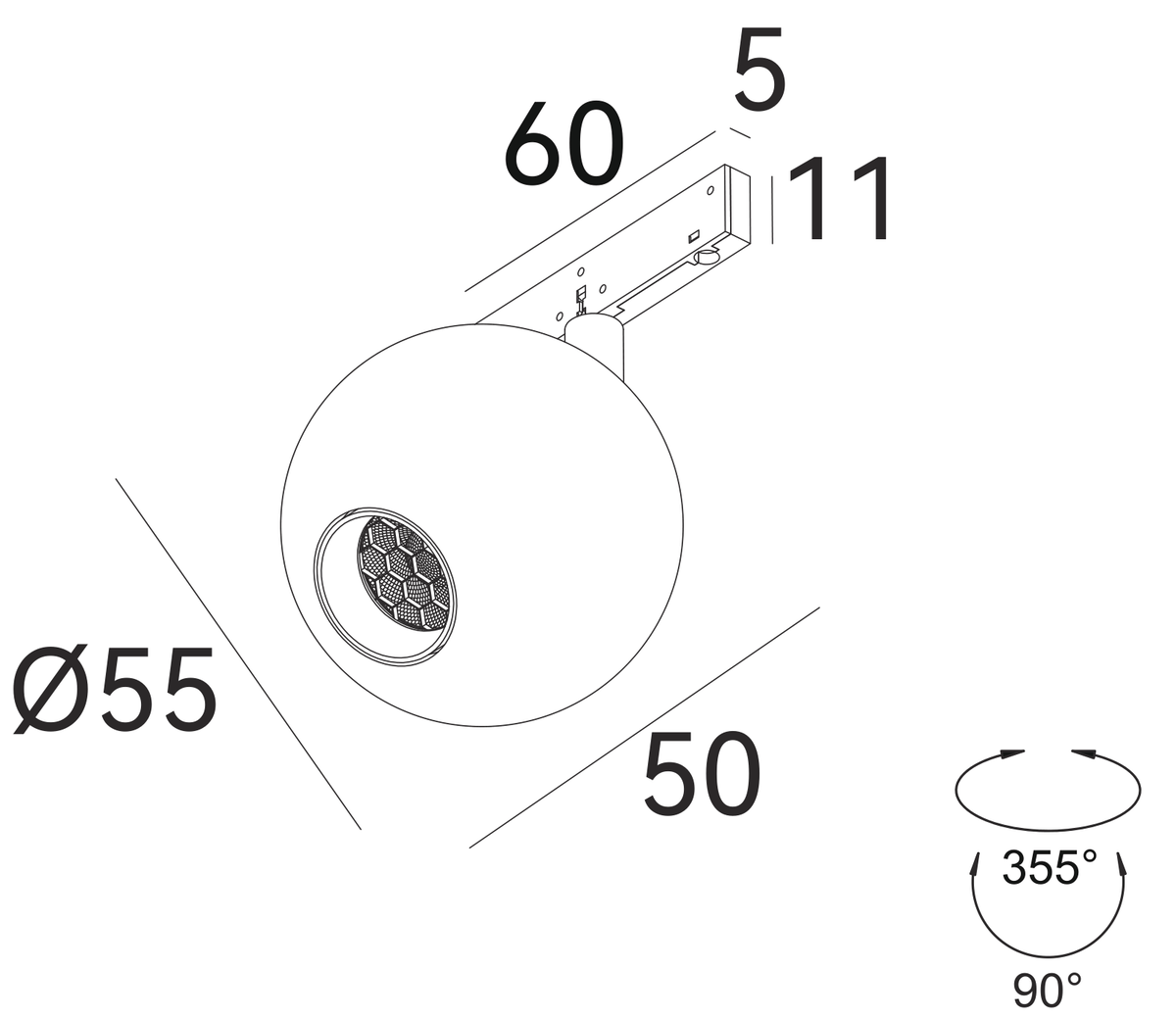

| TR0276 | 7 W | 97 CRI | 48 V DC | 560 lm | Ø55 × 50 mm | 15° 24° 36° 55° | 2700, 3000, 4000 K |
- LED source
- Citizen
- Colour temperature
- 2700, 3000, 4000 K
- Beam angles
- 15°, 24°, 36°, 55°
- Mounting
- Magnetic track
- IP rating
- IP20
- Certifications
- CE
Photometry
TR0276. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: measured with a goniophotometer where marked, otherwise calculated from catalogue data.
- Data
- Measured, 25 July 2025
- Power
- 6.7 W, 3000 K
- Luminous flux
- 351 lm
- Efficacy
- 52 lm/W
- Peak intensity
- 1,369 cd
- Beam angle (50%)
- 27.6°
- Field angle (10%)
- 47°
- At 3 m
- 134 lx, Ø1.47 m
- Data
- Measured, 25 July 2025
- Power
- 6.7 W, 3000 K
- Luminous flux
- 486 lm
- Efficacy
- 73 lm/W
- Peak intensity
- 1,133 cd
- Beam angle (50%)
- 36.8°
- Field angle (10%)
- 61.1°
- At 3 m
- 112 lx, Ø2.00 m
- Data
- Measured, 25 July 2025
- Power
- 6.7 W, 3000 K
- Luminous flux
- 449 lm
- Efficacy
- 67 lm/W
- Peak intensity
- 752 cd
- Beam angle (50%)
- 46.4°
- Field angle (10%)
- 74.4°
- At 3 m
- 71 lx, Ø2.57 m
- Power
- 7 W
- Luminous flux
- 560 lm
- Efficacy
- 80 lm/W
- Peak intensity
- 567 cd
- Field angle (10%)
- 100.2°
- At 3 m
- 63 lx, Ø3.12 m
