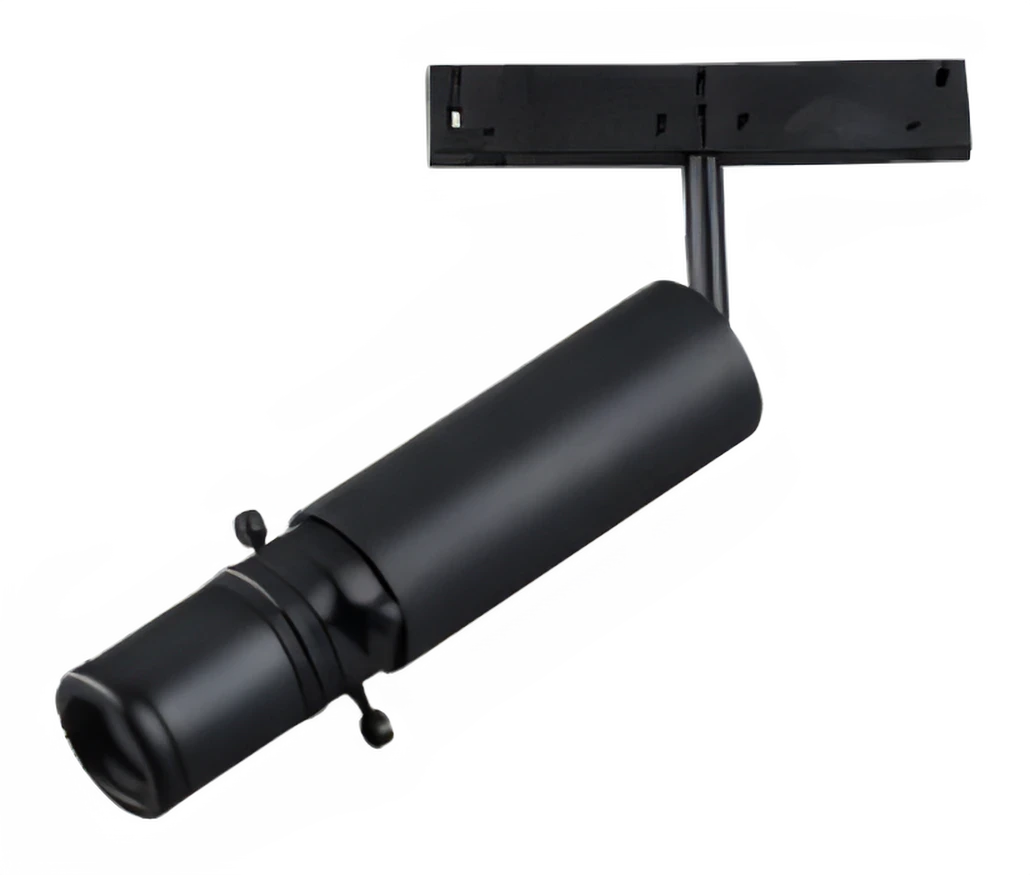

Tour Forty8 TR0293

Technical specifications

CodeWattCRIVoltageFluxSizeBeamCCT
TR029315–36°3 W97 CRI48 V DC240 lmØ20 × 84 mm15° 24° 36° 60°2700, 3000, 4000 K
LED source
Citizen
Colour temperature
2700, 3000, 4000 K
Beam angles
15°, 24°, 36°, 60°
Mounting
Magnetic track
IP rating
IP20
Certifications
CE

Photometry

TR0293. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.

0°30°60°30°60° 646512930 cd/klm C0–C180 C90–C270
15°
Power
3 W
Luminous flux
240 lm
Efficacy
80 lm/W
Peak intensity
3,103 cd
Field angle (10%)
27.3°
At 3 m
345 lx, Ø0.79 m
0°30°60°30°60° 25425083 cd/klm C0–C180 C90–C270
24°
Power
3 W
Luminous flux
240 lm
Efficacy
80 lm/W
Peak intensity
1,220 cd
Field angle (10%)
43.7°
At 3 m
136 lx, Ø1.28 m
0°30°60°30°60° 11452289 cd/klm C0–C180 C90–C270
36°
Power
3 W
Luminous flux
240 lm
Efficacy
80 lm/W
Peak intensity
549 cd
Field angle (10%)
65.6°
At 3 m
61 lx, Ø1.95 m
0°30°60°30°60° 430860 cd/klm C0–C180 C90–C270
60°
Power
3 W
Luminous flux
240 lm
Efficacy
80 lm/W
Peak intensity
206 cd
Field angle (10%)
109.4°
At 3 m
23 lx, Ø3.46 m
