Technical specifications
| Code | Watt | CRI | Voltage | Flux | Size | Beam | CCT |
|---|---|---|---|---|---|---|---|

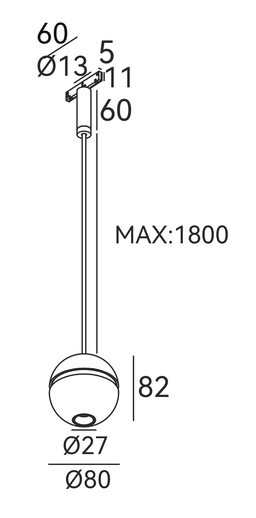

| TR0284 | 7 W | 97 CRI | 48 V DC | 560 lm | Ø80 × 82 mm | 15° 24° 36° 50° | 2700, 3000, 4000 K |
- LED source
- Citizen
- Colour temperature
- 2700, 3000, 4000 K
- Beam angles
- 15°, 24°, 36°, 50°
- Mounting
- Magnetic track, Suspended
- IP rating
- IP20
- Certifications
- CE
Photometry
TR0284. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.
- Power
- 7 W
- Luminous flux
- 560 lm
- Efficacy
- 80 lm/W
- Peak intensity
- 7,241 cd
- Field angle (10%)
- 27.3°
- At 3 m
- 805 lx, Ø0.79 m
- Power
- 7 W
- Luminous flux
- 560 lm
- Efficacy
- 80 lm/W
- Peak intensity
- 2,847 cd
- Field angle (10%)
- 43.7°
- At 3 m
- 316 lx, Ø1.28 m
- Power
- 7 W
- Luminous flux
- 560 lm
- Efficacy
- 80 lm/W
- Peak intensity
- 1,282 cd
- Field angle (10%)
- 65.6°
- At 3 m
- 142 lx, Ø1.95 m
- Power
- 7 W
- Luminous flux
- 560 lm
- Efficacy
- 80 lm/W
- Peak intensity
- 679 cd
- Field angle (10%)
- 91.1°
- At 3 m
- 75 lx, Ø2.80 m
