Technical specifications
| Code | Watt | CRI | Voltage | Flux | Size | Beam | CCT |
|---|---|---|---|---|---|---|---|

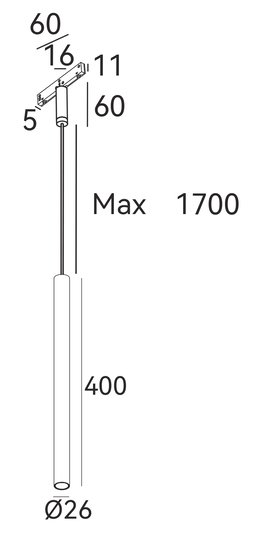

| TR0271 | 7 W | 97 CRI | 48 V DC | 560 lm | Ø26 × 400 mm | 35° 50° | 2700, 3000, 4000 K |
- LED source
- Citizen
- Colour temperature
- 2700, 3000, 4000 K
- Beam angles
- 35°, 50°
- Mounting
- Magnetic track, Suspended
- IP rating
- IP20
- Certifications
- CE
Photometry
TR0271. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.
- Power
- 7 W
- Luminous flux
- 560 lm
- Efficacy
- 80 lm/W
- Peak intensity
- 1,354 cd
- Field angle (10%)
- 63.8°
- At 3 m
- 150 lx, Ø1.89 m
- Power
- 7 W
- Luminous flux
- 560 lm
- Efficacy
- 80 lm/W
- Peak intensity
- 679 cd
- Field angle (10%)
- 91.1°
- At 3 m
- 75 lx, Ø2.80 m
