Technical specifications
| Code | Watt | CRI | Voltage | Flux | Size | CCT | Cut-out | Notes |
|---|---|---|---|---|---|---|---|---|

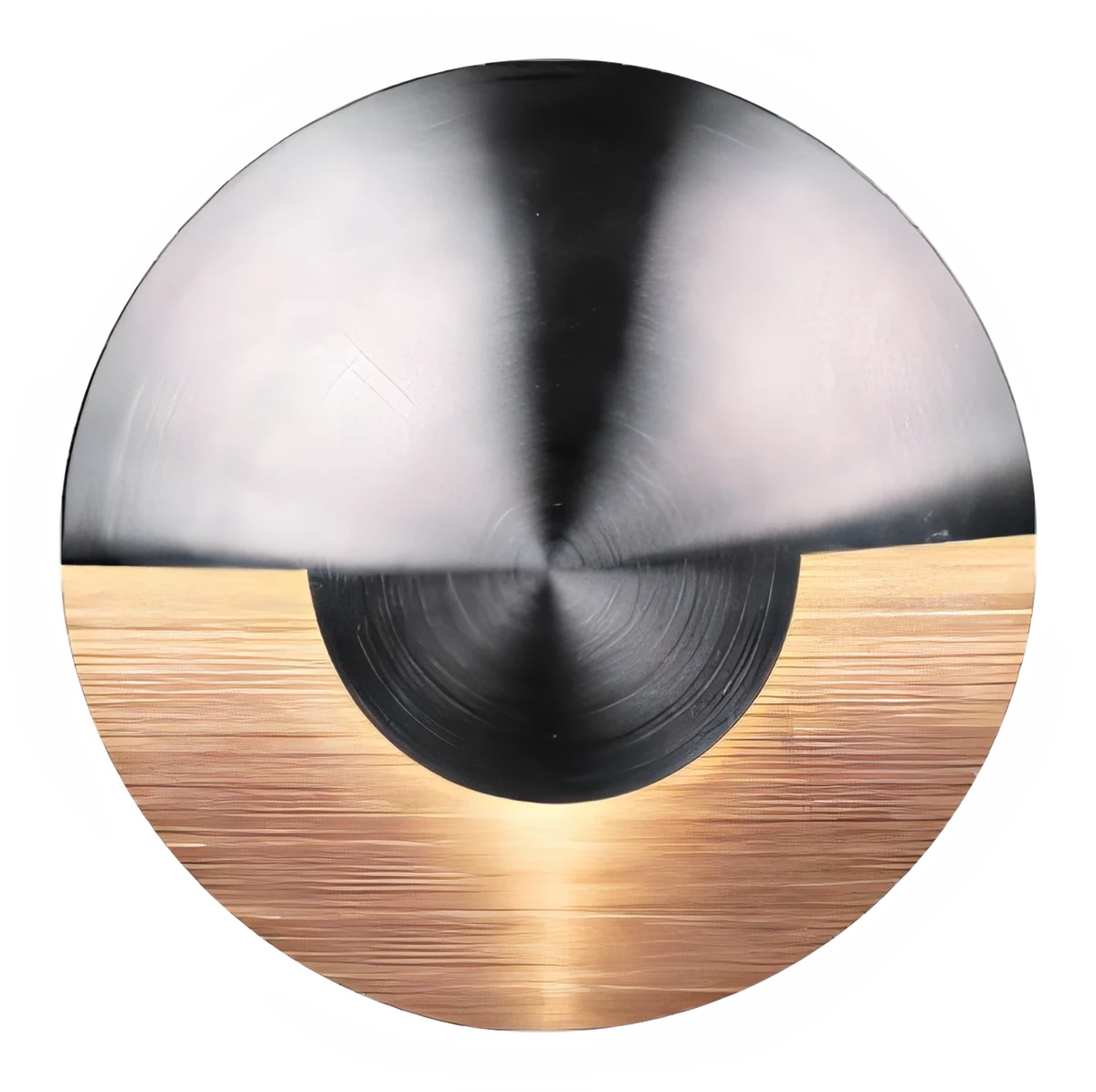

| DL1635316L stainless steel inground, 24 V DC 3 W | 3 W | 97 CRI | 24 V DC | 160 lm | Ø56 × 65 mm | 2700, 3000, 4000 K | Ø49 mm | — |
| DL1640 | — | 97 CRI | max 3 V, 24 V DC | 40 lm | Ø37 × 51 mm | 2700, 3000, 4000 K | Ø34 mm | 350 / 700 mA |
| DL1713 | 1 W | 97 CRI | 24 V DC | 150 lm | Ø56 × 33 mm | 2700, 3000, 4000 K | Ø49 mm | — |
| WL0045 | 5 W | 97 CRI | 230 V AC | 450 lm | W131 x H86 x D67 mm | 2700, 3000, 4000 K | Ø116 mm | — |
- LED source
- Citizen
- Colour temperature
- 2700, 3000, 4000 K
- Mounting
- Recessed, Wall, Floor
- IP rating
- IP65/67
- Certifications
- CE
Photometry
WL0045. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.
- Power
- 5 W
- Luminous flux
- 450 lm
- Efficacy
- 90 lm/W
- Peak intensity
- 143 cd
- Field angle (10%)
- 168.5°
- At 3 m
- 16 lx, Ø10.39 m
