Technical specifications
| Code | CRI | Voltage | Flux | Size | CCT | Cut-out | Notes |
|---|---|---|---|---|---|---|---|

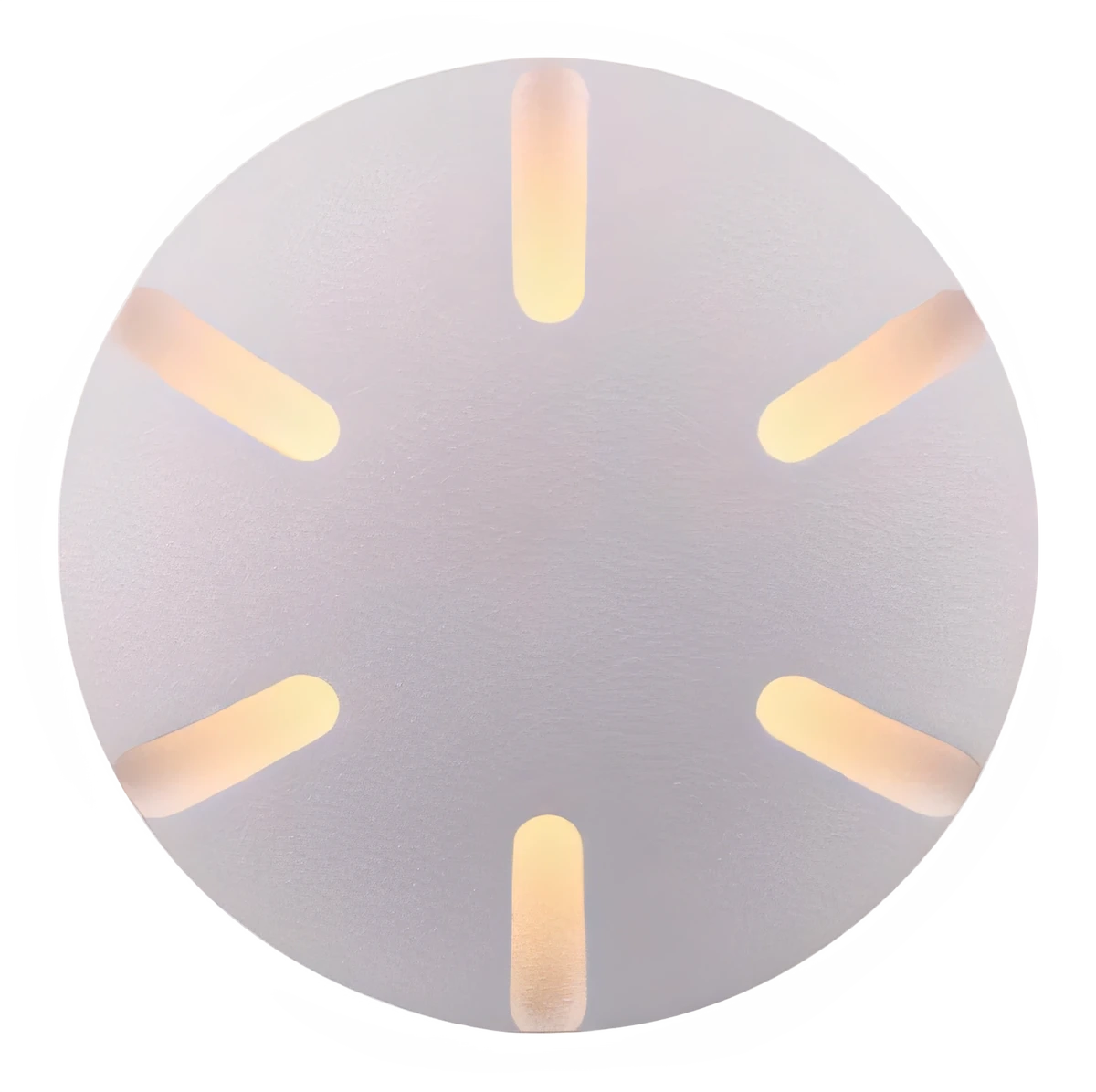

| DL1701 | 97 CRI | max 3 V | 80 / 160 lm | Ø50 × 39 mm | 2700, 3000, 4000 K | Ø40 mm | 350 / 700 mA |
- LED source
- Citizen
- Colour temperature
- 2700, 3000, 4000 K
- Mounting
- Recessed, Wall, Floor
- IP rating
- IP67
- Certifications
- CE
Photometry
DL1701. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.
- Luminous flux
- 80 lm
- Peak intensity
- 25 cd
- Field angle (10%)
- 168.5°
- At 3 m
- 3 lx, Ø10.39 m
