Technical specifications
| Code | Watt | CRI | Voltage | Flux | Size | CCT | Cut-out |
|---|---|---|---|---|---|---|---|

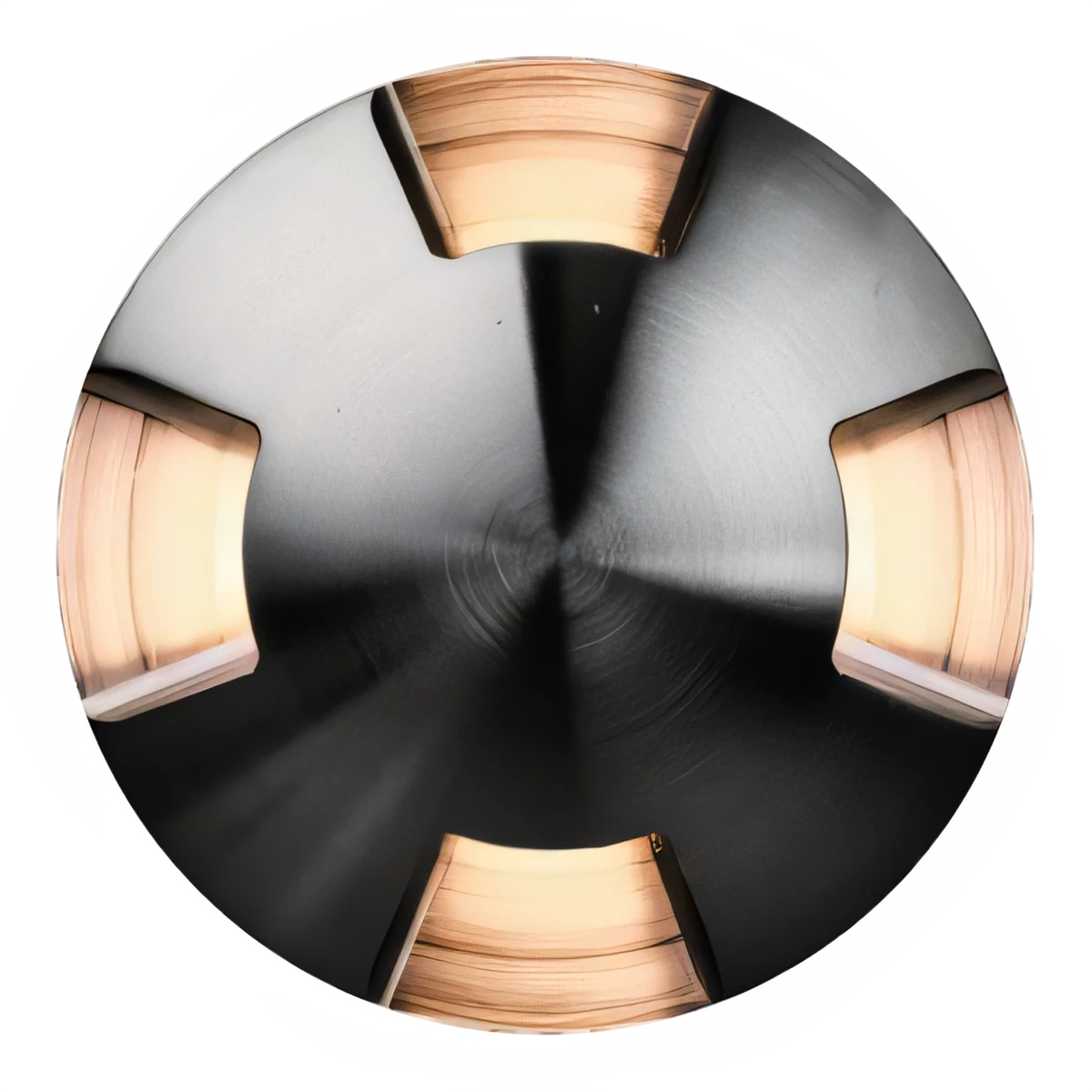

| DL1541316L stainless steel inground, 24 V DC 3 W | 3 W | 97 CRI | 24 V DC | 160 lm | Ø56 × 65 mm | 2700, 3000, 4000 K | Ø49 mm |
- LED source
- Citizen
- Colour temperature
- 2700, 3000, 4000 K
- Mounting
- Recessed, Wall, Floor
- IP rating
- IP67
- Certifications
- CE
Photometry
DL1541. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.
- Power
- 3 W
- Luminous flux
- 160 lm
- Efficacy
- 53 lm/W
- Peak intensity
- 51 cd
- Field angle (10%)
- 168.5°
- At 3 m
- 6 lx, Ø10.39 m
