Technical specifications
| Code | Watt | CRI | Voltage | Size | Beam | CCT | Cut-out |
|---|---|---|---|---|---|---|---|

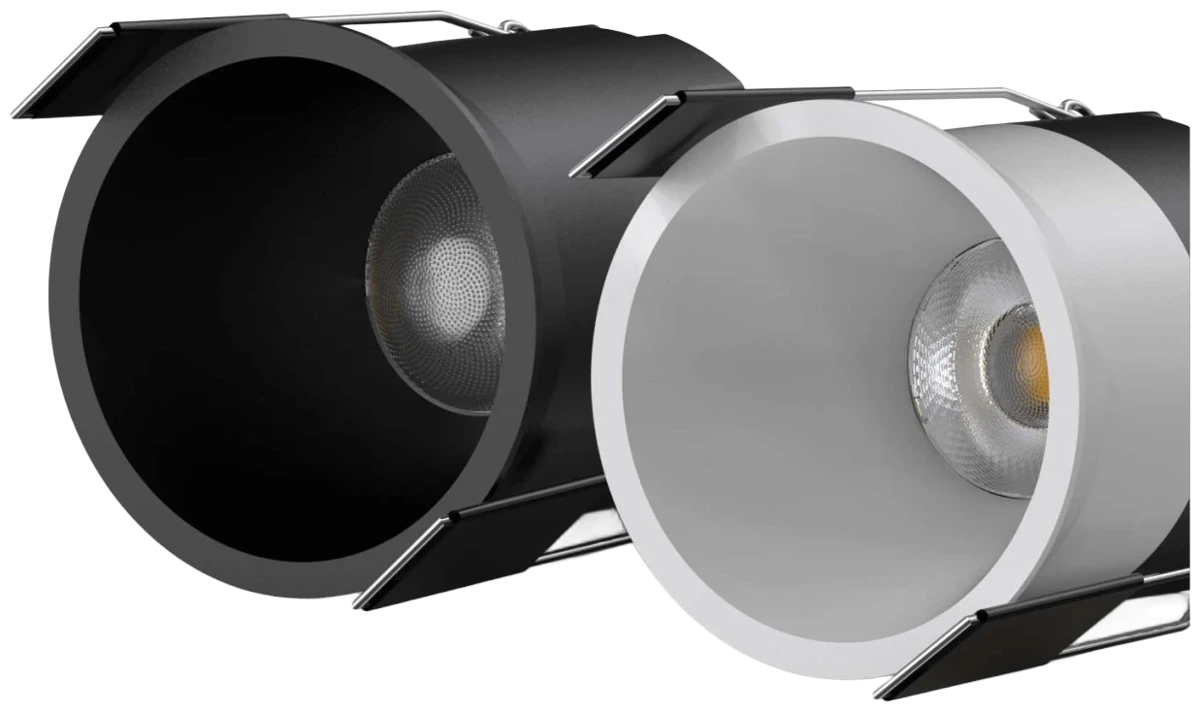

| SR-RE03B-1001 | 10 W | 97 CRI | 36 V | Ø61, height 66 mm | 24° 36° 60° | 3000, 4000, 6000 K | Ø56 mm |
| SR-RE03B-1001Recessed | 10 W | 97 CRI | 36 V | Ø61 × 66 mm | 24° 36° 60° | 3000, 4000, 6000 K | Ø56 mm |
- LED source
- Citizen
- Colour temperature
- 3000, 4000, 6000 K
- Beam angles
- 24°, 36°, 60°
- Control
- On/Off, Triac
- Mounting
- Recessed
- IP rating
- IP20
- Note
- 250 mA
Photometry
SR-RE03B-1001. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: estimated from catalogue data, not measured.
- Power
- 10 W
- Luminous flux
- 750 lm
- Efficacy
- 75 lm/W
- Peak intensity
- 3,812 cd
- Field angle (10%)
- 43.7°
- At 3 m
- 424 lx, Ø1.28 m
- Power
- 10 W
- Luminous flux
- 750 lm
- Efficacy
- 75 lm/W
- Peak intensity
- 1,717 cd
- Field angle (10%)
- 65.6°
- At 3 m
- 191 lx, Ø1.95 m
- Power
- 10 W
- Luminous flux
- 750 lm
- Efficacy
- 75 lm/W
- Peak intensity
- 645 cd
- Field angle (10%)
- 109.4°
- At 3 m
- 72 lx, Ø3.46 m
