Technical specifications
| Code | Watt | CRI | Voltage | Beam | CCT | Notes |
|---|---|---|---|---|---|---|

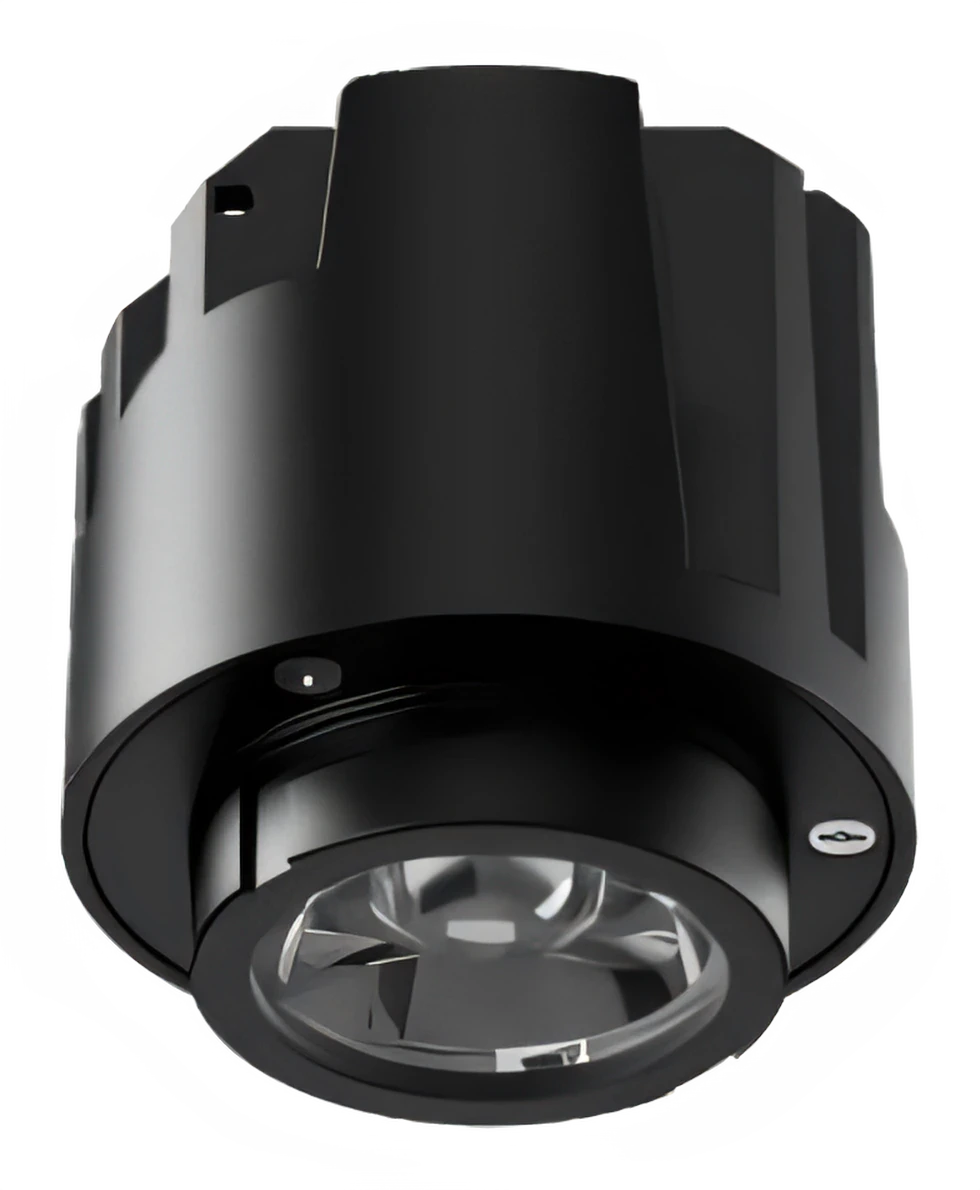

| Global-10AModule IP44/65 | 10 W | 97 CRI | 36 V | 15° 24° 36° 50° | 3000, 4000 K | 250 mA |
- LED source
- Citizen
- Colour temperature
- 3000, 4000 K
- Beam angles
- 15°, 24°, 36°, 50°
- Control
- On/Off, Triac
- Mounting
- Recessed
- IP rating
- IP44/65
Photometry
Global-10A. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: estimated from catalogue data, not measured.
- Power
- 10 W
- Luminous flux
- 750 lm
- Efficacy
- 75 lm/W
- Peak intensity
- 9,697 cd
- Field angle (10%)
- 27.3°
- At 3 m
- 1,077 lx, Ø0.79 m
- Power
- 10 W
- Luminous flux
- 750 lm
- Efficacy
- 75 lm/W
- Peak intensity
- 3,812 cd
- Field angle (10%)
- 43.7°
- At 3 m
- 424 lx, Ø1.28 m
- Power
- 10 W
- Luminous flux
- 750 lm
- Efficacy
- 75 lm/W
- Peak intensity
- 1,717 cd
- Field angle (10%)
- 65.6°
- At 3 m
- 191 lx, Ø1.95 m
- Power
- 10 W
- Luminous flux
- 750 lm
- Efficacy
- 75 lm/W
- Peak intensity
- 910 cd
- Field angle (10%)
- 91.1°
- At 3 m
- 101 lx, Ø2.80 m
