Technical specifications
| Code | Watt | CRI | Flux | Size | Beam | CCT |
|---|---|---|---|---|---|---|

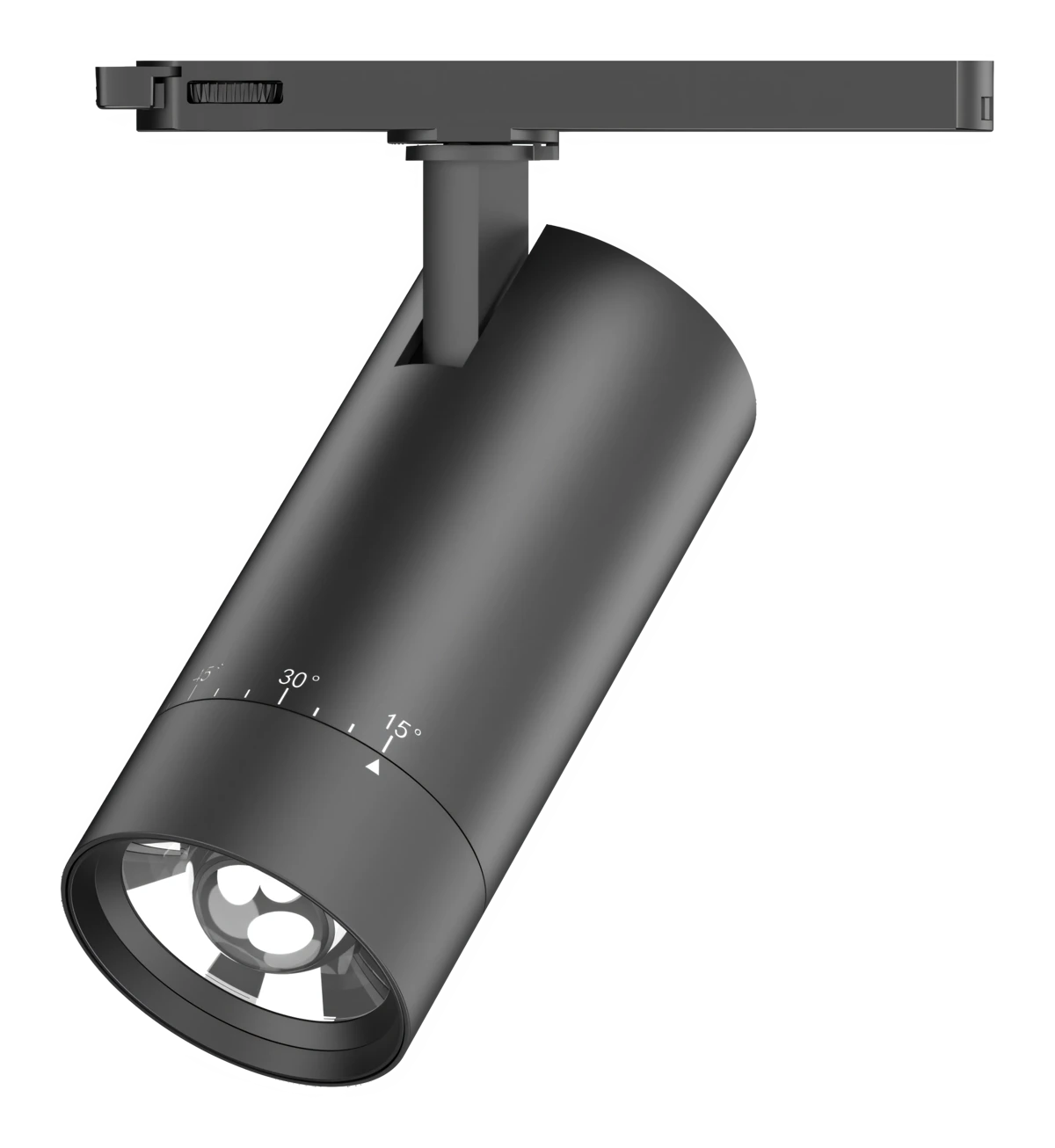

| S3-4255 | 30 W | 97 CRI | 3100–3200 lm | 85 × 165 mm | 15° 60° | 3000, 4000 K |
- LED source
- Citizen
- Colour temperature
- 3000, 4000 K
- Beam angles
- 15°, 60°
- Control
- Triac, Casambi, DALI, 0–10 V
- Mounting
- Magnetic track
- IP rating
- IP20
- Certifications
- CE, RoHS, EMC, LVD
Photometry
S3-4255. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.
- Power
- 30 W
- Luminous flux
- 1,099 lm
- Efficacy
- 37 lm/W
- Peak intensity
- 14,215 cd
- Field angle (10%)
- 27.3°
- At 3 m
- 1,579 lx, Ø0.79 m
- Power
- 30 W
- Luminous flux
- 4,408 lm
- Efficacy
- 147 lm/W
- Peak intensity
- 3,792 cd
- Field angle (10%)
- 109.4°
- At 3 m
- 421 lx, Ø3.46 m
