Technical specifications
| Code | Watt | CRI | Voltage | Flux | Size | Beam | CCT | Cut-out |
|---|---|---|---|---|---|---|---|---|

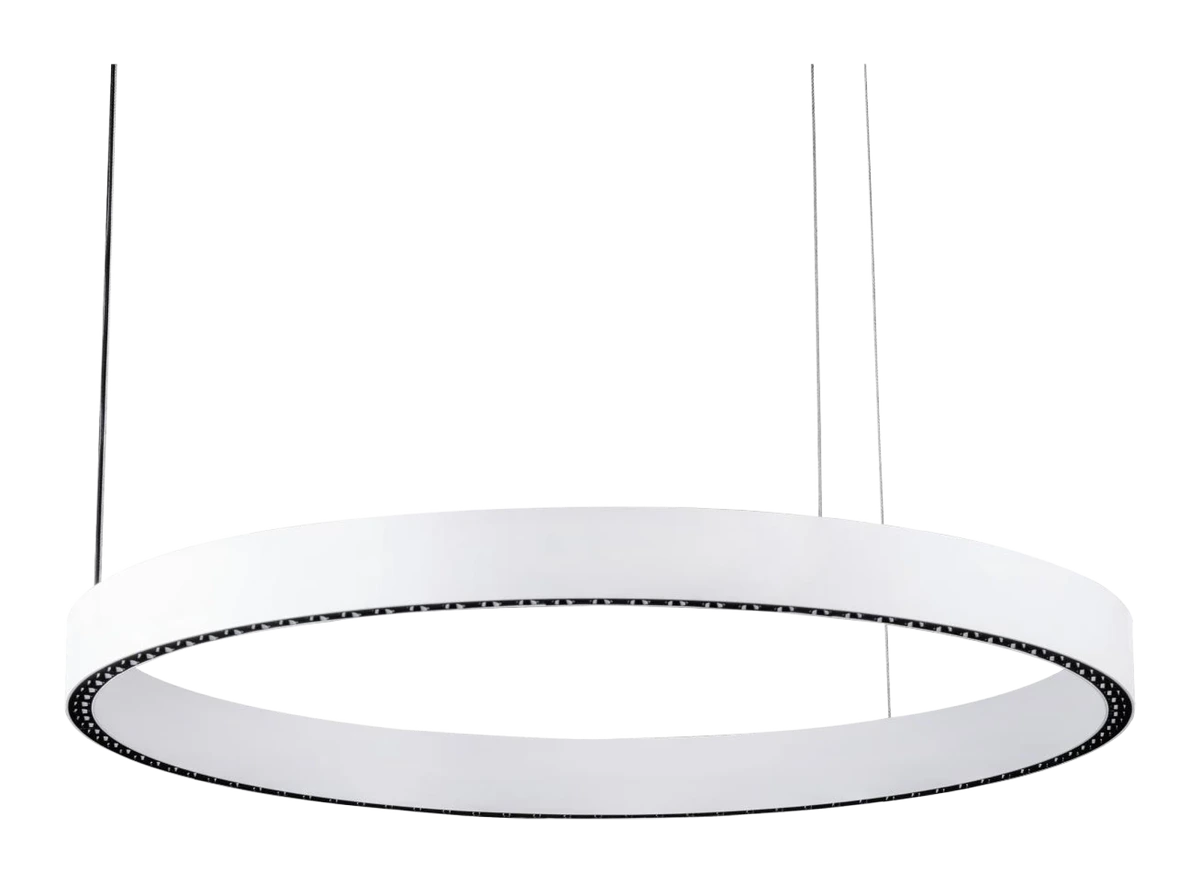

| PH0078Ø400 mm | 19 W | 97 CRI | 24 V DC | 1440 lm | Ø400 x H48 mm; suspension MAX 1900 mm | 50° | 2700, 3000, 4000 K | Ø76 mm |
| PH0079Ø600 mm | 27 W | 97 CRI | 24 V DC | 2160 lm | Ø600 x H48 mm; suspension MAX 1900 mm | 50° | 2700, 3000, 4000 K | Ø76 mm |
| PH0080Ø800 mm | 35 W | 97 CRI | 24 V DC | 2880 lm | Ø800 x H48 mm; suspension MAX 1900 mm | 50° | 2700, 3000, 4000 K | Ø76 mm |
- LED source
- Citizen
- Colour temperature
- 2700, 3000, 4000 K
- Beam angles
- 50°
- Mounting
- Suspended
- IP rating
- IP20
- Certifications
- CE
Photometry
PH0080. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.
- Power
- 35 W
- Luminous flux
- 2,880 lm
- Efficacy
- 82 lm/W
- Peak intensity
- 3,493 cd
- Field angle (10%)
- 91.1°
- At 3 m
- 388 lx, Ø2.80 m
