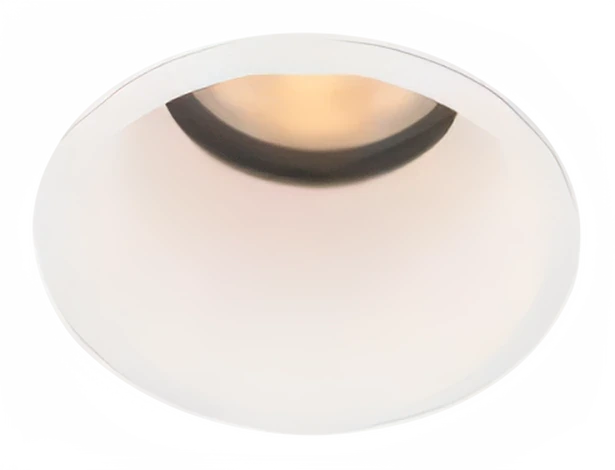

Moon Outdoor DL1233

Name: Moon Outdoor DL1233
Brand: DiaNoche
SKU: DL1233

Outdoor luminaire

Outdoor luminaire. 5, 7, 10, 13 or 18 W. Beam angles 15° to 60°, by model. 2700, 3000, 4000 K. IP65. 97 CRI.

Available finishes

White

5 models

DL12337 W
DL123910 W
DL124513 W
DL124518 W
DL1737Trimless, 5 W

Enquire about this product

DatasheetPDF, 547 KB

Photometric filesIES and LDT, 22 versions, measured and calculated

DL12397 W, 3000 K, 36°, measuredIES LDT

DL12397 W, 3000 K, 55°, measuredIES LDT

DL12337 W, 15°, calculatedIES LDT

DL12337 W, 24°, calculatedIES LDT

DL12337 W, 36°, calculatedIES LDT

DL12337 W, 55°, calculatedIES LDT

DL123910 W, 15°, calculatedIES LDT

DL123910 W, 24°, calculatedIES LDT

DL123910 W, 36°, calculatedIES LDT

DL123910 W, 55°, calculatedIES LDT

DL124513 W, 15°, calculatedIES LDT

DL124513 W, 24°, calculatedIES LDT

DL124513 W, 36°, calculatedIES LDT

DL124513 W, 55°, calculatedIES LDT

DL124518 W, 15°, calculatedIES LDT

DL124518 W, 24°, calculatedIES LDT

DL124518 W, 36°, calculatedIES LDT

DL124518 W, 55°, calculatedIES LDT

DL17375 W, 15°, calculatedIES LDT

DL17375 W, 24°, calculatedIES LDT

DL17375 W, 36°, calculatedIES LDT

DL17375 W, 60°, calculatedIES LDT

Measured files come from goniophotometer tests in the laboratory; each file gives the test date. Calculated files are built from the catalogue photometric data, its illuminance table or rated luminous flux, with the beam angle. Spill light is not modelled.

Technical specifications

Code	Watt	CRI	Voltage	Flux	Size	Beam	CCT	Cut-out	Notes
DL1233	7 W	97 CRI	max 19 V	630 lm	Ø50 x H84 mm	15° 24° 36° 55°	2700, 3000, 4000 K	Ø45 mm	350 mA
DL1239	10 W	97 CRI	max 19 V	960 lm	Ø65 x H95 mm	15° 24° 36° 55°	2700, 3000, 4000 K	Ø60 mm	500 mA
DL1245	13 W	97 CRI	max 37 V	1170 lm	Ø80 x H105 mm	15° 24° 36° 55°	2700, 3000, 4000 K	Ø70 mm	350 / 500 mA
DL1245	18 W	97 CRI	max 37 V	1800 lm	Ø80 x H105 mm	15° 24° 36° 55°	2700, 3000, 4000 K	Ø70 mm	500 mA
DL1737Trimless	5 W	97 CRI	max 19 V	450 lm	Ø34 x H63 mm	15° 24° 36° 60°	2700, 3000, 4000 K	Ø45 mm	250 mA

LED source: Citizen
Colour temperature: 2700, 3000, 4000 K
Beam angles: 15°, 24°, 36°, 55°, 60°
Mounting: Recessed, Wall
IP rating: IP65
Certifications: CE

Photometry

DL1245. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.
