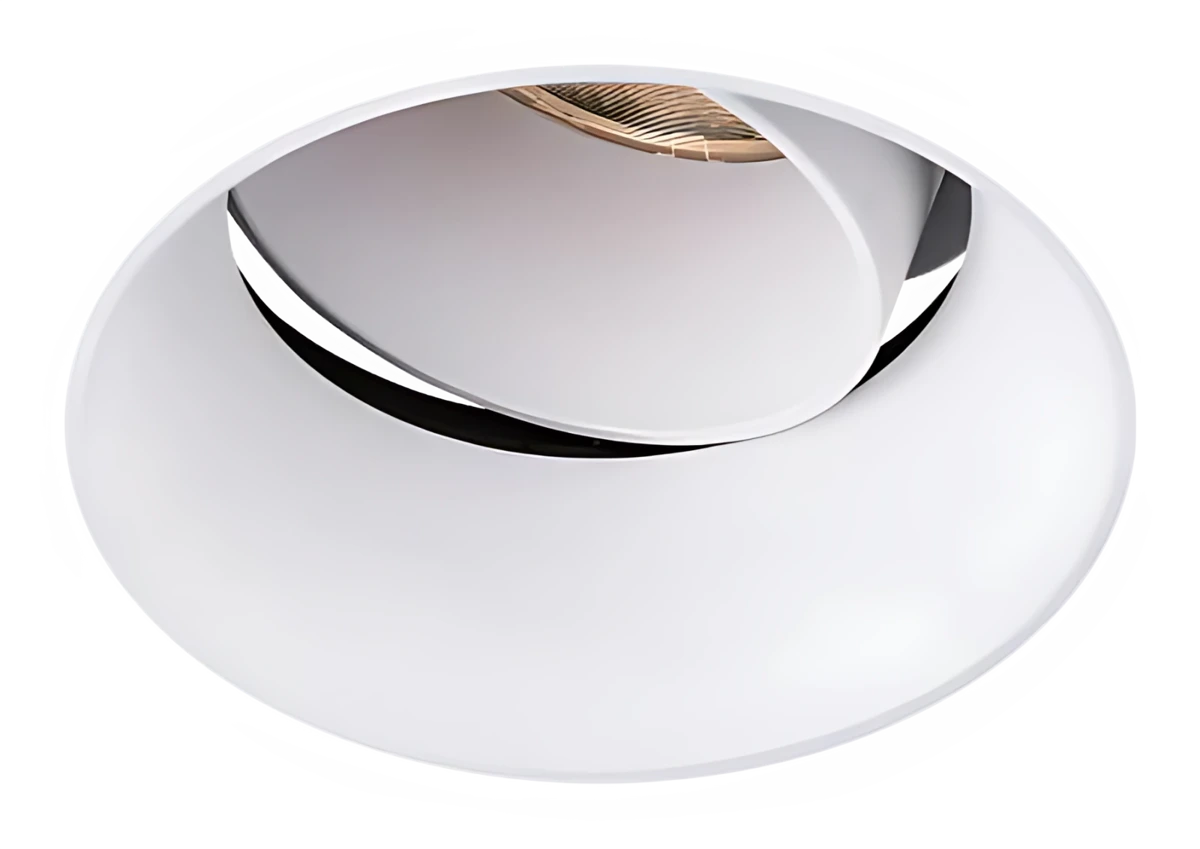

Moon DL1756

Name: Moon DL1756
Brand: DiaNoche
SKU: DL1756

Recessed spotlight

Recessed spotlight. 18 or 26 W. Four beam angles, 15° to 50°. 2700, 3000, 4000 K. 97 CRI.

Available finishes

White

3 models

DL175618 W
DL175526 W
DL175726 W

Enquire about this product

DatasheetPDF, 474 KB

Photometric filesIES and LDT, 12 versions, measured and calculated

DL175618 W, 2700 K, 36°, measuredIES LDT

DL175618 W, 15°, calculatedIES LDT

DL175618 W, 24°, calculatedIES LDT

DL175618 W, 50°, calculatedIES LDT

DL175526 W, 15°, calculatedIES LDT

DL175526 W, 24°, calculatedIES LDT

DL175526 W, 36°, calculatedIES LDT

DL175526 W, 50°, calculatedIES LDT

DL175726 W, 15°, calculatedIES LDT

DL175726 W, 24°, calculatedIES LDT

DL175726 W, 36°, calculatedIES LDT

DL175726 W, 50°, calculatedIES LDT

Measured files come from goniophotometer tests in the laboratory; each file gives the test date. Calculated files are built from the catalogue photometric data, its illuminance table or rated luminous flux, with the beam angle. Spill light is not modelled.

Technical specifications

Code	Watt	CRI	Voltage	Flux	Size	Beam	CCT	Cut-out	Notes
DL1756	18 W	97 CRI	max 37 V	1800 lm	Ø87 × 126 mm; trimless flange 150 × 95 mm	15° 24° 36° 50°	2700, 3000, 4000 K	Ø98 mm	500 mA
DL1755	26 W	97 CRI	max 37 V	2600 lm	Ø98 × 126 mm	15° 24° 36° 50°	2700, 3000, 4000 K	Ø90 mm	700 mA
DL1757	26 W	97 CRI	max 37 V	2600 lm	Ø87 × 126 mm; trimless flange 150 × 95 mm	15° 24° 36° 50°	2700, 3000, 4000 K	Ø98 mm	700 mA

LED source: Citizen
Colour temperature: 2700, 3000, 4000 K
Beam angles: 15°, 24°, 36°, 50°
Mounting: Recessed
IP rating: IP20
Certifications: CE

Photometry

DL1756. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: measured with a goniophotometer where marked, otherwise calculated from catalogue data.
