Technical specifications
| Code | Watt | CRI | Voltage | Flux | Size | Beam | CCT | Cut-out | Notes |
|---|---|---|---|---|---|---|---|---|---|

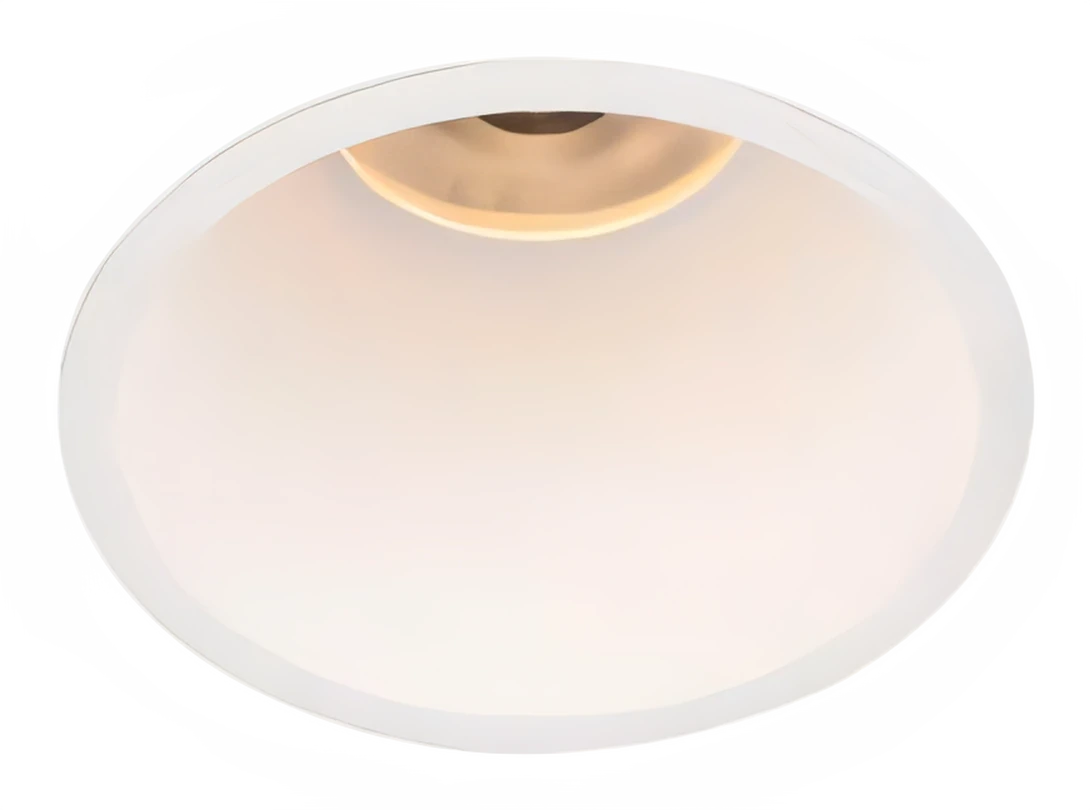

| DL1529 | — | 97 CRI | max 19 V | 630 / 960 lm | Ø89 × 77 mm | 15° 24° 36° 55° | 2700, 3000, 4000 K | Ø83 mm | 350 / 500 mA |
| DL1002 | 10 W | 97 CRI | max 19 V | 960 lm | Ø89 × 103 mm | 15° 24° 36° 55° | 2700, 3000, 4000 K | Ø83 mm | 500 mA |
| DL1068 | 13 W | 97 CRI | max 37 V | 1180 lm | Ø89 × 103 mm | 15° 24° 36° 55° | 2700, 3000, 4000 K | Ø83 mm | 350 mA |
| DL1463 | 18 W | 97 CRI | max 37 V | 1620 lm | Ø89 × 121 mm | 15° 24° 36° 50° | 2700, 3000, 4000 K | Ø83 mm | 500 mA |
| DL1464 | 26 W | 97 CRI | max 37 V | 2600 lm | Ø89 × 121 mm | 15° 24° 36° 50° | 2700, 3000, 4000 K | Ø83 mm | 700 mA |
- LED source
- Citizen
- Colour temperature
- 2700, 3000, 4000 K
- Beam angles
- 15°, 24°, 36°, 50°, 55°
- Mounting
- Recessed
- IP rating
- IP54
- Certifications
- CE
Photometry
DL1464. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.
- Power
- 26 W
- Luminous flux
- 2,600 lm
- Efficacy
- 100 lm/W
- Peak intensity
- 33,617 cd
- Field angle (10%)
- 27.3°
- At 3 m
- 3,735 lx, Ø0.79 m
- Power
- 26 W
- Luminous flux
- 2,600 lm
- Efficacy
- 100 lm/W
- Peak intensity
- 13,216 cd
- Field angle (10%)
- 43.7°
- At 3 m
- 1,468 lx, Ø1.28 m
- Power
- 26 W
- Luminous flux
- 2,600 lm
- Efficacy
- 100 lm/W
- Peak intensity
- 5,952 cd
- Field angle (10%)
- 65.6°
- At 3 m
- 661 lx, Ø1.95 m
- Power
- 26 W
- Luminous flux
- 2,600 lm
- Efficacy
- 100 lm/W
- Peak intensity
- 3,154 cd
- Field angle (10%)
- 91.1°
- At 3 m
- 350 lx, Ø2.80 m
