Technical specifications
| Code | Watt | CRI | Voltage | Flux | Size | Beam | CCT | Cut-out | Notes |
|---|---|---|---|---|---|---|---|---|---|

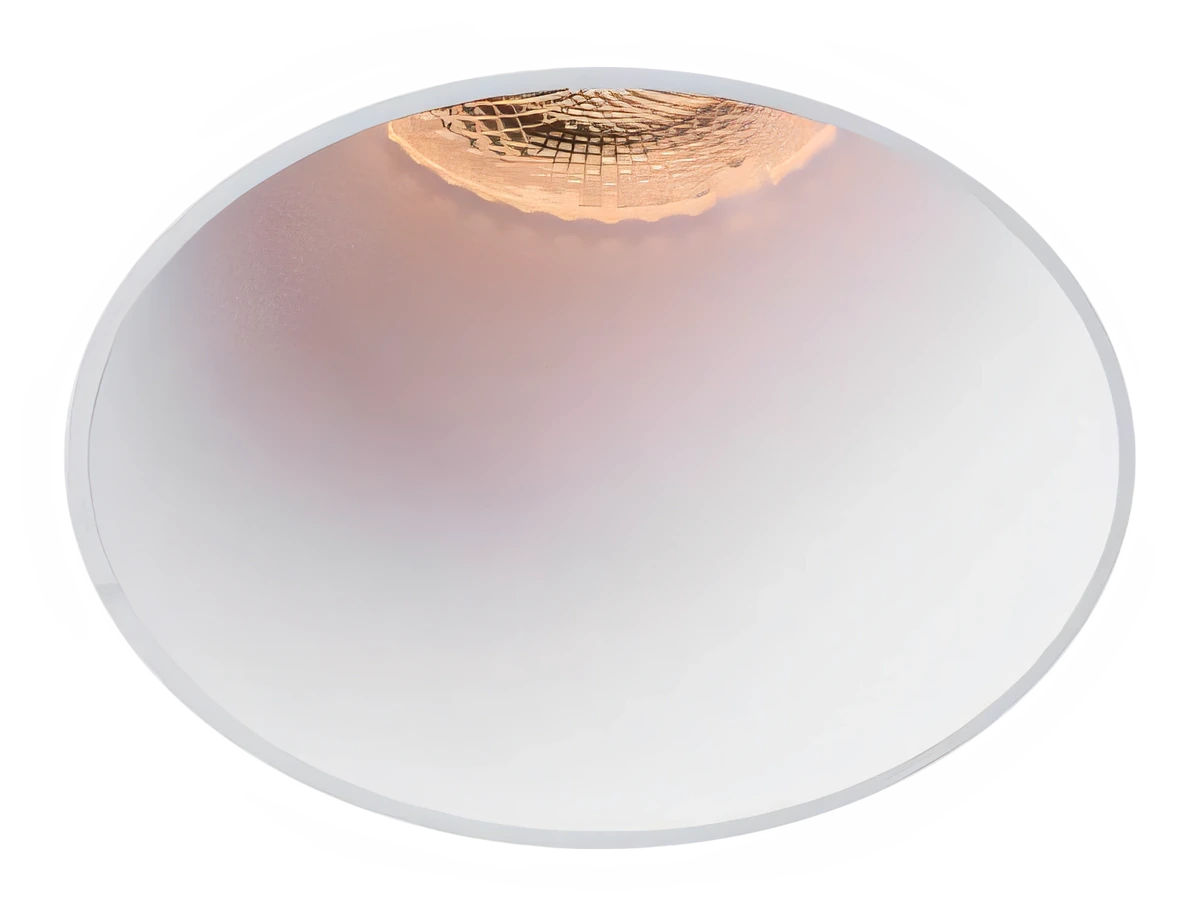

| DL1519 | 7 W | 97 CRI | max 19 V | 630 lm | Ø55 x H65 mm; flange plate 113 × 64 mm (as dimensioned) | 15° 24° 35° 60° | 2700, 3000, 4000 K | Ø68 mm | 350 / 500 mA |
| DL1519 | 10 W | 97 CRI | max 19 V | 960 lm | Ø55 x H65 mm; flange plate 113 × 64 mm (as dimensioned) | 15° 24° 35° 60° | 2700, 3000, 4000 K | Ø68 mm | 500 mA |
| DL1521 | 10 W | 97 CRI | max 19 V | 960 lm | Ø68 x H68 mm; flange plate 125 × 75 mm (as dimensioned) | 15° 24° 35° 60° | 2700, 3000, 4000 K | Ø76 mm | 500 mA |
| DL1543 | 13 W | 97 CRI | max 37 V | 1180 lm | Ø68 x H68 mm; flange plate 125 × 75 mm (as dimensioned) | 15° 24° 35° 60° | 2700, 3000, 4000 K | Ø76 mm | 350 mA |
- LED source
- Citizen
- Colour temperature
- 2700, 3000, 4000 K
- Beam angles
- 15°, 24°, 35°, 60°
- Mounting
- Recessed
- IP rating
- IP44
- Certifications
- CE
Photometry
DL1543. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.
- Power
- 13 W
- Luminous flux
- 1,180 lm
- Efficacy
- 91 lm/W
- Peak intensity
- 15,257 cd
- Field angle (10%)
- 27.3°
- At 3 m
- 1,695 lx, Ø0.79 m
- Power
- 13 W
- Luminous flux
- 1,180 lm
- Efficacy
- 91 lm/W
- Peak intensity
- 5,998 cd
- Field angle (10%)
- 43.7°
- At 3 m
- 666 lx, Ø1.28 m
- Power
- 13 W
- Luminous flux
- 1,180 lm
- Efficacy
- 91 lm/W
- Peak intensity
- 2,854 cd
- Field angle (10%)
- 63.8°
- At 3 m
- 317 lx, Ø1.89 m
- Power
- 13 W
- Luminous flux
- 1,180 lm
- Efficacy
- 91 lm/W
- Peak intensity
- 1,015 cd
- Field angle (10%)
- 109.4°
- At 3 m
- 113 lx, Ø3.46 m
