Technical specifications
| Code | Watt | CRI | Voltage | Flux | Size | Beam | CCT | Cut-out | Notes |
|---|---|---|---|---|---|---|---|---|---|

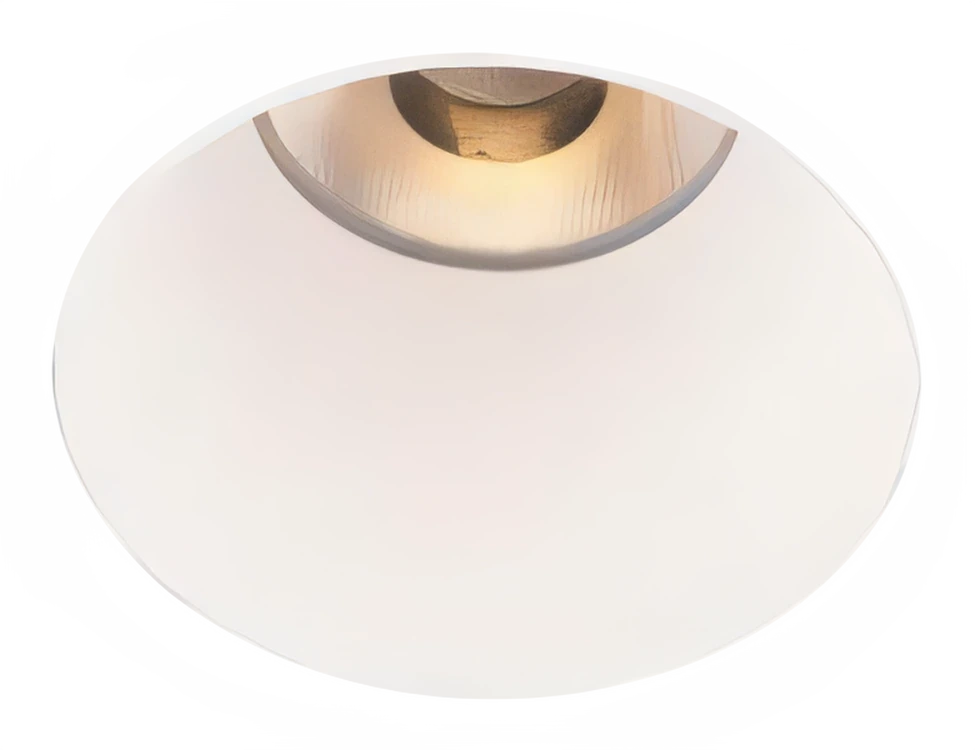

| DL1120 | 10 W | 97 CRI | max 19 V | 960 lm | Ø68 x H94 mm; flange plate 125 × 75 mm (as dimensioned) | 15° 24° 36° 55° | 2700, 3000, 4000 K | Ø76 mm | 500 mA |
| DL1062 | 13 W | 97 CRI | max 37 V | 1180 lm | — | 15° 24° 36° 55° | 2700, 3000, 4000 K | Ø68 mm | 350 mA |
| DL1000 | 13 W | 97 CRI | max 37 V | 1180 lm | — | 15° 24° 36° 55° | 2700, 3000, 4000 K | Ø76 mm | 350 mA |
- LED source
- Citizen
- Colour temperature
- 2700, 3000, 4000 K
- Beam angles
- 15°, 24°, 36°, 55°
- Mounting
- Recessed
- IP rating
- IP54
- Certifications
- CE
Photometry
DL1062. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.
- Power
- 13 W
- Luminous flux
- 1,180 lm
- Efficacy
- 91 lm/W
- Peak intensity
- 15,257 cd
- Field angle (10%)
- 27.3°
- At 3 m
- 1,695 lx, Ø0.79 m
- Power
- 13 W
- Luminous flux
- 1,180 lm
- Efficacy
- 91 lm/W
- Peak intensity
- 5,998 cd
- Field angle (10%)
- 43.7°
- At 3 m
- 666 lx, Ø1.28 m
- Power
- 13 W
- Luminous flux
- 1,180 lm
- Efficacy
- 91 lm/W
- Peak intensity
- 2,701 cd
- Field angle (10%)
- 65.6°
- At 3 m
- 300 lx, Ø1.95 m
- Power
- 13 W
- Luminous flux
- 1,180 lm
- Efficacy
- 91 lm/W
- Peak intensity
- 1,195 cd
- Field angle (10%)
- 100.2°
- At 3 m
- 133 lx, Ø3.12 m
