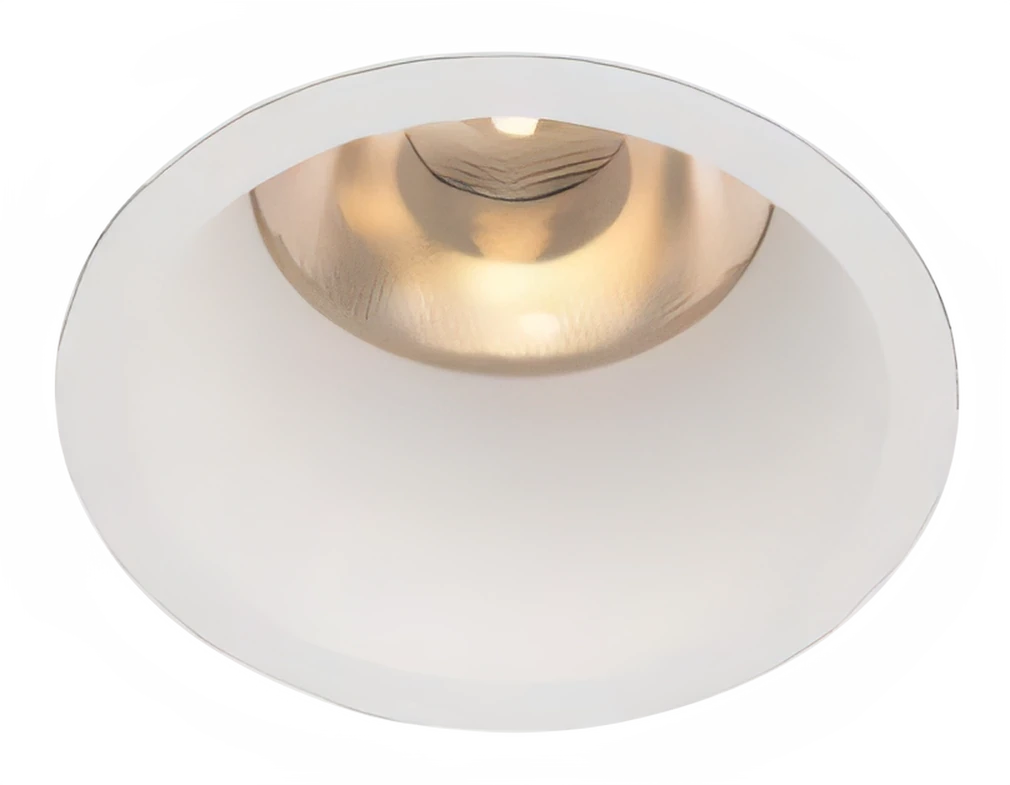

Moon DL1026

Name: Moon DL1026
Brand: DiaNoche
SKU: DL1026

Recessed spotlight

Recessed spotlight. 10 or 13 W. Four beam angles, 15° to 55°. 2700, 3000, 4000 K. 97 CRI.

Available finishes

White

2 models

DL102610 W
DL136913 W

Enquire about this product

DatasheetPDF, 336 KB

Photometric filesIES and LDT, 8 versions, measured and calculated

DL10269 W, 3000 K, 55°, measuredIES LDT

DL102610 W, 15°, calculatedIES LDT

DL102610 W, 24°, calculatedIES LDT

DL102610 W, 36°, calculatedIES LDT

DL136913 W, 15°, calculatedIES LDT

DL136913 W, 24°, calculatedIES LDT

DL136913 W, 36°, calculatedIES LDT

DL136913 W, 55°, calculatedIES LDT

Measured files come from goniophotometer tests in the laboratory; each file gives the test date. Calculated files are built from the catalogue photometric data, its illuminance table or rated luminous flux, with the beam angle. Spill light is not modelled.

Technical specifications

Code	Watt	CRI	Voltage	Flux	Size	Beam	CCT	Cut-out	Notes
DL1026	10 W	97 CRI	max 19 V	960 lm	Ø65 x H89 mm	15° 24° 36° 55°	2700, 3000, 4000 K	Ø60 mm	500 mA
DL1369	13 W	97 CRI	max 37 V	1180 lm	Ø65 x H89 mm	15° 24° 36° 55°	2700, 3000, 4000 K	Ø60 mm	350 mA

LED source: Citizen
Colour temperature: 2700, 3000, 4000 K
Beam angles: 15°, 24°, 36°, 55°
Mounting: Recessed
IP rating: IP20
Certifications: CE

Photometry

DL1026. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: measured with a goniophotometer where marked, otherwise calculated from catalogue data.
