Technical specifications
| Code | Watt | CRI | Voltage | Flux | Size | Beam | CCT | Cut-out | Notes |
|---|---|---|---|---|---|---|---|---|---|

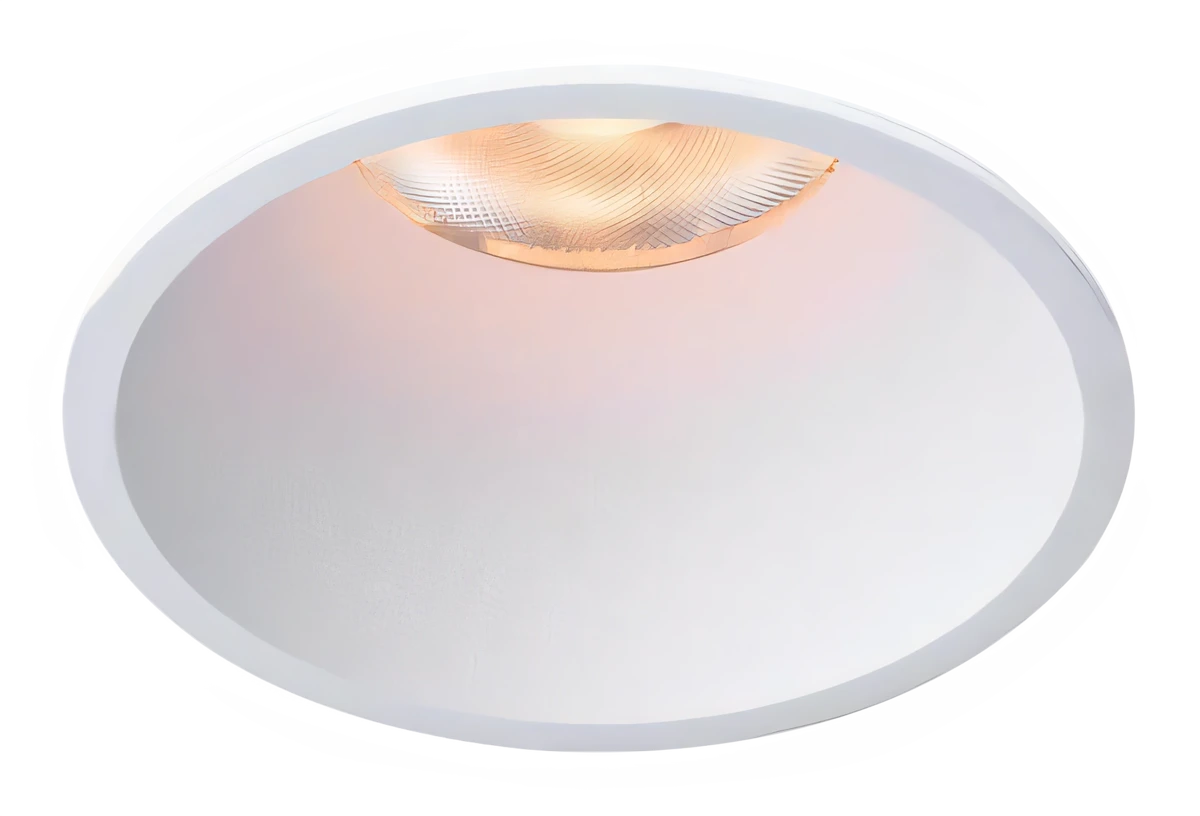

| DL0997 | 10 W | 97 CRI | max 19 V | 960 lm | Ø80 × 79 mm | 15° 24° 36° 55° | 2700, 3000, 4000 K | Ø76 mm | 500 mA |
- LED source
- Citizen
- Colour temperature
- 2700, 3000, 4000 K
- Beam angles
- 15°, 24°, 36°, 55°
- Mounting
- Recessed
- IP rating
- IP54
- Certifications
- CE
Photometry
DL0997. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.
- Power
- 10 W
- Luminous flux
- 960 lm
- Efficacy
- 96 lm/W
- Peak intensity
- 12,412 cd
- Field angle (10%)
- 27.3°
- At 3 m
- 1,379 lx, Ø0.79 m
- Power
- 10 W
- Luminous flux
- 960 lm
- Efficacy
- 96 lm/W
- Peak intensity
- 4,880 cd
- Field angle (10%)
- 43.7°
- At 3 m
- 542 lx, Ø1.28 m
- Power
- 10 W
- Luminous flux
- 960 lm
- Efficacy
- 96 lm/W
- Peak intensity
- 2,198 cd
- Field angle (10%)
- 65.6°
- At 3 m
- 244 lx, Ø1.95 m
- Power
- 10 W
- Luminous flux
- 960 lm
- Efficacy
- 96 lm/W
- Peak intensity
- 972 cd
- Field angle (10%)
- 100.2°
- At 3 m
- 108 lx, Ø3.12 m
