Mini2

Name: Mini2
Brand: DiaNoche
SKU: RE-MINI2-3

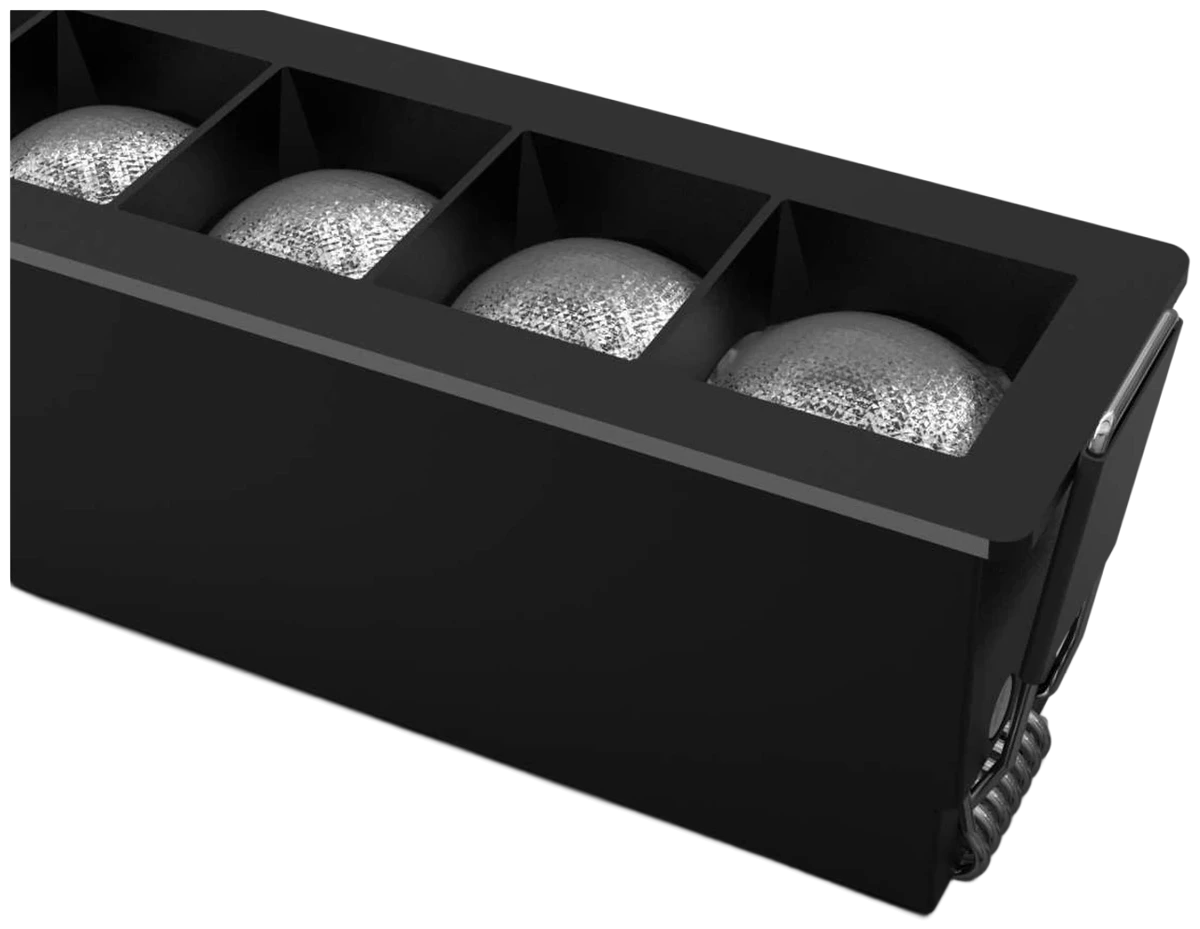

Linear luminaire

Linear luminaire. 5, 10 or 15 W. Four beam angles, 20° to 80°. 2700, 3000, 4000 K. 97 CRI.

Finish: Black

3 models

RE-MINI2-35 W
RE-MINI2-610 W
RE-MINI2-915 W

Enquire about this product

DatasheetPDF, 487 KB

Photometric filesIES and LDT, 12 versions, estimated

RE-MINI2-35 W, 20°IES LDT

RE-MINI2-35 W, 40°IES LDT

RE-MINI2-35 W, 60°IES LDT

RE-MINI2-35 W, 80°IES LDT

RE-MINI2-610 W, 20°IES LDT

RE-MINI2-610 W, 40°IES LDT

RE-MINI2-610 W, 60°IES LDT

RE-MINI2-610 W, 80°IES LDT

RE-MINI2-915 W, 20°IES LDT

RE-MINI2-915 W, 40°IES LDT

RE-MINI2-915 W, 60°IES LDT

RE-MINI2-915 W, 80°IES LDT

Estimated files are derived from the rated wattage and the catalogue beam angle, not from laboratory measurement. Use them for early layouts and confirm final calculations with measured data.

Technical specifications

Code	Watt	CRI	Voltage	Size	Beam	CCT	Cut-out

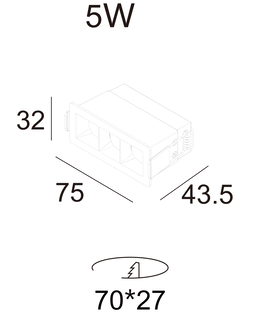

RE-MINI2-3	5 W	97 CRI	9 V	L75 x W32 x D43.5 mm	20° 40° 60° 80°	2700, 3000, 4000 K	Ø70 mm
RE-MINI2-6	10 W	97 CRI	18 V	L135 x W32 x D43.5 mm	20° 40° 60° 80°	2700, 3000, 4000 K	Ø130 mm
RE-MINI2-9	15 W	97 CRI	27 V	L195 x W32 x D43.5 mm	20° 40° 60° 80°	2700, 3000, 4000 K	Ø190 mm

LED source: Citizen
Colour temperature: 2700, 3000, 4000 K
Beam angles: 20°, 40°, 60°, 80°
Control: On/Off
Mounting: Recessed
IP rating: IP20
Note: 500 mA

Photometry

RE-MINI2-9. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: estimated from catalogue data, not measured.
