Technical specifications
| Code | Watt | CRI | Voltage | Size | Beam | CCT | Notes |
|---|---|---|---|---|---|---|---|

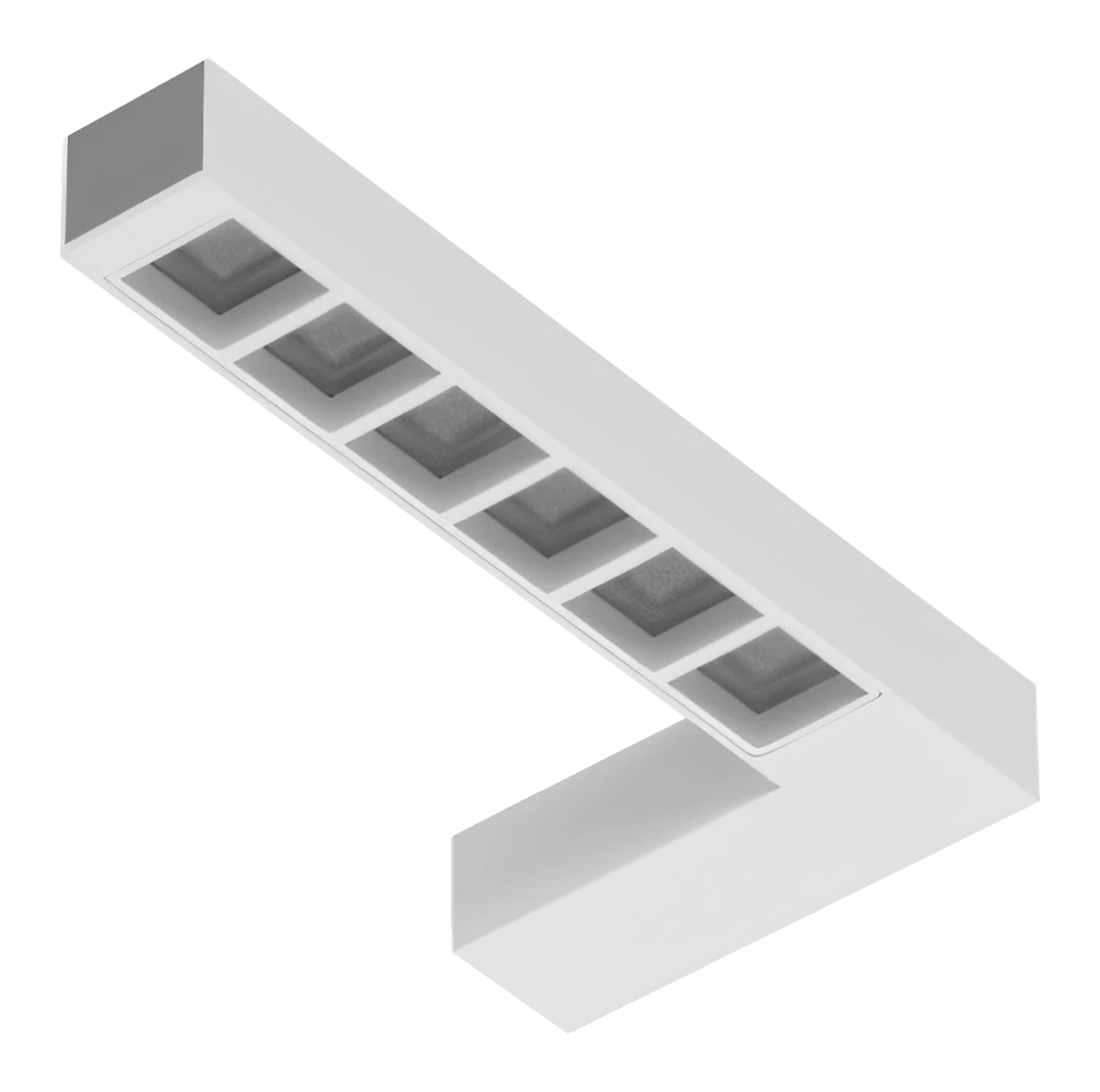

| SU-M8-1203 | 12 W | 97 CRI | 36 V | 310 × 105 × 36 mm | 65° 80° | 2700, 3000, 4000, 5000 K | 300 mA |
- LED source
- Citizen
- Colour temperature
- 2700, 3000, 4000, 5000 K
- Beam angles
- 65°, 80°
- Control
- On/Off, Triac
- Mounting
- Surface
- IP rating
- IP20
Photometry
SU-M8-1203. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: estimated from catalogue data, not measured.
- Power
- 12 W
- Luminous flux
- 720 lm
- Efficacy
- 60 lm/W
- Peak intensity
- 535 cd
- Field angle (10%)
- 118.5°
- At 3 m
- 59 lx, Ø3.82 m
- Power
- 12 W
- Luminous flux
- 720 lm
- Efficacy
- 60 lm/W
- Peak intensity
- 373 cd
- Field angle (10%)
- 145.8°
- At 3 m
- 41 lx, Ø5.04 m
